Clutch Switch: Description and Operation

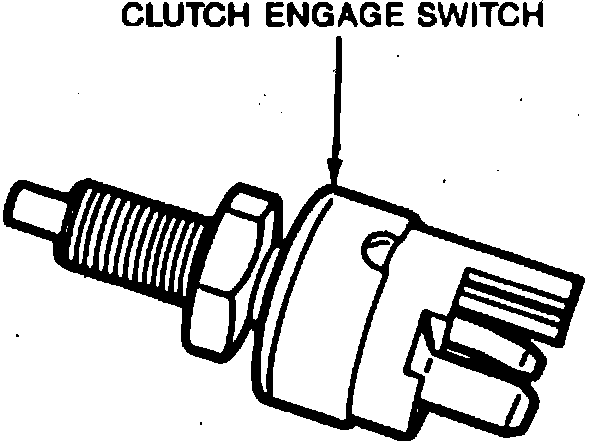

Fig. 4 Clutch engage switch. 1.3L FBC models:

The clutch engage switch (CES), Fig. 4, detects gear load conditions and sends a signal to the ECA. The ECA uses this information to control air/fuel ratio, fuel cut, idle speed and the shift indicator light. The CES is mounted at the clutch pedal.
