Operation CHARM
: Car repair manuals for everyone.
Home
>>
Ford
>>
1988
>>
Festiva L4-81 1.3L SOHC
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Starting System
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

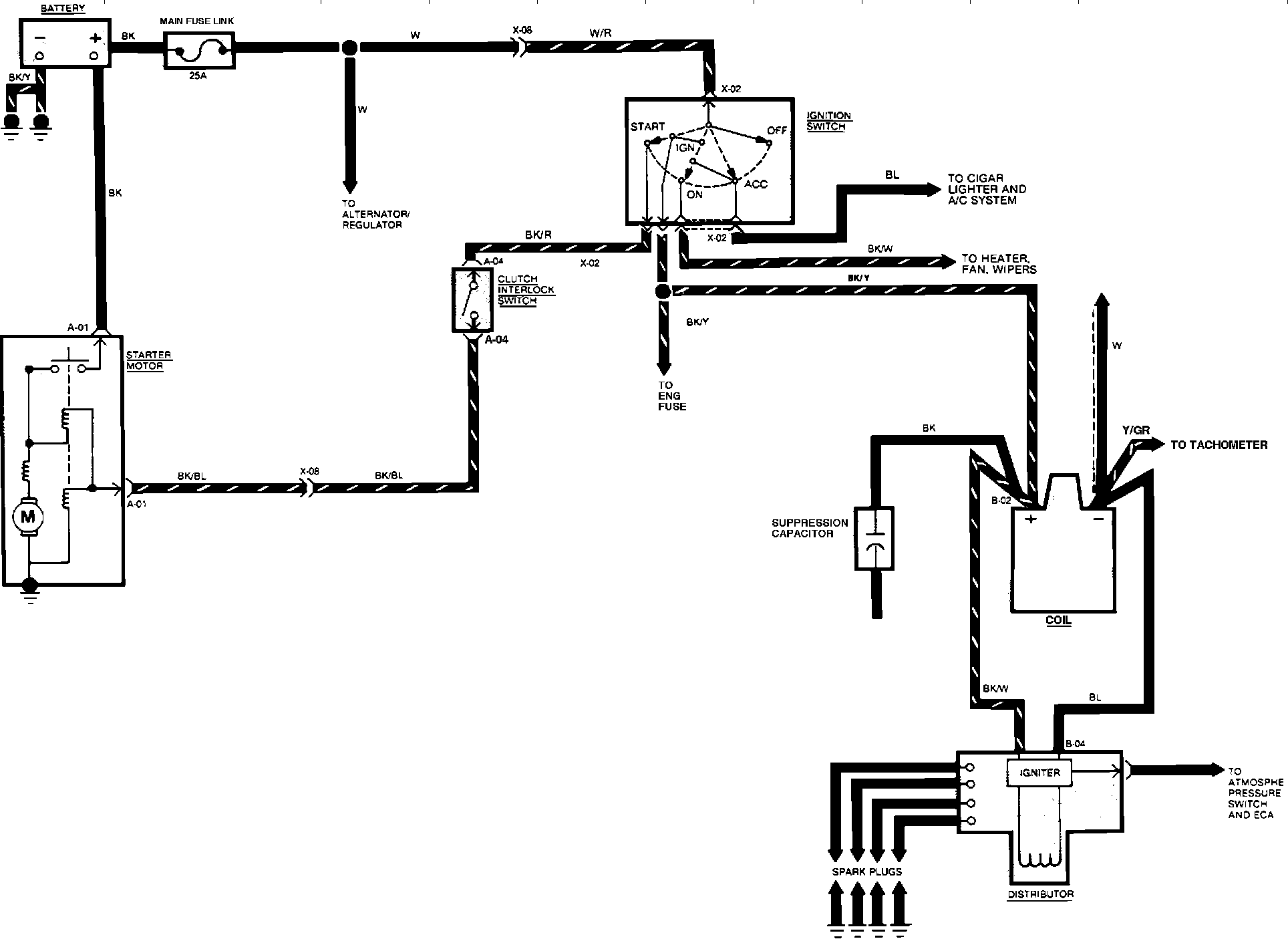

Starting & Ignition Wiring Circuit:
