Replacement Odometer Sticker - Manual Revision

Article No.
91-11B-17



June 14, 1991

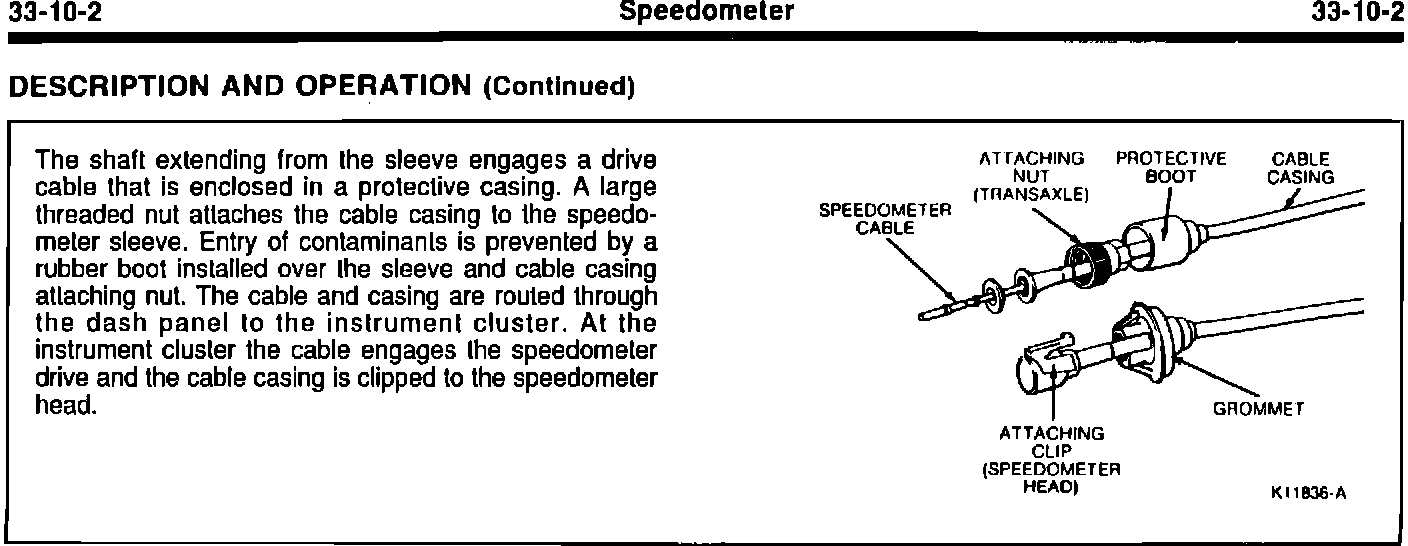

^ SHOP MANUAL - 1988 - PAGE 33-10-2 - REPLACEMENT ODOMETER STICKER INFORMATION PROVIDED

^ SHOP MANUAL - 1989 - PAGE 33-10-2 - REPLACEMENT ODOMETER STICKER INFORMATION PROVIDED

^ SHOP MANUAL - 1990 - PAGE 33-10-2 - REPLACEMENT ODOMETER STICKER INFORMATION PROVIDED

^ SHOP MANUAL - 1991 - PAGE 13-02-3 - REPLACEMENT ODOMETER STICKER INFORMATION PROVIDED



FORD:
1988-91 FESTIVA



ISSUE:
Reference to application of a Replacement Odometer Sticker when replacing a Speedometer Assembly was omitted from the following Shop Manuals:

^ 1988 Festiva Page 33-10-2

^ 1989 Festiva Page 33-10-2

^ 1990 Festiva Page 33-10-2

^ 1991 Festiva Page 13-02-3



ACTION:
Refer to the pages in this TSB article for the additional information.


OTHER APPLICABLE ARTICLES:
NONE

WARRANTY STATUS:
INFORMATION ONLY

OASIS CODES:
290000

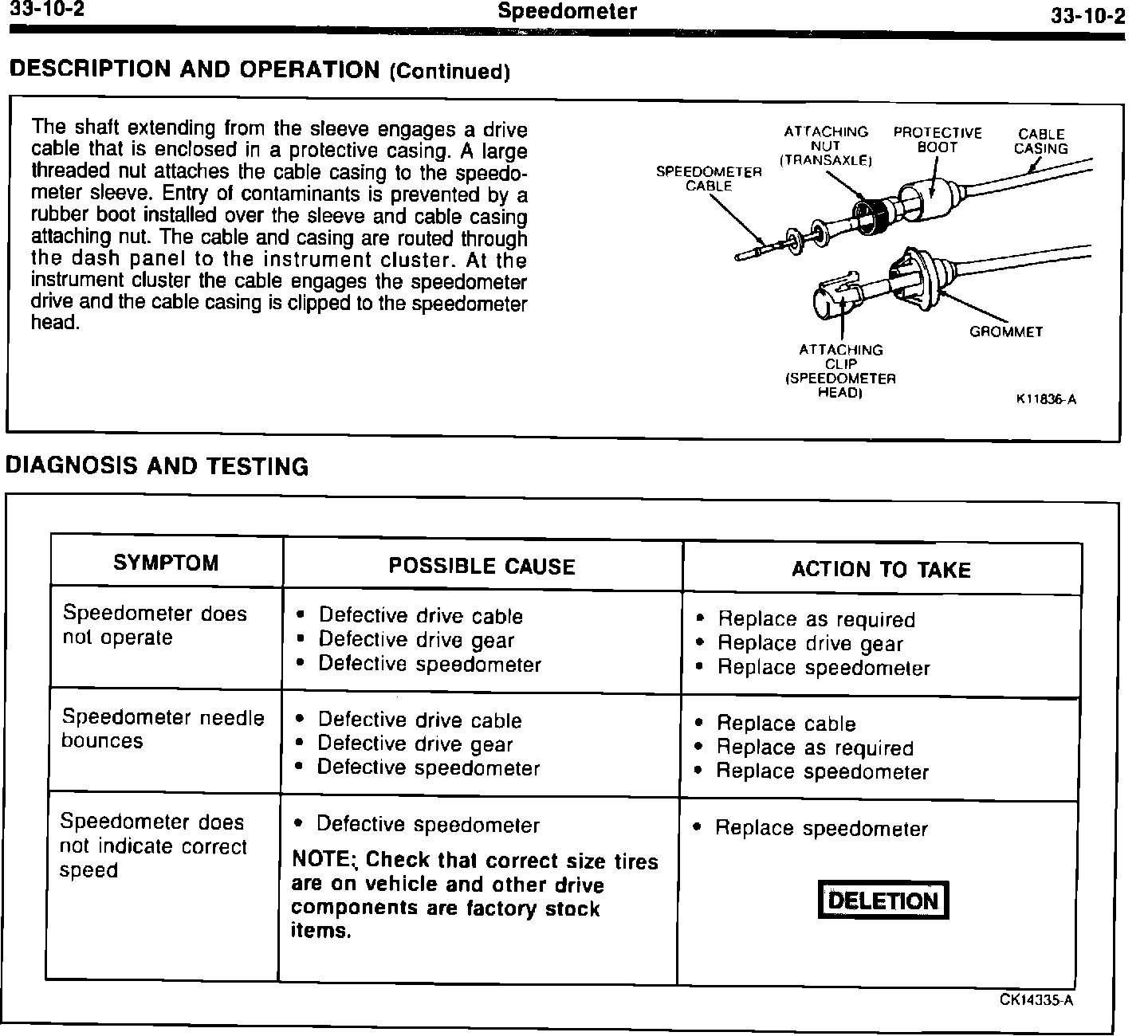

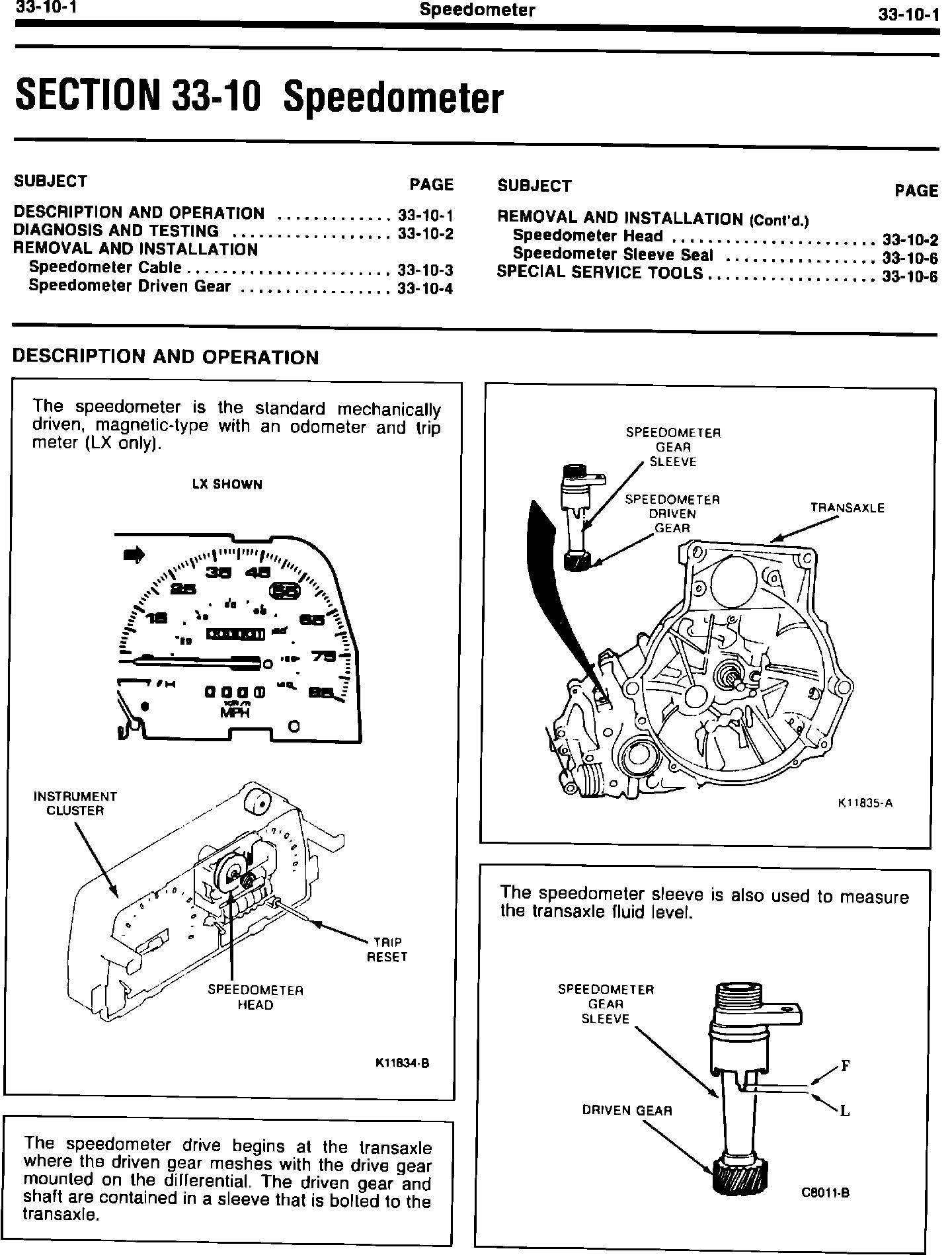

88/89 DESCRIPTION AND OPERATION DIAGNOSIS AND TESTING

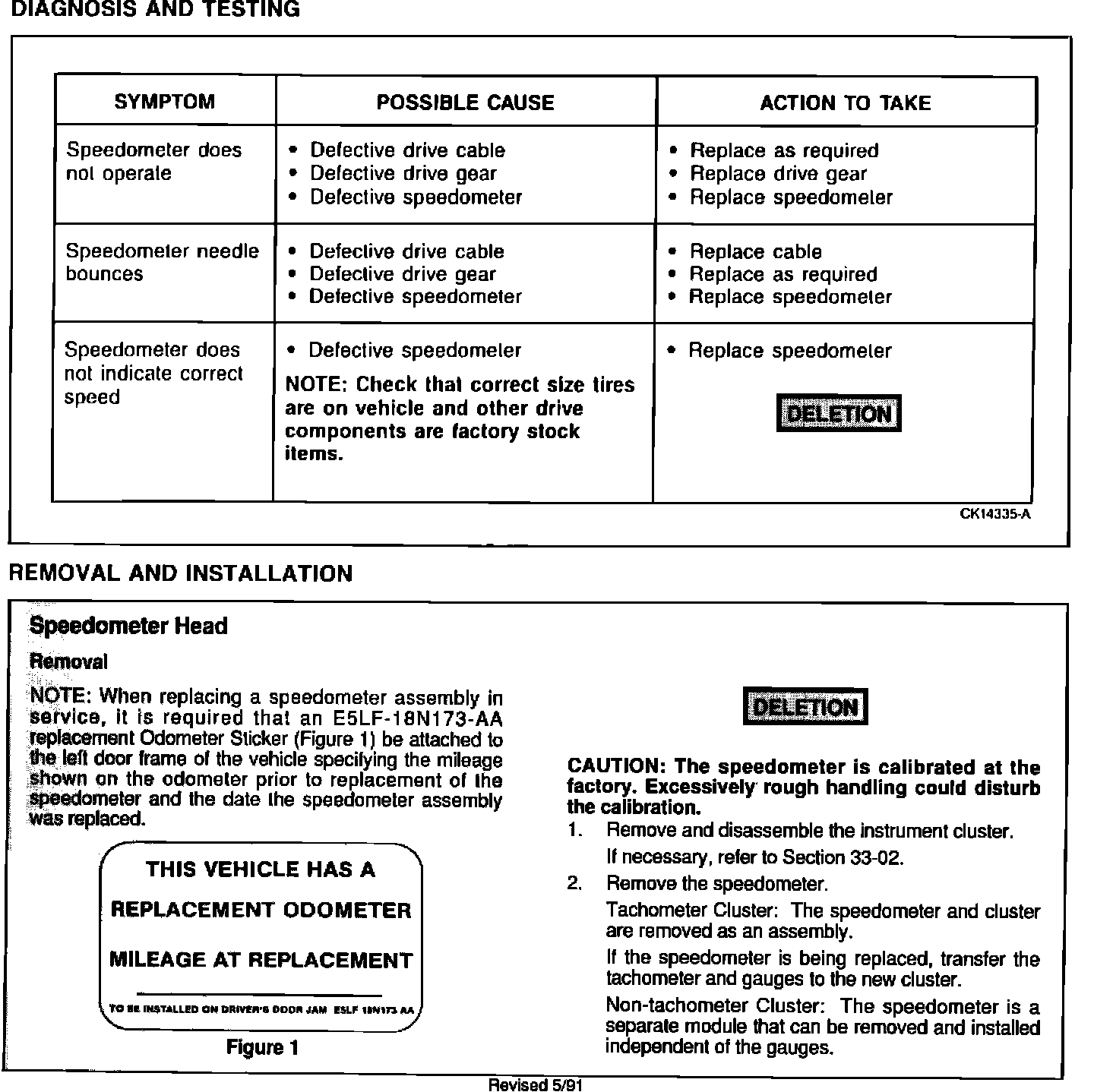

88/89 REMOVAL AND INSTALLATION








90/91 DIAGNOSIS AND TESTING, R&I, SPEEDO HEAD, AND TROUBLE SHOOTING CHART
