System Diagram
System Diagram

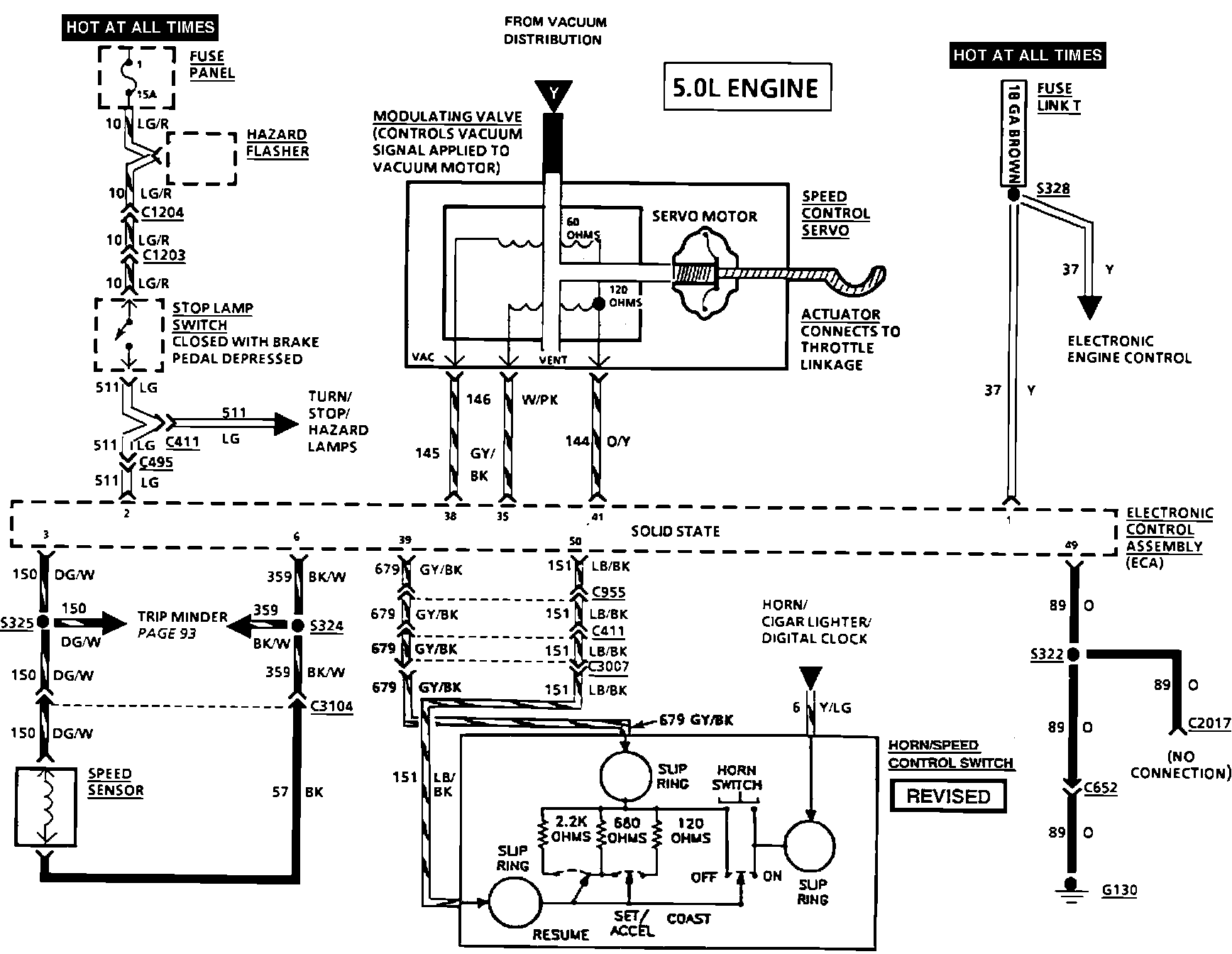

Speed Control System Vacuum & Wiring Circuit:
*** UPDATED BY TSB #9025B6 12-21-90
