Taurus L4-153 2.5L HSC
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Lighting and Horns
>>
Exterior Lighting Module
>>
With Diagnostic Warning
With Diagnostic Warning

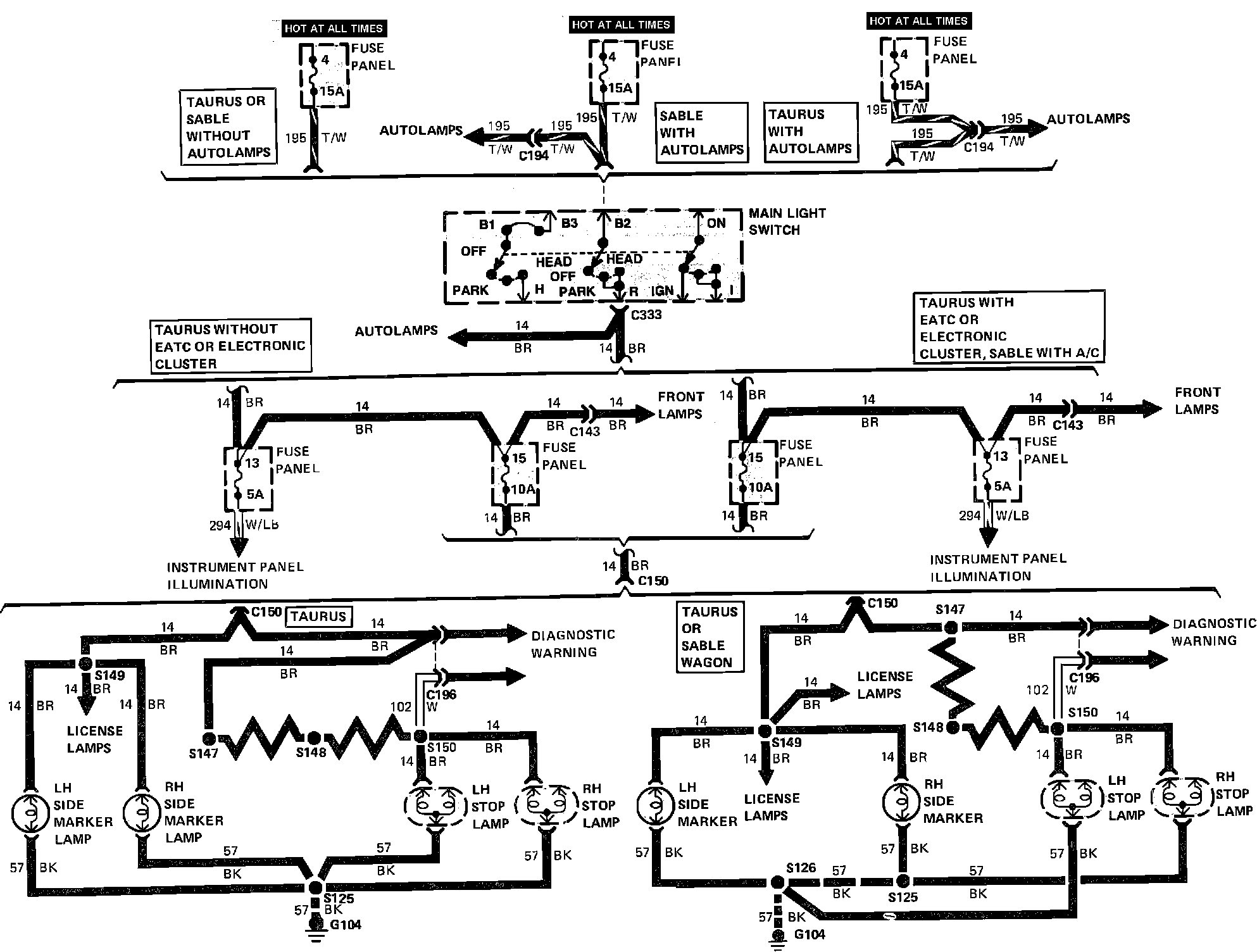

Taurus & Sable Wagon w/Diagnostic Warning:
