Operation CHARM
: Car repair manuals for everyone.
Home
>>
Ford
>>
1989
>>
Probe L4-133 2.2L SOHC Turbo
>>
Repair and Diagnosis
>>
Cruise Control
>>
Testing and Inspection
>>

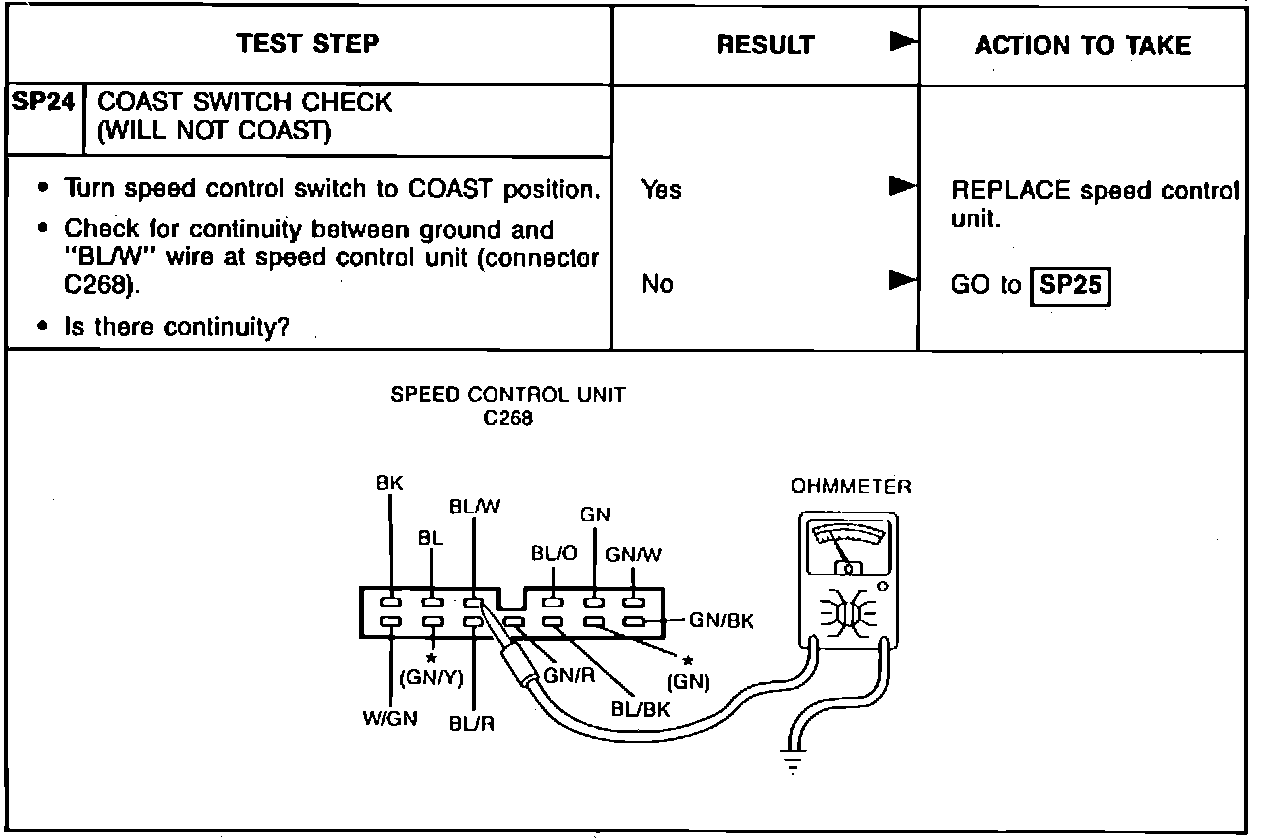

SP24: Coast Switch Check (Will Not Coast)
SP24: Coast Switch Check (Will Not Coast)
Fig. 77 Diagnosis and Testing (Part 24 Of 30):
