Probe L4-133 2.2L SOHC Turbo
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Management
>>
Emission Control Systems
>>
Emissions Maintenance Light
Emissions Maintenance Light

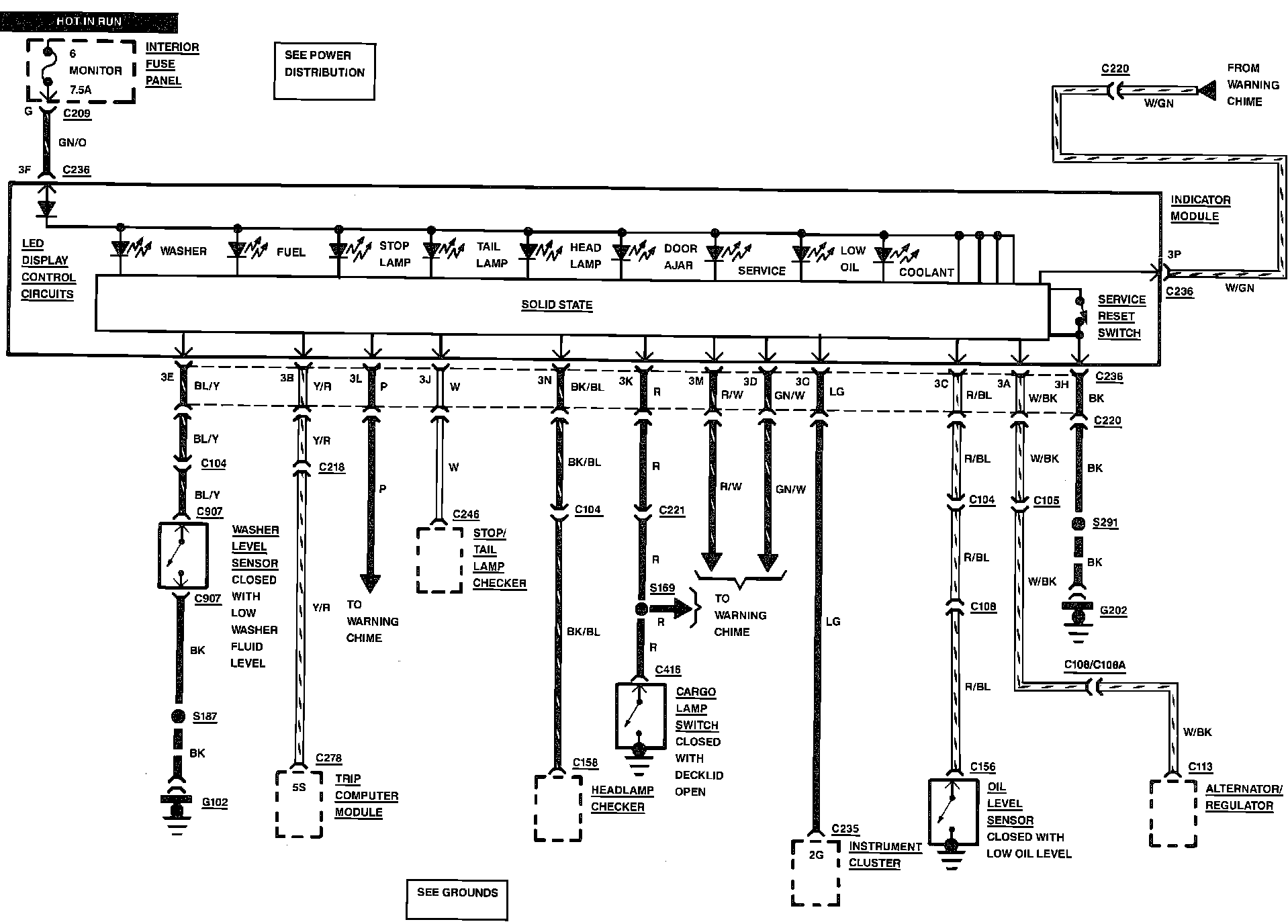

Vehicle Maintenance Monitor Wiring Circuit:
