Electronic Climate Control

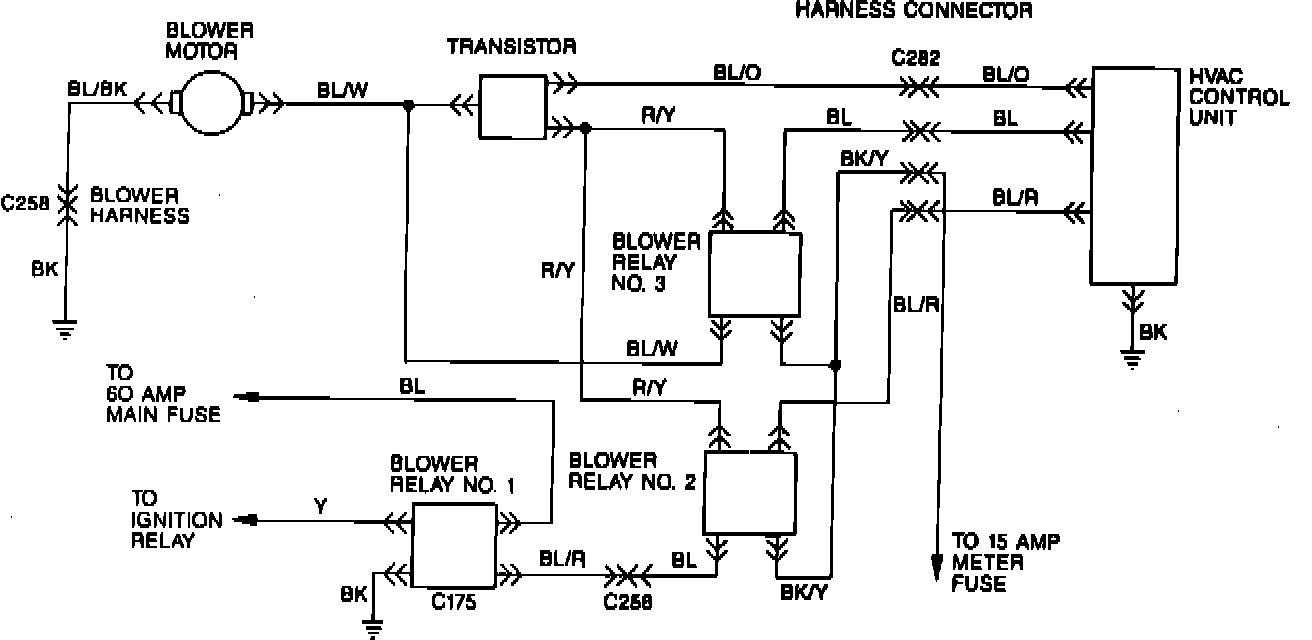

S�0A/C Heating Wiring Circuit.Electronically Controlled:

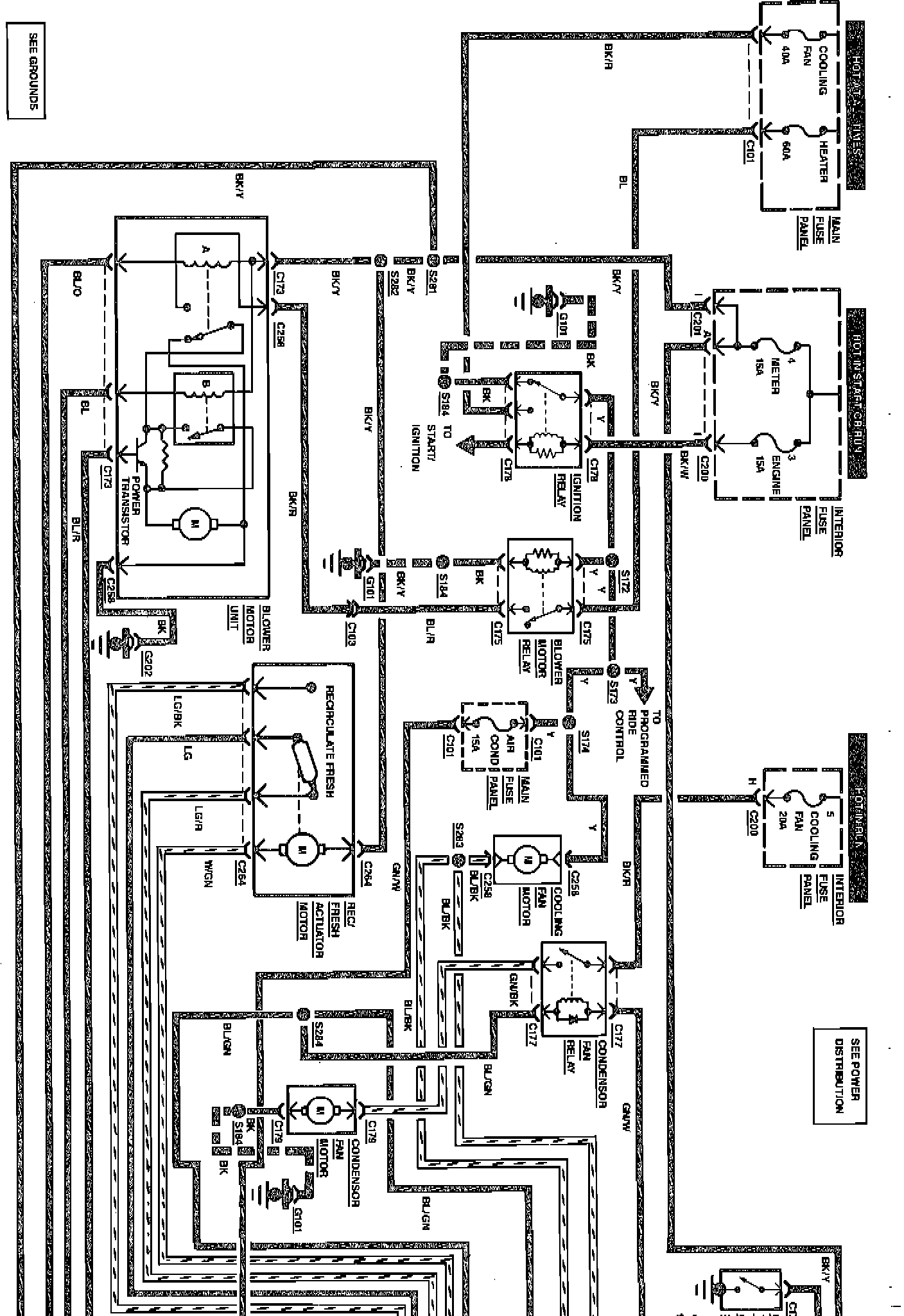

Fig. 20 Air Conditioning & Heater Wiring Circuit. W/Auto. Temp. Control System:
