SP27: Resume Signal Check (Will Not Resume)
SP27: Resume Signal Check (Will Not Resume)

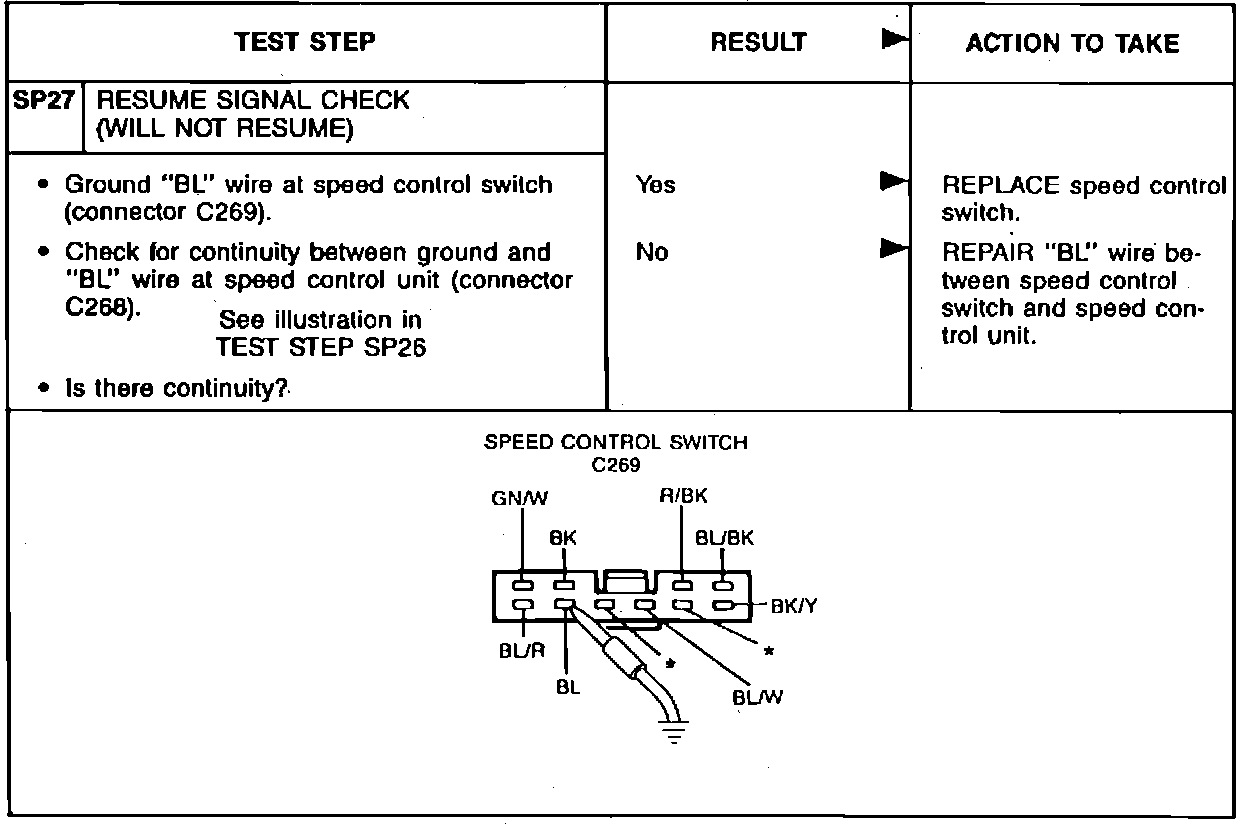

Fig. 77 Diagnosis and Testing (Part 27 Of 30):
