Front Seat Buckle

REMOVAL

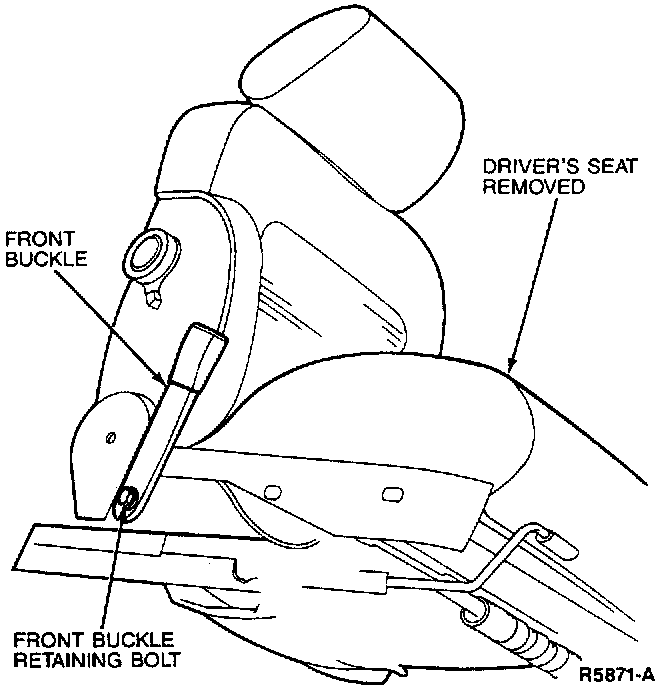

1. Remove the front seat to gain access to front buckle retaining bolt.
2. Remove bolt securing buckle assembly to the seat.
3. Remove front buckle from seat.

INSTALLATION
1. Position front buckle onto seat.
2. Install front buckle retaining bolt. Tighten bolt to 39-55 Nm (28-39 ft lbs).
3. Install front seat to floor.
