Thermostat Temperature Specifications - Revision

88ford13

Article No. 88-12-12
THERMOSTAT - TWO-STAGE - OPENING TEMPERATURE SPECIFICATIONS AND VALVE OPENING DIMENSIONS - SHOP MANUAL REVISION
FORD: 1989 PROBE


ISSUE: The two-stage engine coolant thermostat opening temperature specifications and dimensions are not published in the 1989 Probe Shop Manual, Section 27-01-4.

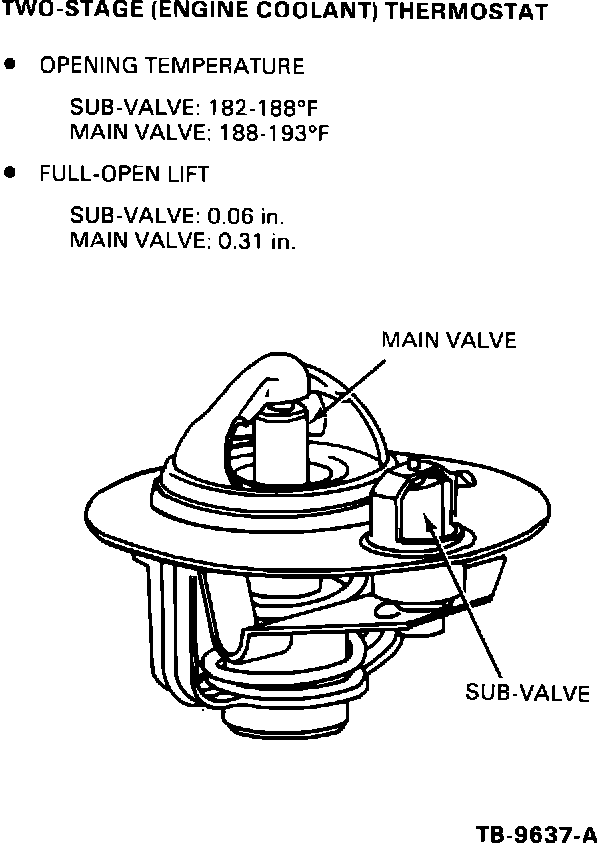

FIGURE 5:

ACTION: If service is required, use the information in Figure 5 which provides the opening temperature specifications of the sub-valve and main valve and the valve opening dimensions.
OTHER APPLICABLE ARTICLES: None
WARRANTY STATUS: "INFORMATION ONLY"
