Campaign - Transmission Harness Chafing
88ford10
TSB # 88S41
March, 1988
To: Selected Ford Dealers
SUBJECT: Dealer Service Action 88S41 - Automatic Transmission Floor Shift Console Wiring Harness
VEHICLES AFFECTED
Certain 1989 Probe cars with automatic transmissions built from Job #1 (January 4, 1988) through February 17, 1988. (Affected VIN's before number 102845).
REASON FOR SERVICE ACTION
Potential grounding of the transmission shift control wiring harness.
A metal edge in the gear selector mechanism may rub the wires of the transmission mode (NORM-POWER) switch. This could cause an electrical short which could cause one or more of the following:
- inoperable taillights.
- transmission locked in "Power" mode.
- transmission locked in "Manual Shift" mode.
- instrument cluster lights 'fixed' on full bright.
Inoperative taillights may make the car more difficult to see from the rear at night.
INVOICING RESTRICTIONS
Ford Division will not process new car invoices for authorized "pre-delivery" until this service action is completed (see Attachment I).
ATTACHMENTS Attachment I
- Administrative Information
- Delivery Restrictions
Attachment II
- Labor Allowances
- Parts Ordering Information
Attachment III
- Technical Information
ATTACHMENT I
DELIVERY RESTRICTIONS
Delivery of these cars - which do not have completely priced suggested retail price labels with federally approved EPA values - is not authorized until dealers have inspected and/or repaired the switch assembly. Release of invoice, COV, and retail price label for a specific unit will be delayed until the service action is reported to FPSD. Completely priced retail price labels containing the required fuel economy value data are required by federal law on all cars prior to delivery.
CARES
YOU MUST USE CARES TO DETERMINE IF A CAR IS ELIGIBLE FOR THIS SERVICE ACTION.
OASIS HAS NOT YET BEEN UPDATED TO ACCEPT 1989 MODEL YEAR VEHICLES.
PROMPTLY CORRECT
Affected vehicles on the enclosed list.
REIMBURSEMENT FORM 1864
Submit 1864 claims for all completed vehicles.
WARRANTY AND POLICY MANUAL
See Section 6.3 pages 5 through 8 of your Warranty and Policy Manual for claims preparation.
ATTACHMENT II
LABOR ALLOWANCES
Inspect Wire/Switch . 0.2 Hours Insert in Box "A"
on Form 1864
Inspect and Rotate
Switch . . . . . . . 0.3 Hours Insert in Box "B"
on Form 1864
Inspect and Replace
Switch . . . . . . . 0.4 Hours Insert in Box "B"
on Form 1864
Administrative Allowance . . 0.1 Hours
Note: Add 0.1 hours Administrative Allowance to the total repair time.
PARTS INFORMATION
Parts will not be direct shipped for this service action.
You must order your parts through your facing PDC. When ordering, indicate an "IVO" status. The correct part number to order is E92Z-7G550-A. This part number supercedes any Mazda or previous Ford part number.
- You must inspect wiring for cuts, bare wires, insulation damage, etc. before ordering new switch assembly.
- Most repairs will not require a new switch assembly!
ATTACHMENT III
REPAIR PROCEDURE
1989 PROBE AUTOMATIC TRANSMISSION CONSOLE WIRE HARNESS CHAFING
Step I. - Place gear selector in neutral.
- Pop off gear indicator plate bezel by squeezing inward at the rear.

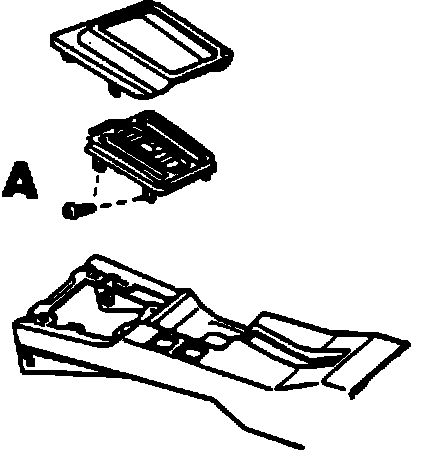

- Remove the four (4) mounting screws at the gear indicator plate, Point A.
DO NOT REMOVE GEAR SHIFT KNOB!
- Raise indicator plate and remove left side gear indicator lamp bulb housing (twist type).
- Remove right side wire harness connector (white) from shift mode switch.
- Raise the gear indicator panel up the stalk. Do not remove shift mode switch.

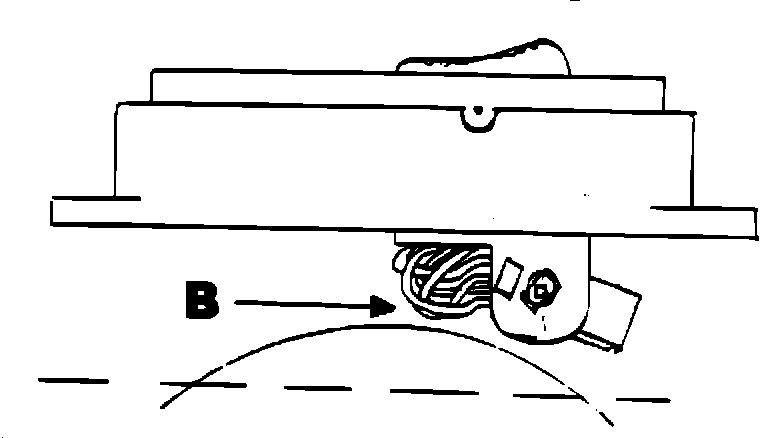

- Inspect shift mode switch wires for damage (plastic covering cut or shaved at Point B).
^ If damaged; proceed to Step II.
^ If not damaged; proceed to Step III,

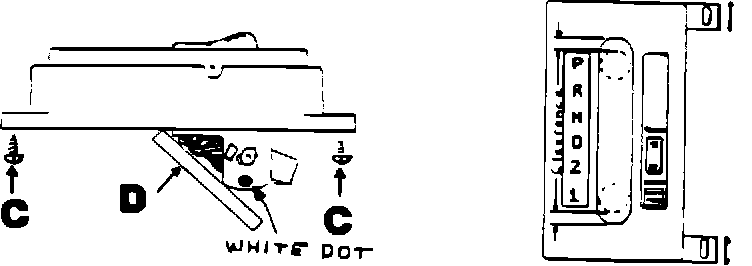

Step II. - Remove two (2) screws which retain the shift mode switch to the gear indicator plate, Points C.
- Remove and replace the switch with an improved switch.
Parts will be identified with 3-4 mm diameter white dot as shown on illustration below.
- Assure wires do not extend beyond the Plate D, as illustrated below.
- Reinstall indicator plate and move selector lever verifying clearance at Point D.
- Reinstall in reverse procedure. Assure gear indicator plate is centered and clearance can be seen by shifting to first gear and park positions before tightening mounting screws. Refer to illustration below.

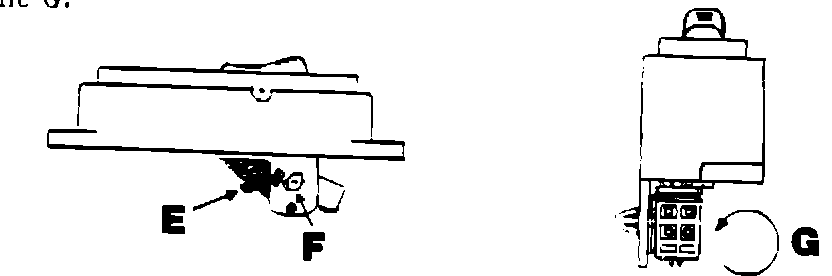

Step III. - With switch installed to indicator plate, carefully cut tie wrap which retains wire harness to switch housing, Point E.
- Remove white plastic connector from switch housing by squeezing at Point F.
- Turn the connector counterclockwise (as viewed from open end of connector) one (1) revolution, and reinstall in housing, Point G.

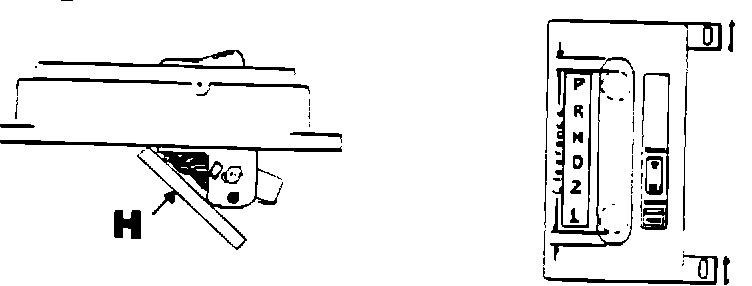

- Assure wires do not extend beyond the Plane H, as illustrated below.
- Reinstall indicator plate and move selector lever verifying clearance at Point H.
- Reinstall in reverse order. Assure gear indicator plate is centered and clearance can be seen by shifting to first gear and park positions before tightening mounting screws.*
* After Completion - Perform function test of electrical system, (mode switch, tail lamps, and instrument panel dimmer).
