Rear Retractor Assembly

REMOVAL
1. Flip the rear seat forward.
2. Remove the retractor cover.

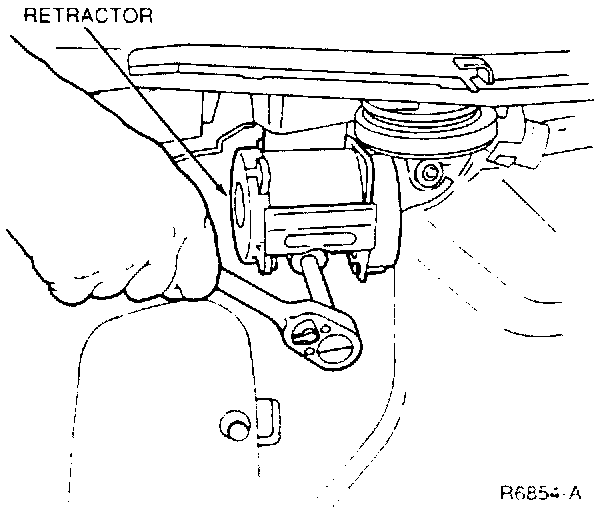

3. Remove the retractor mounting bolt and washer.

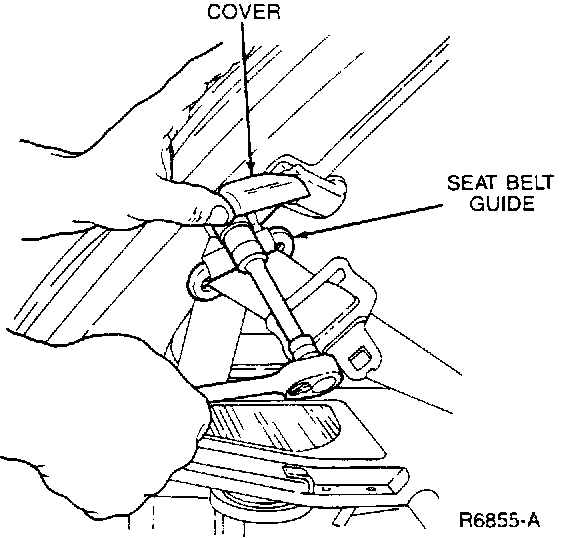

4. Lift the guide cover and remove the seat belt guide bolt and washer.

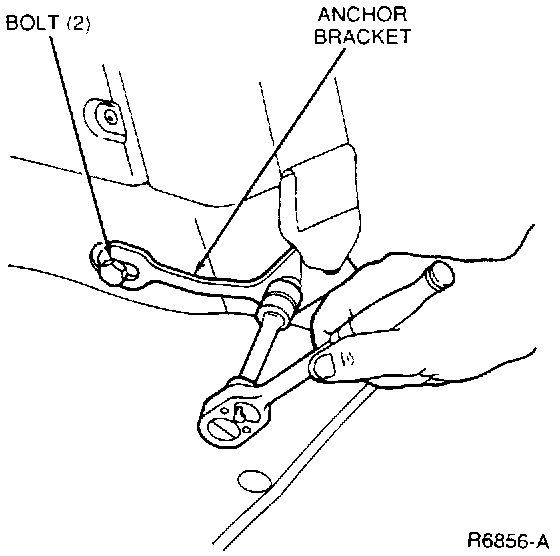

5. Remove the two anchor bracket bolts.
6. Remove the rear speaker side shelf.
7. Remove the rear retractor and attached components.

INSTALLATION
1. Position the anchor bracket and install the bolts. Tighten the bolts to 38-78 Nm (28-58 ft lbs).
2. Position the seat belt guide and install the washer and bolt. Tighten the bolt to 38-78 Nm (28-58 ft lbs).
3. Press the guide cover into place.
4. Position the retractor and install the mounting bolt and washer. Tighten the bolt to 38-78 Nm (28-58 ft lbs).
5. Install the retractor cover.
6. Install the rear speaker side shelf.
7. Flip the rear seat back into place.
