Home
>>
Ford
>>
1990
>>
Mustang V8-302 5.0L HO
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Power Locks
>>
Power Door Lock Switch
>>
Except Convertible
Except Convertible

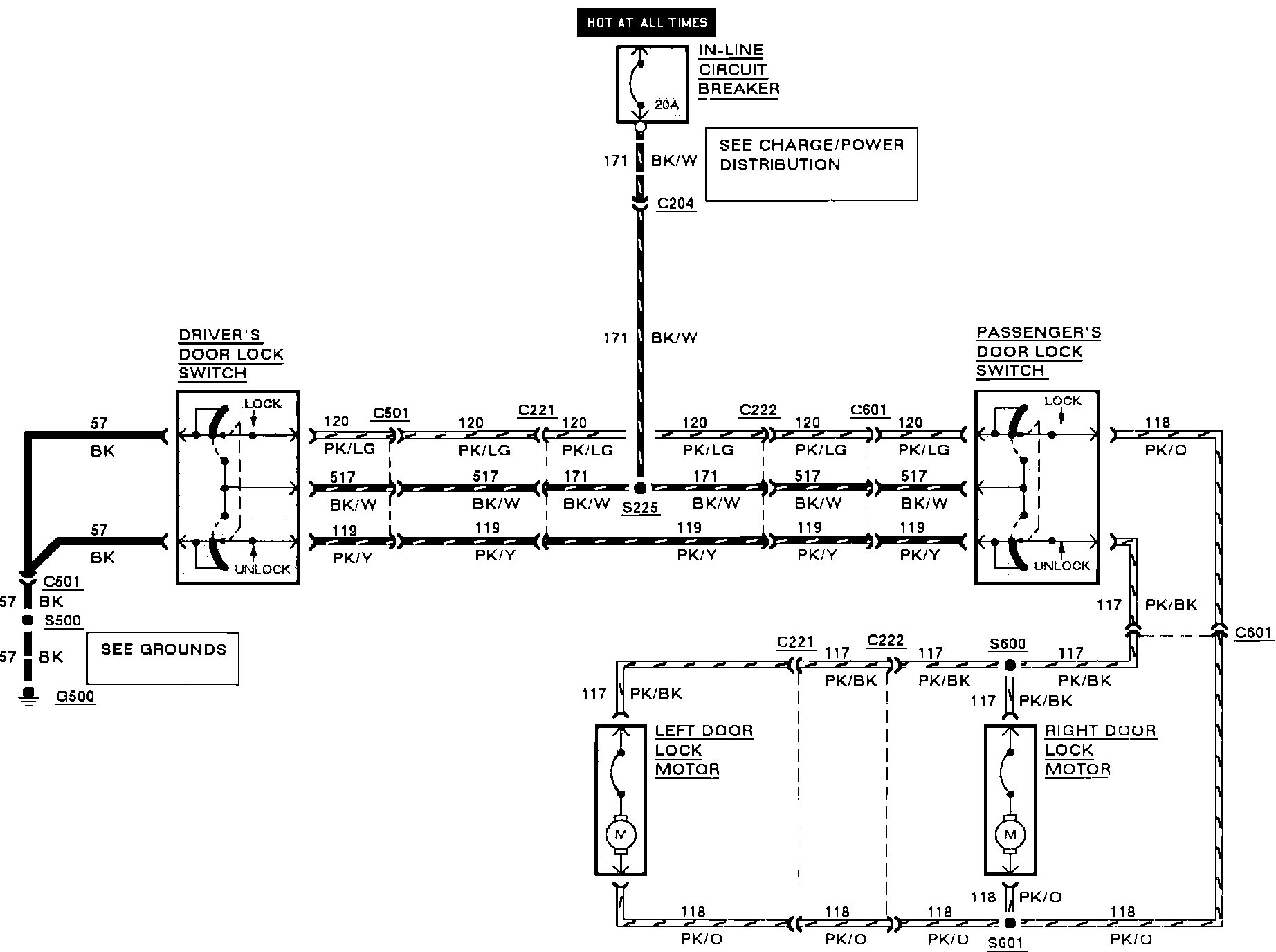

Power Door Locks - Except Convertible:
