Mustang V8-302 5.0L HO
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Power Window Circuit Breaker
>>
Except Convertible
Except Convertible

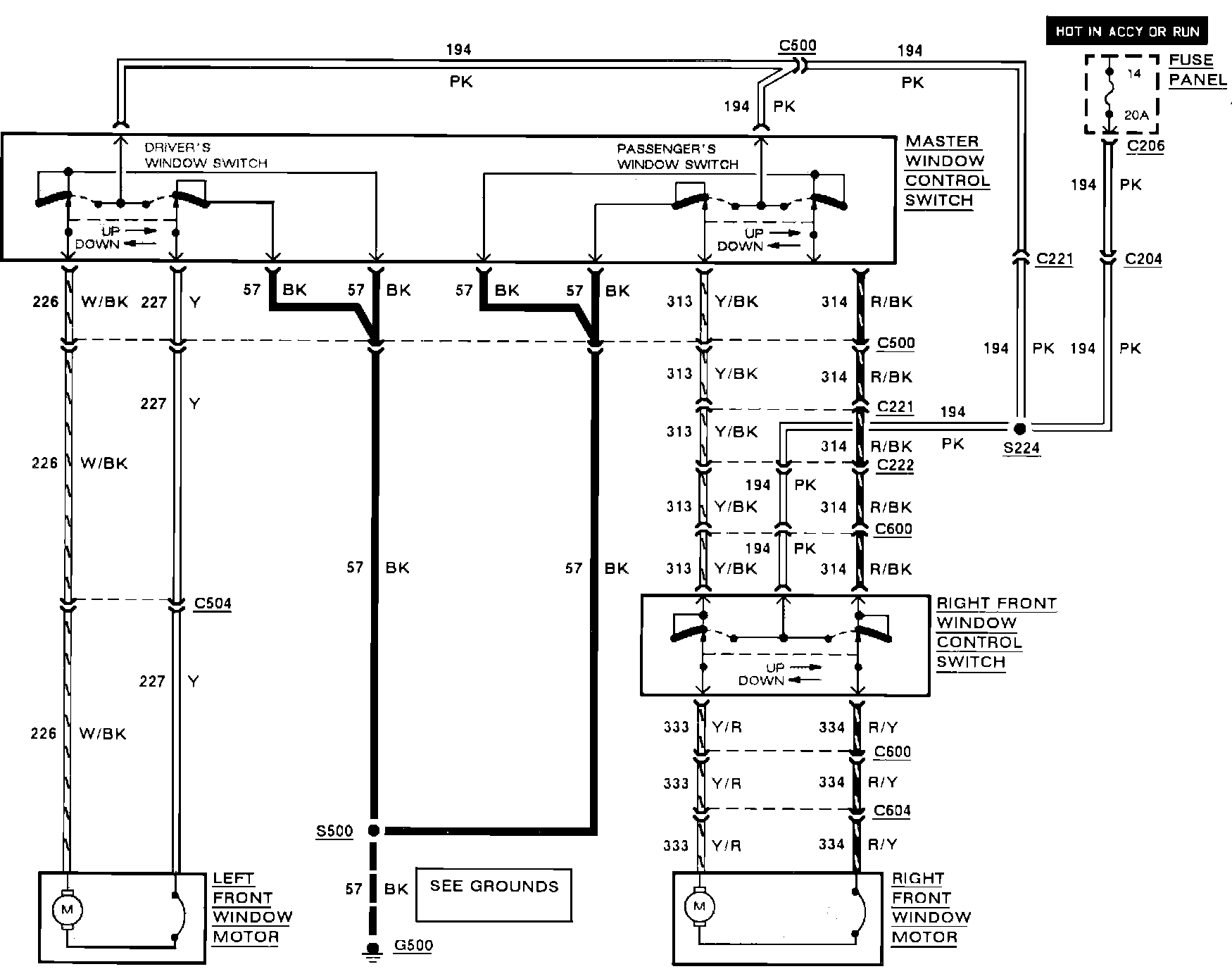

Power Windows - Except Convertible:
