Home >> Ford >> 1990 >> Probe L4-133 2.2L SOHC >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> General Condition Chart(s)

General Condition Chart(s)

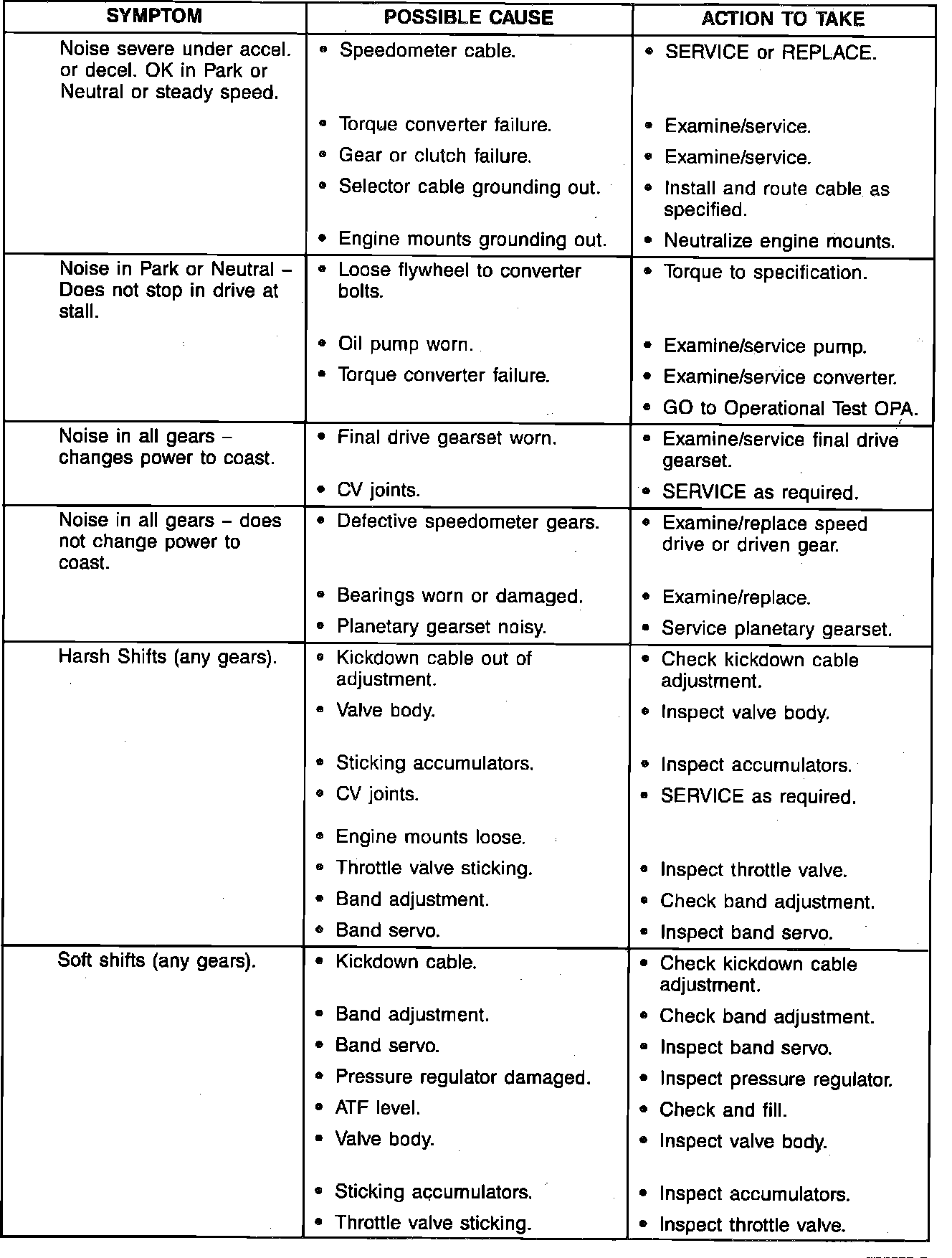

PART 1 of 4:

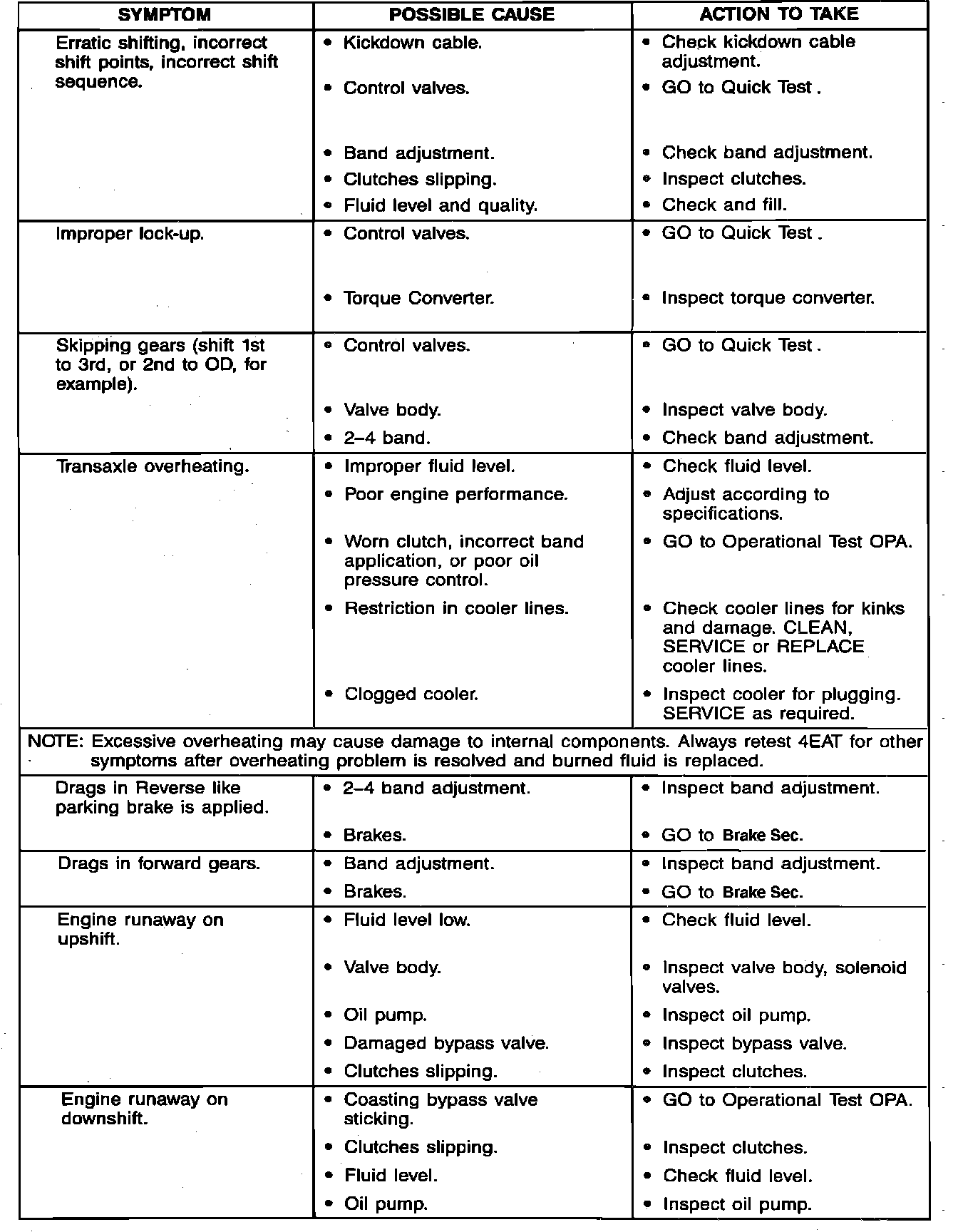

PART 2 of 4:

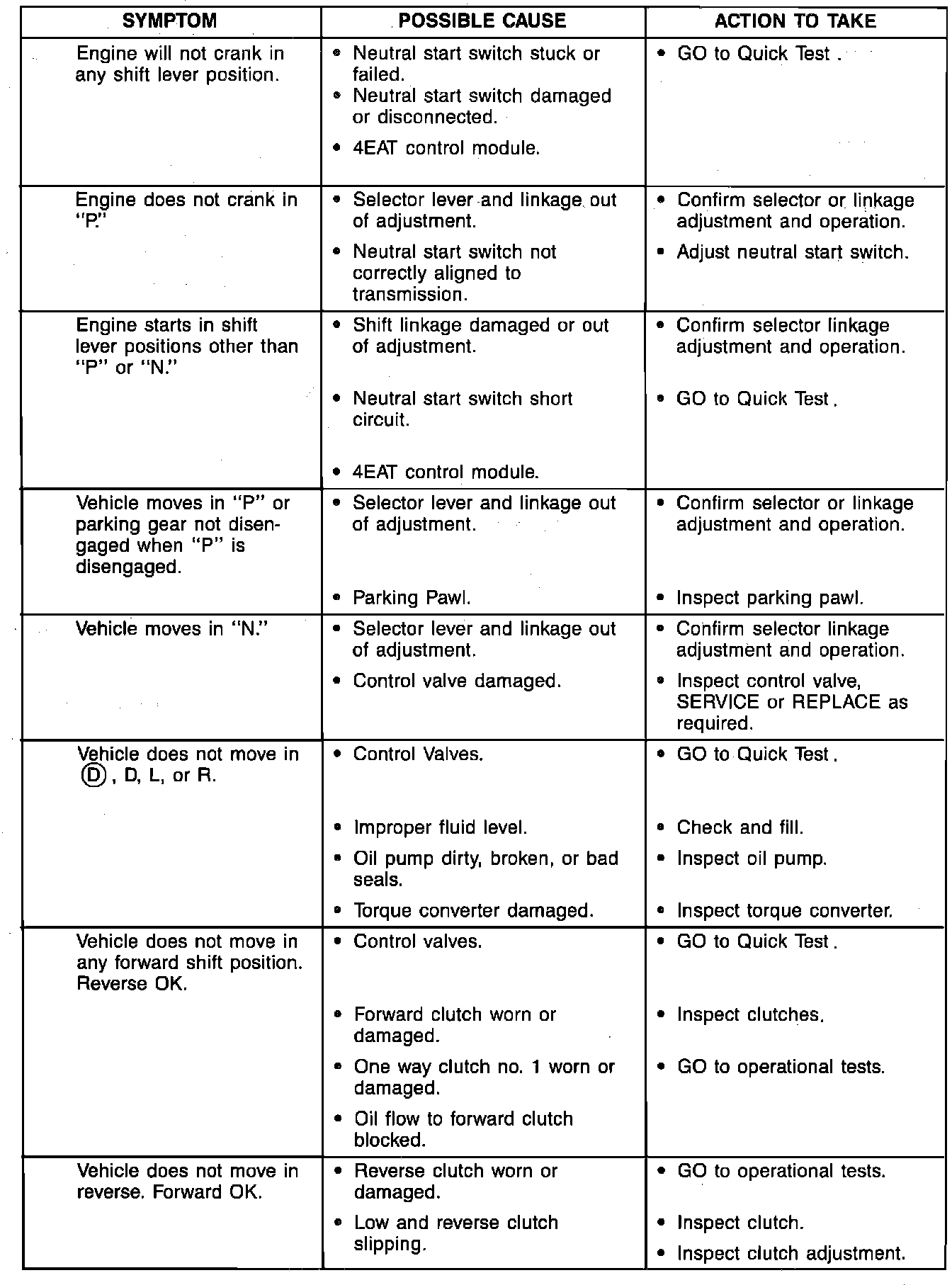

PART 3 of 4:





PART 4 of 4:
