Home >> Ford >> 1990 >> Probe L4-133 2.2L SOHC >> Repair and Diagnosis >> Wiper and Washer Systems >> Testing and Inspection >> Wiper/Washer Diagnosis >> Test WW11

Test WW11

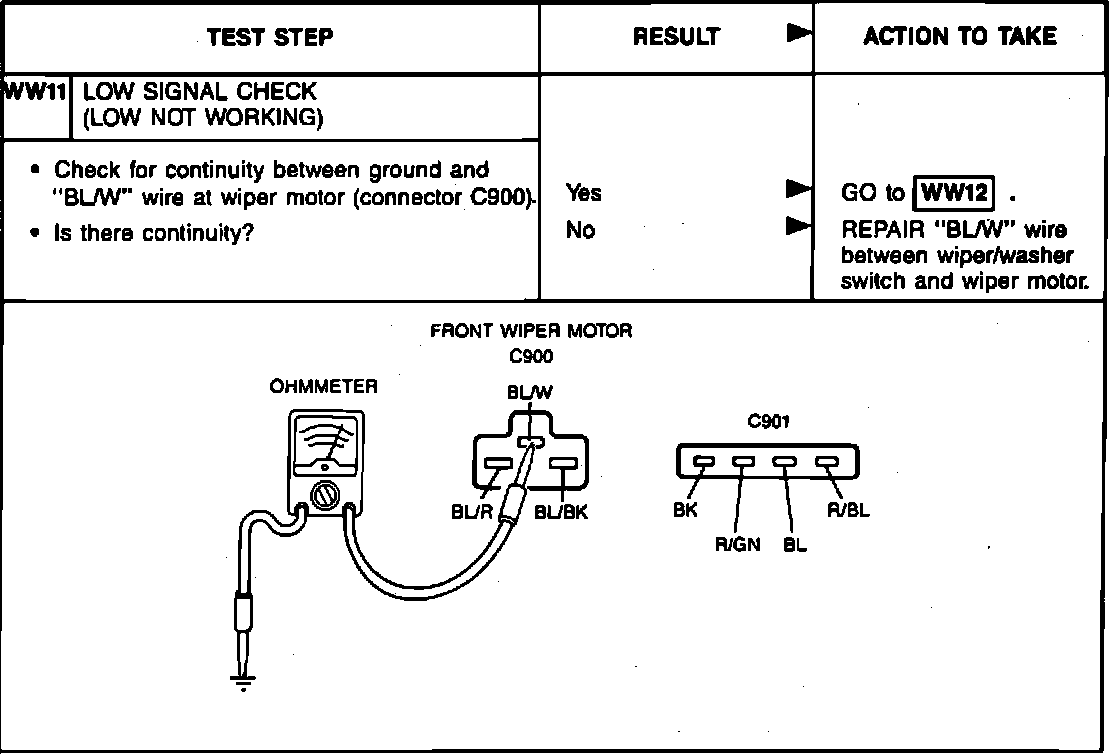

Fig. 16 Wiper System Diagnosis & Testing (Part 6 Of 24):
