Home >> Ford >> 1990 >> Probe L4-133 2.2L SOHC >> Repair and Diagnosis >> Wiper and Washer Systems >> Testing and Inspection >> Wiper/Washer Diagnosis >> Test WW13

Test WW13

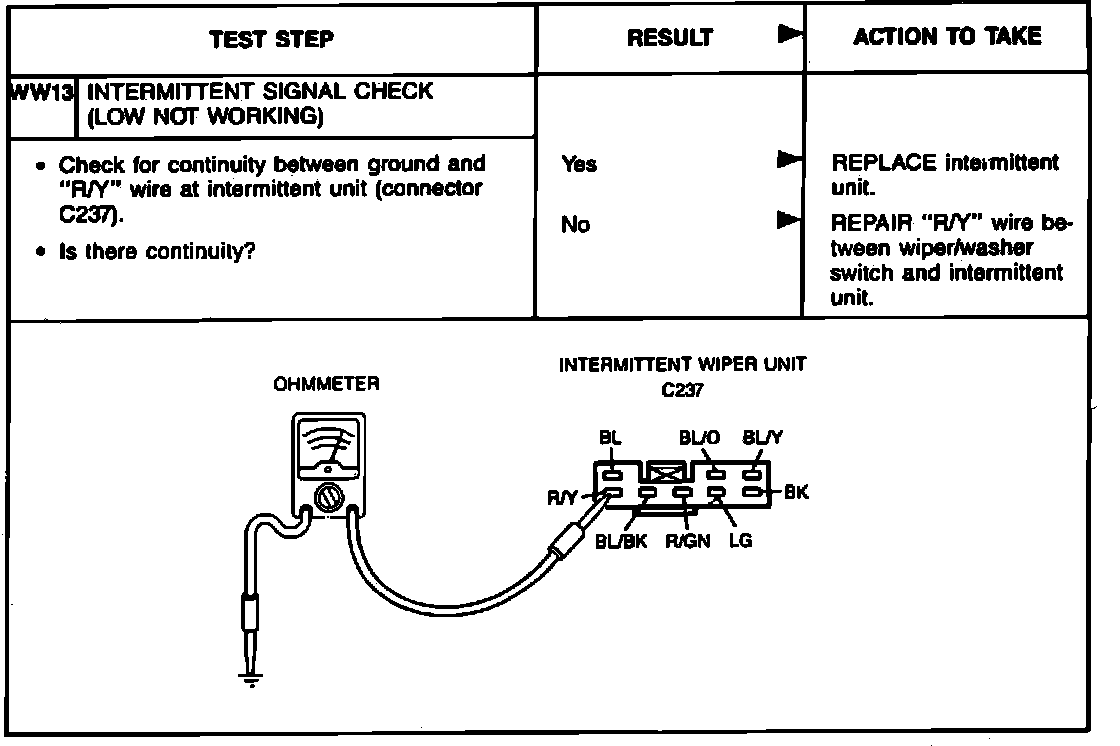

Fig. 16 Wiper System Diagnosis & Testing (Part 8 Of 24):
