LTD Wagon V8-302 5.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Diagnostic Mode Switch/Connector
>>
California Sedan
California Sedan

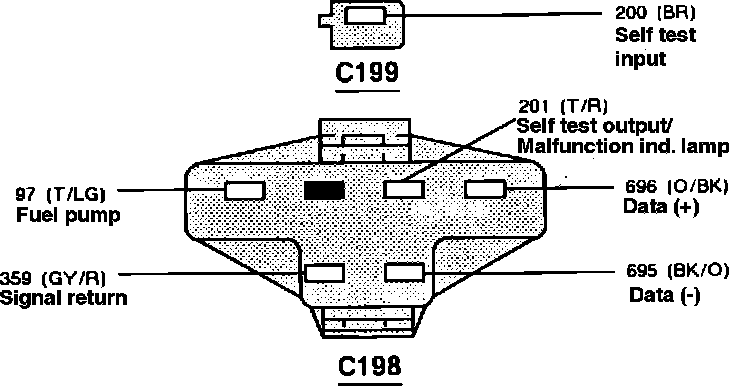

Diagnostic Connector:
