Home >> Ford >> 1991 >> Mustang L4-140 2.3L SOHC >> Repair and Diagnosis >> Powertrain Management >> Ignition System >> Testing and Inspection >> Pinpoint Tests >> Test B - Code 222 >> Steps B7 Thru B9

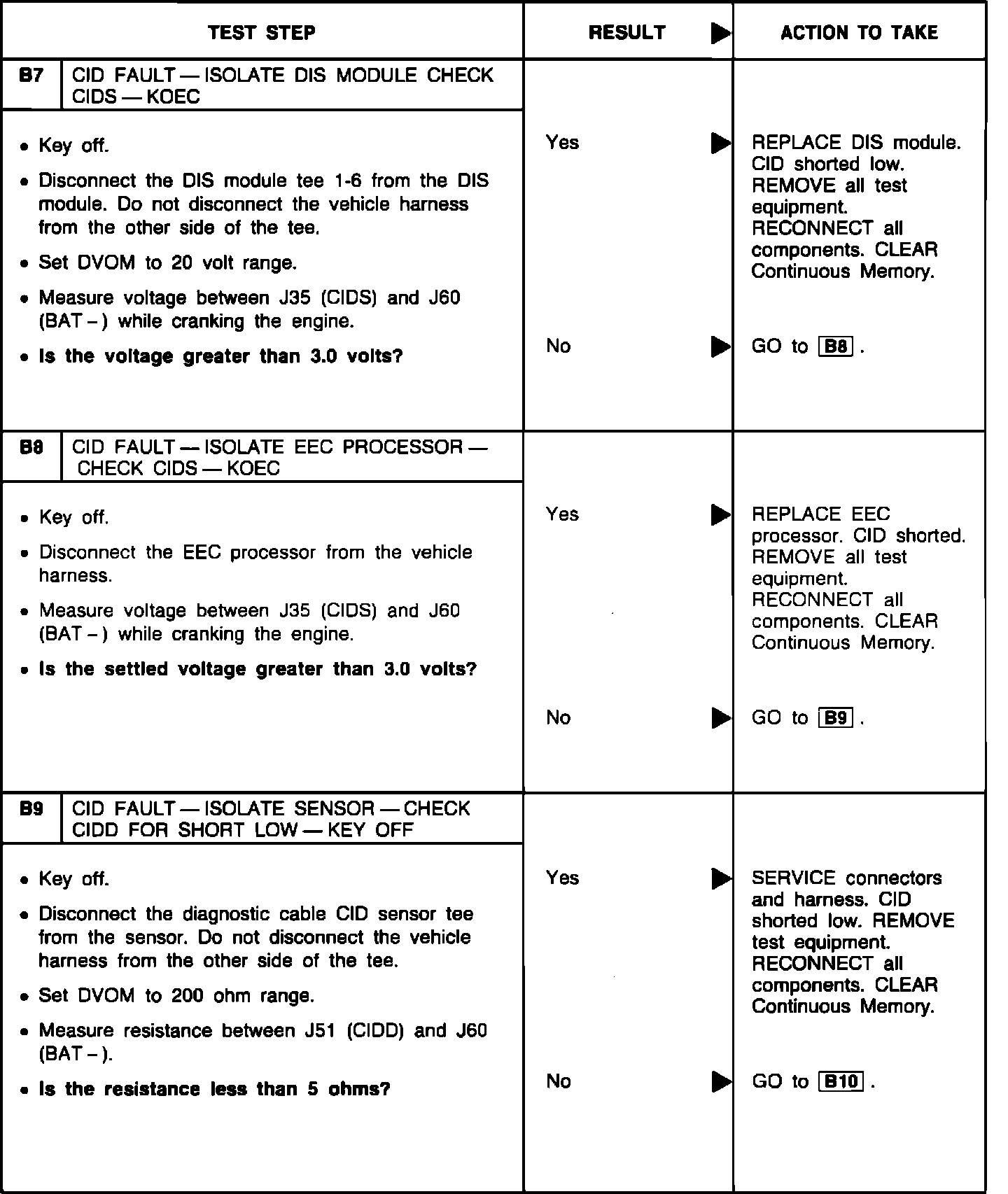

Steps B7 Thru B9

Distributorless Ignition System Pinpoint Test:
