Home >> Ford >> 1991 >> Probe L4-133 2.2L SOHC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Power and Ground Distribution >> System Diagram >> Ground Distribution >> GL >> G200

G200

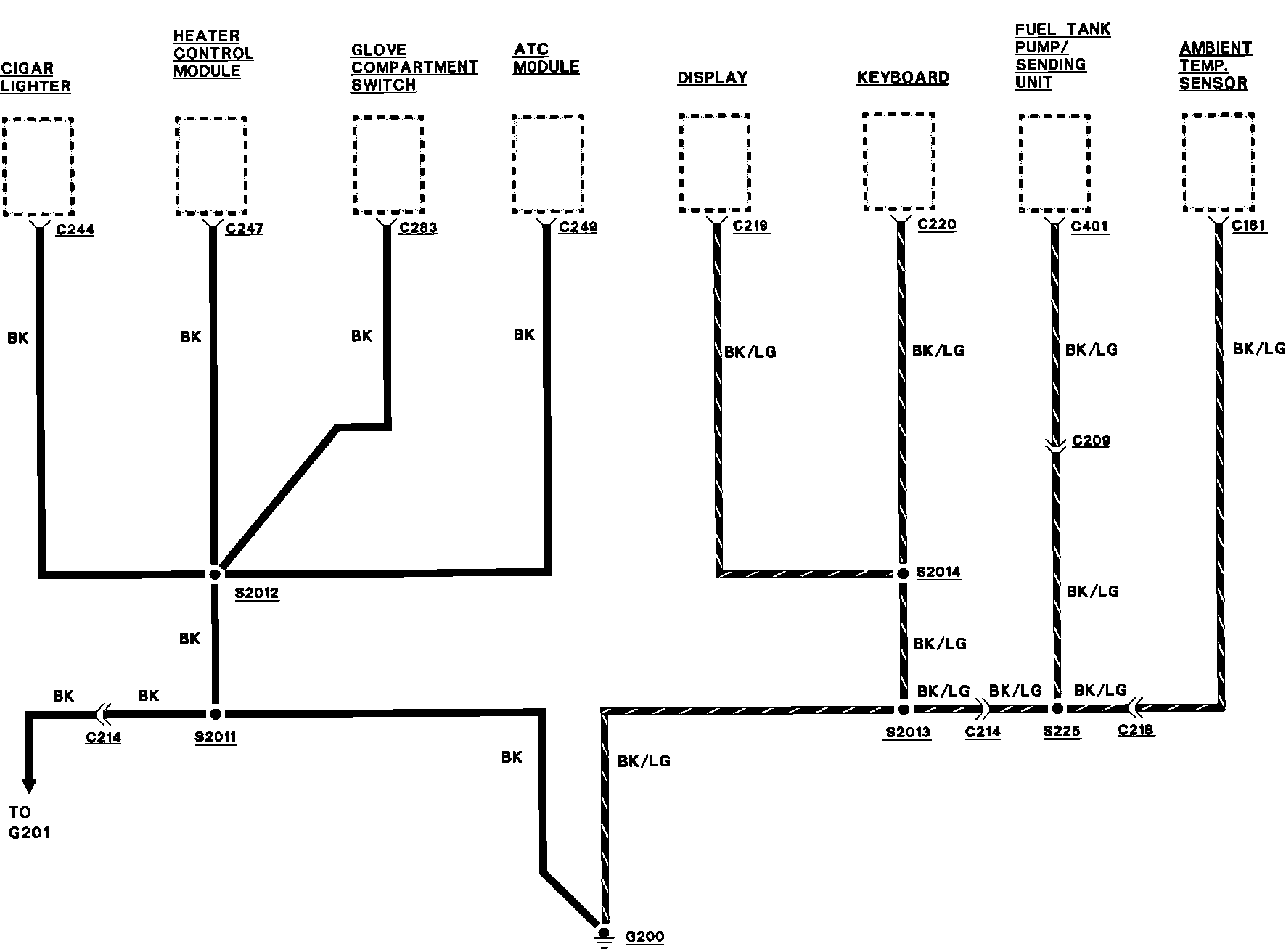

Ground G200:
