System Diagram
>>
Block Diagrams
>>
With Automatic Transmission
With Automatic Transmission

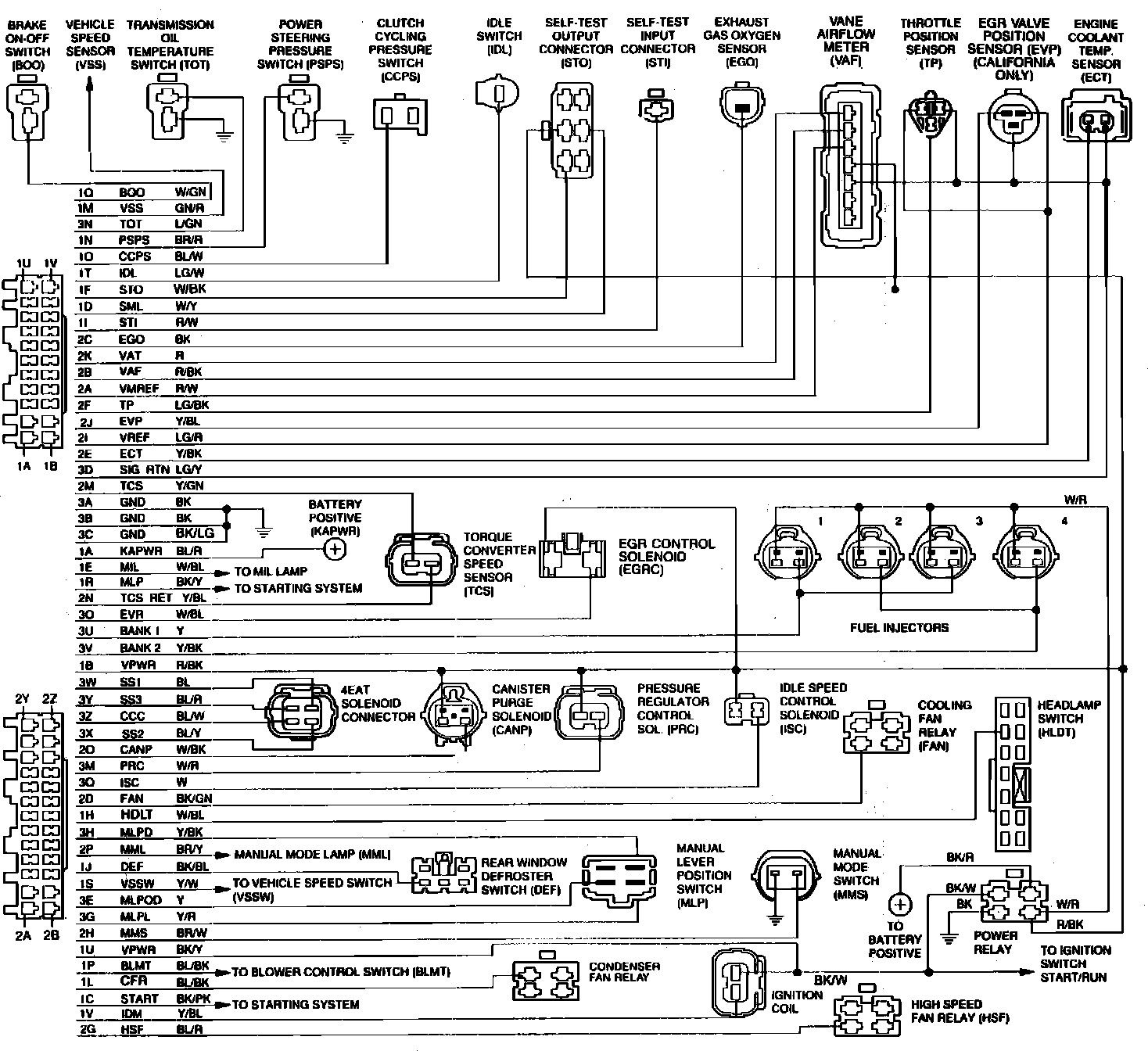

Wiring Diagram (ATX) Non-Turbo:
