Home >> Ford >> 1991 >> Probe V6-182 3.0L >> Repair and Diagnosis >> Powertrain Management >> Emission Control Systems >> Technical Service Bulletins >> Engine Control Systems - Diagnosis Revision >> EEC Pinpoint Test - All Engines >> Vane Air Flow - All Engines >> Notes, Pinpoint Test Schematic, Connector Pin I.D.

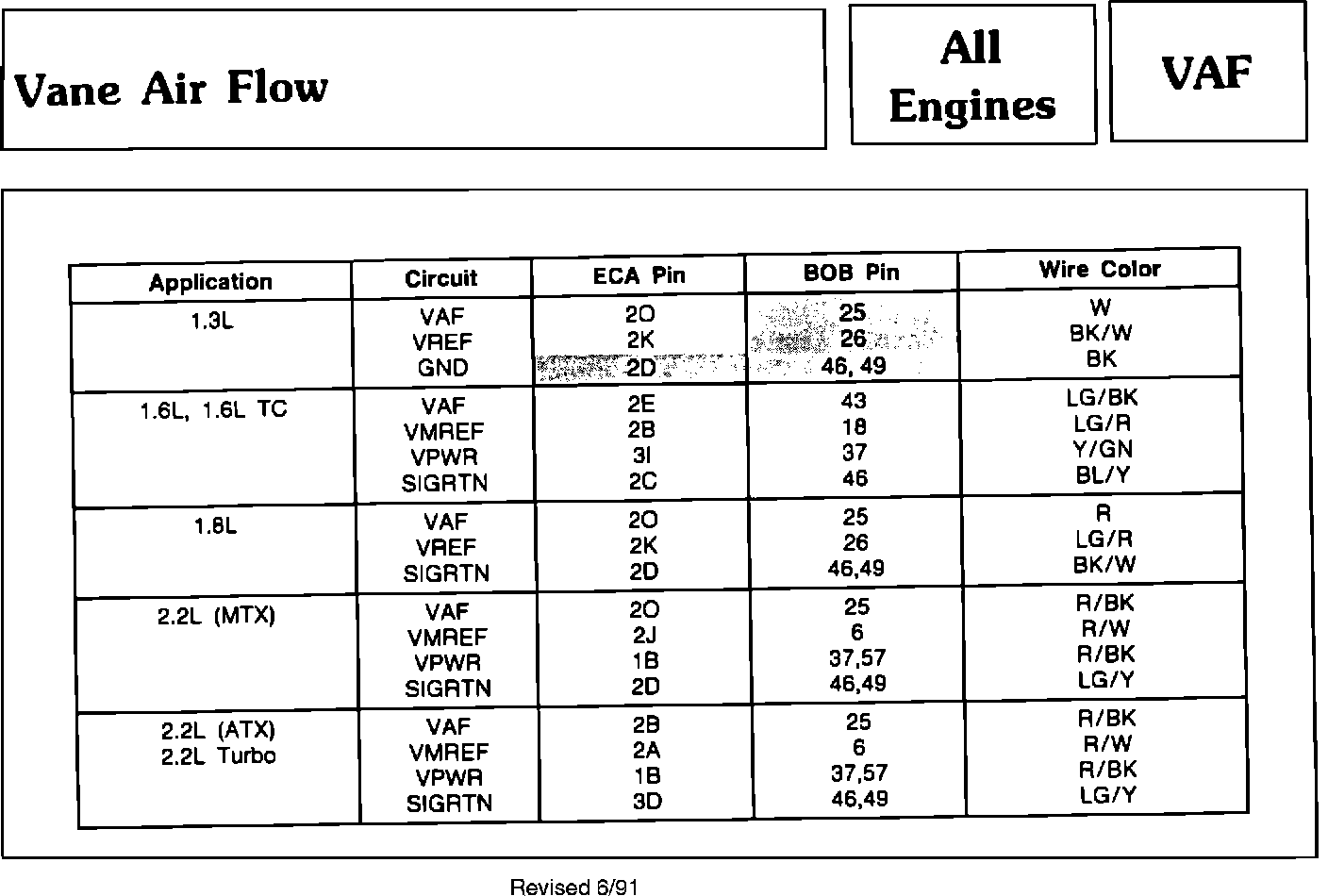

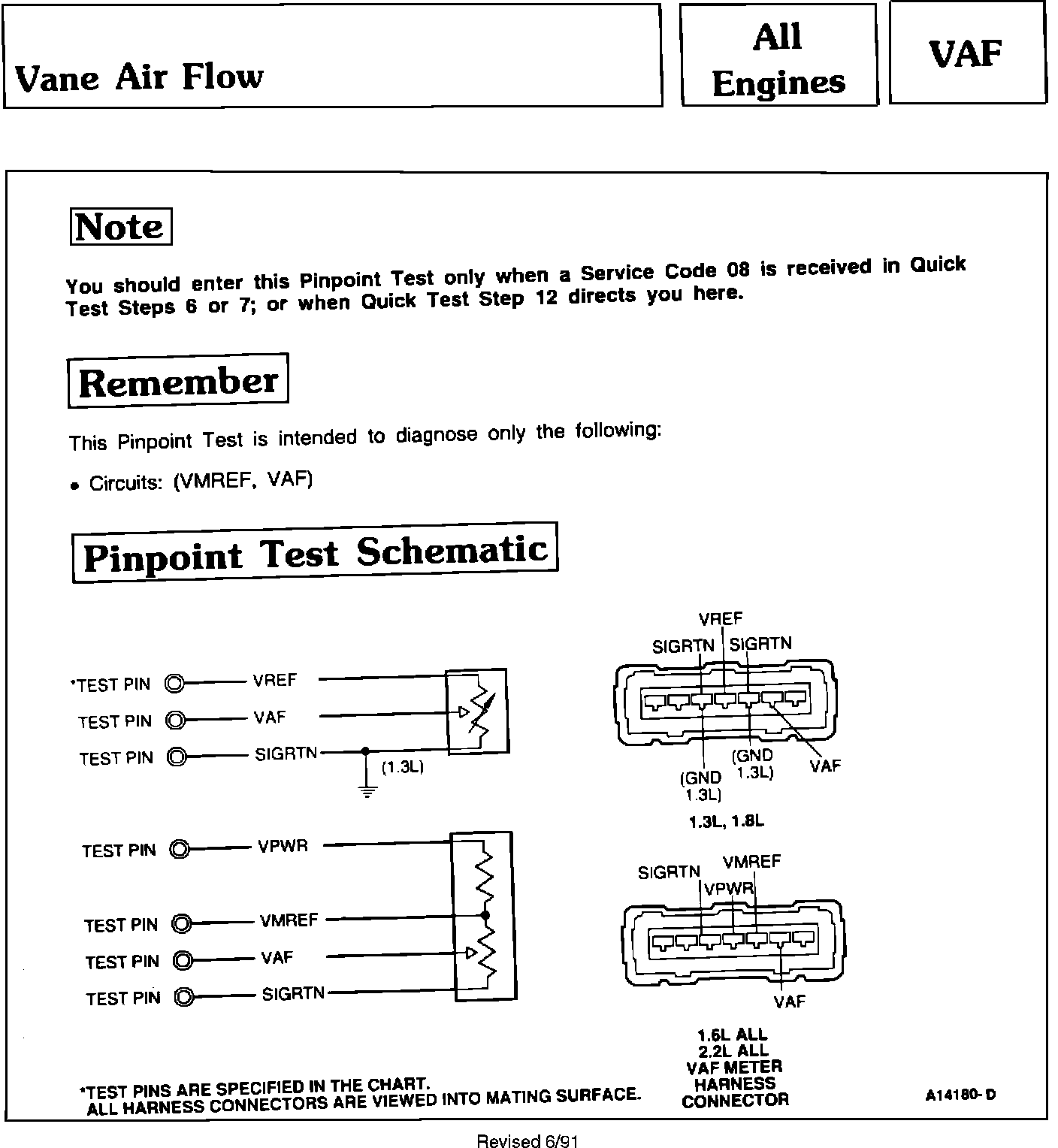

Notes, Pinpoint Test Schematic, Connector Pin I.D.
