Home >> Ford >> 1992 >> Festiva L4-81 1.3L SOHC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Shift Interlock, A/T

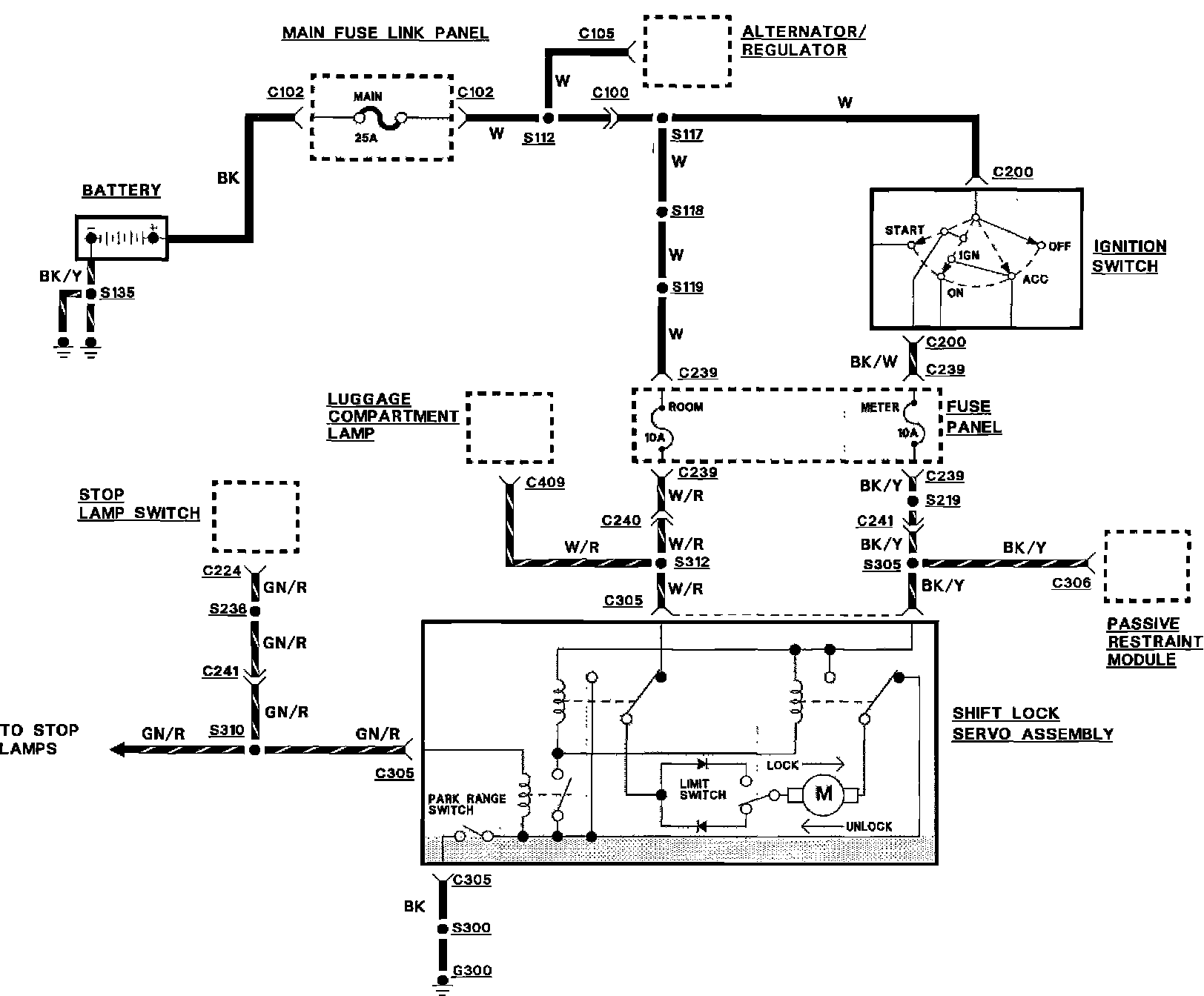

Shift Interlock, A/T

Transmission Controls (Shift Lock System):
