Ford
>>
1992
>>
Mustang L4-140 2.3L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Brake Warning Indicator
Brake Warning Indicator

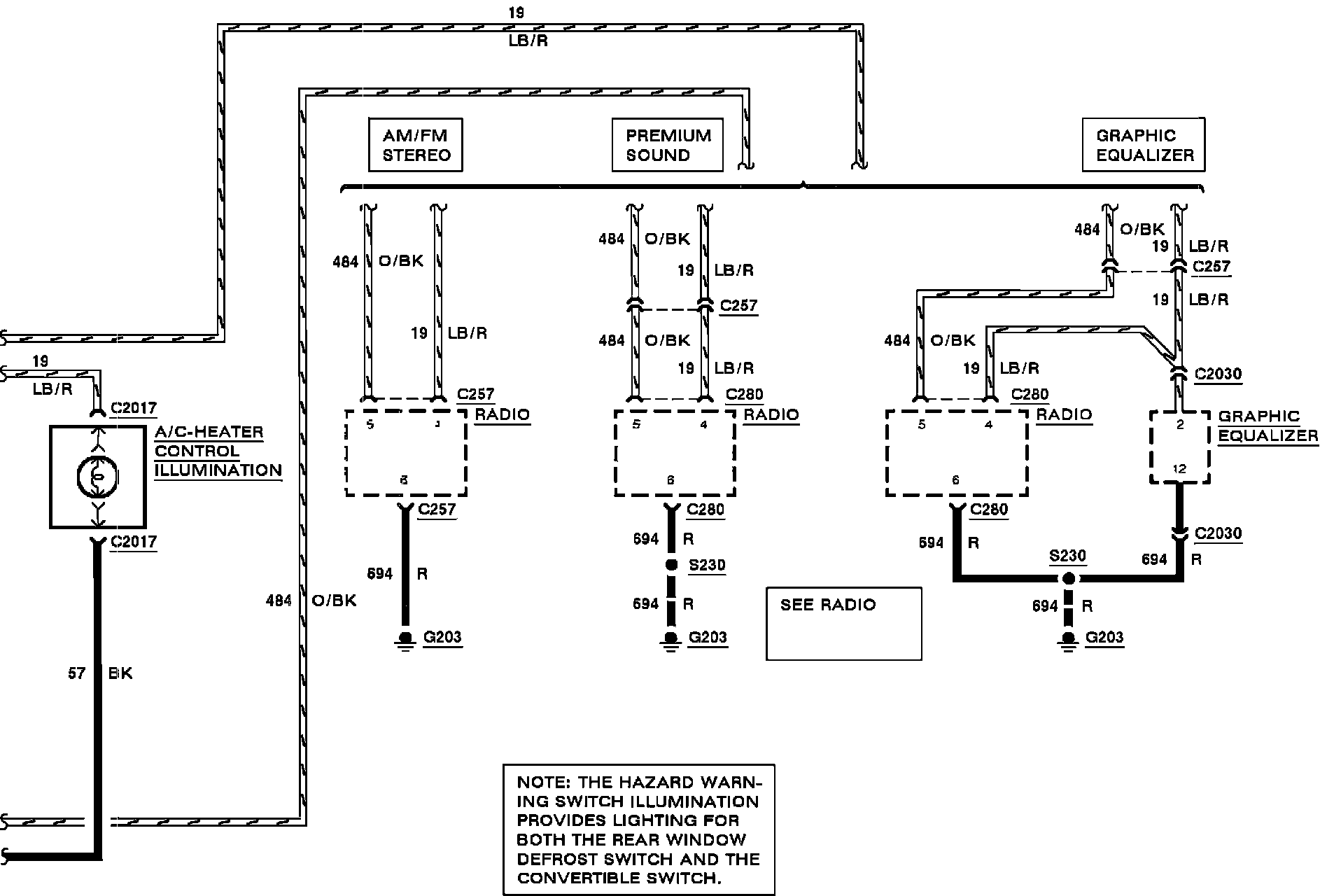

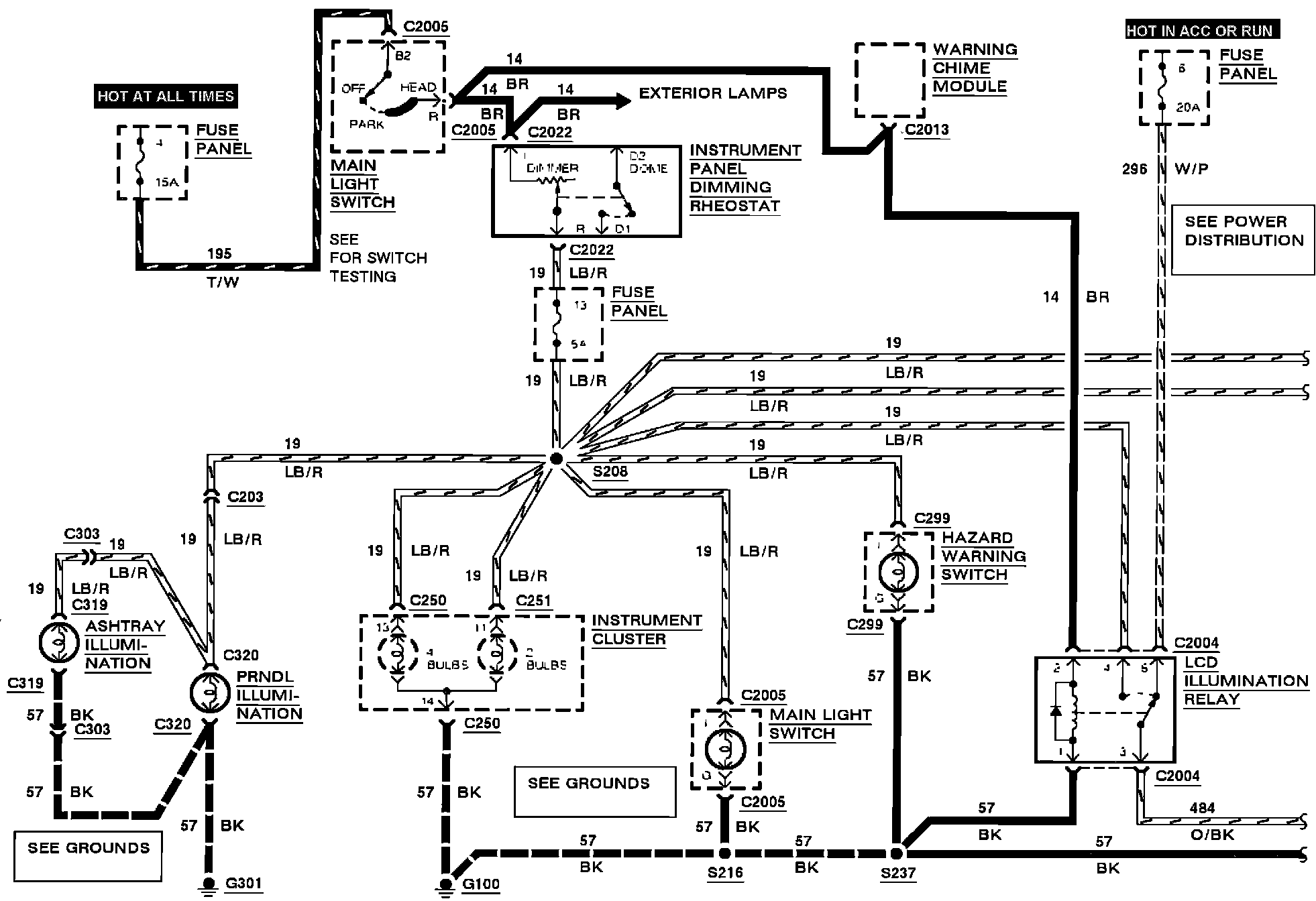

Instrument Illumination:
Instrument Illumination:
