Home >> Ford >> 1992 >> Probe L4-133 2.2L SOHC Turbo >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Pinpoint Tests >> Pinpoint Tests >> VPWR - Vehicle Power >> VPWR3 - VPWR From Main Relay

VPWR3 - VPWR From Main Relay

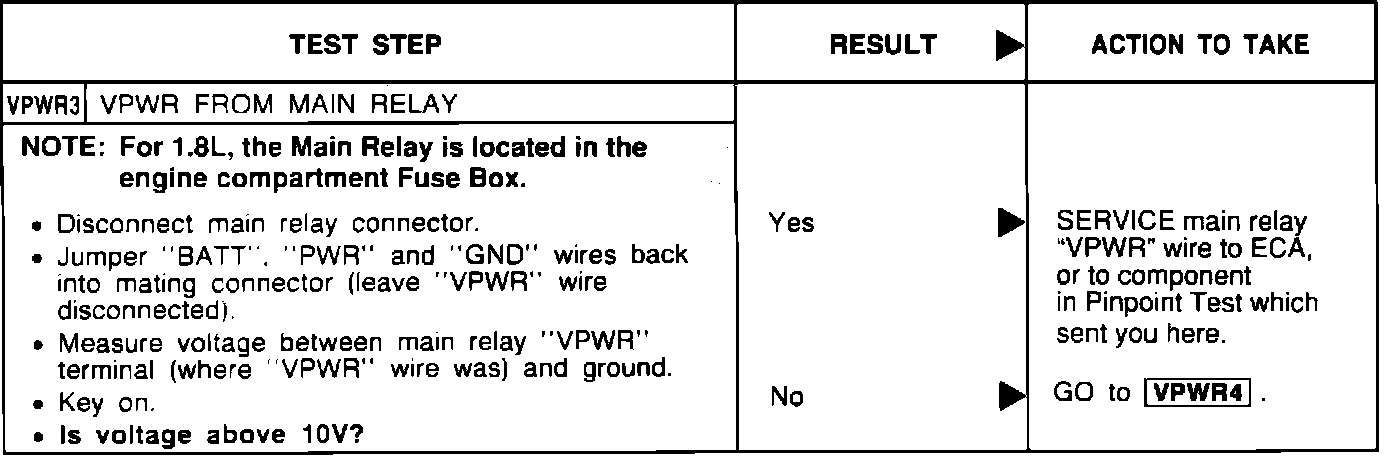

Pinpoint Test VPWR3:
