Home >> Ford >> 1992 >> Probe L4-133 2.2L SOHC Turbo >> Repair and Diagnosis >> Wiper and Washer Systems >> Testing and Inspection >> Wiper/Washer Diagnosis >> Test WW32

Test WW32

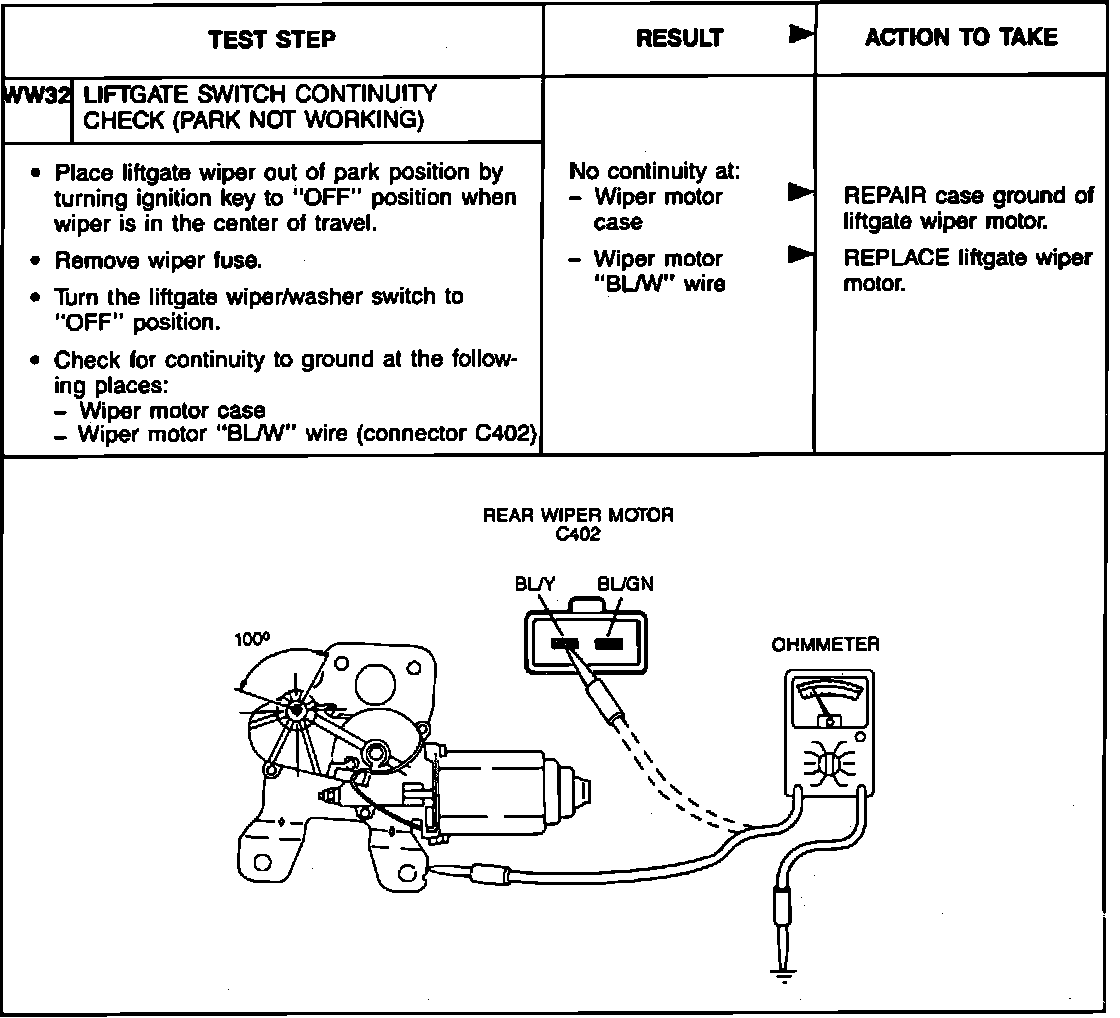

Fig. 16 Wiper System Diagnosis & Testing (Part 23 Of 24):
