Passive Restraint Retractor Assembly

REMOVAL
1. Unbuckle the shoulder belt from the carrier.
2. Remove the passive restraint retractor cover.






3. Disconnect the passive restraint retractor electrical connector.






4. Remove the passive restraint retractor mounting bolt.

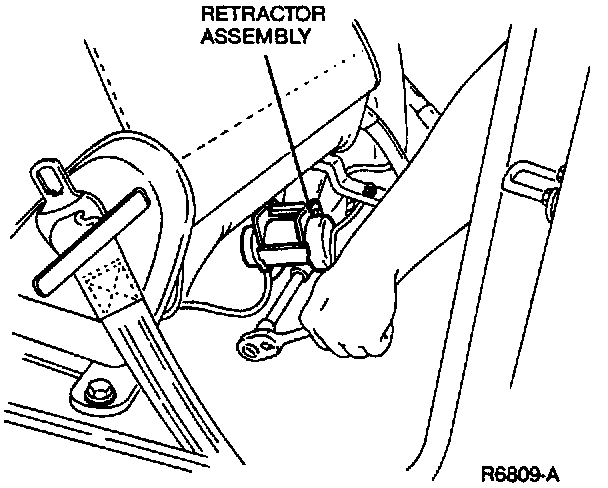

5. Remove the passive restraint retractor assembly.

INSTALLATION
1. To install, reverse the removal procedure.
2. Tighten the passive restraint retractor mounting bolt to 31-46 Nm (23-34 ft lbs).
3. Check the passive restraint system for proper operation.
