Home >> Ford >> 1993 >> Mustang L4-140 2.3L SOHC >> Repair and Diagnosis >> Windows and Glass >> Windows >> Diagrams >> Electrical Diagrams >> Convertible

Convertible

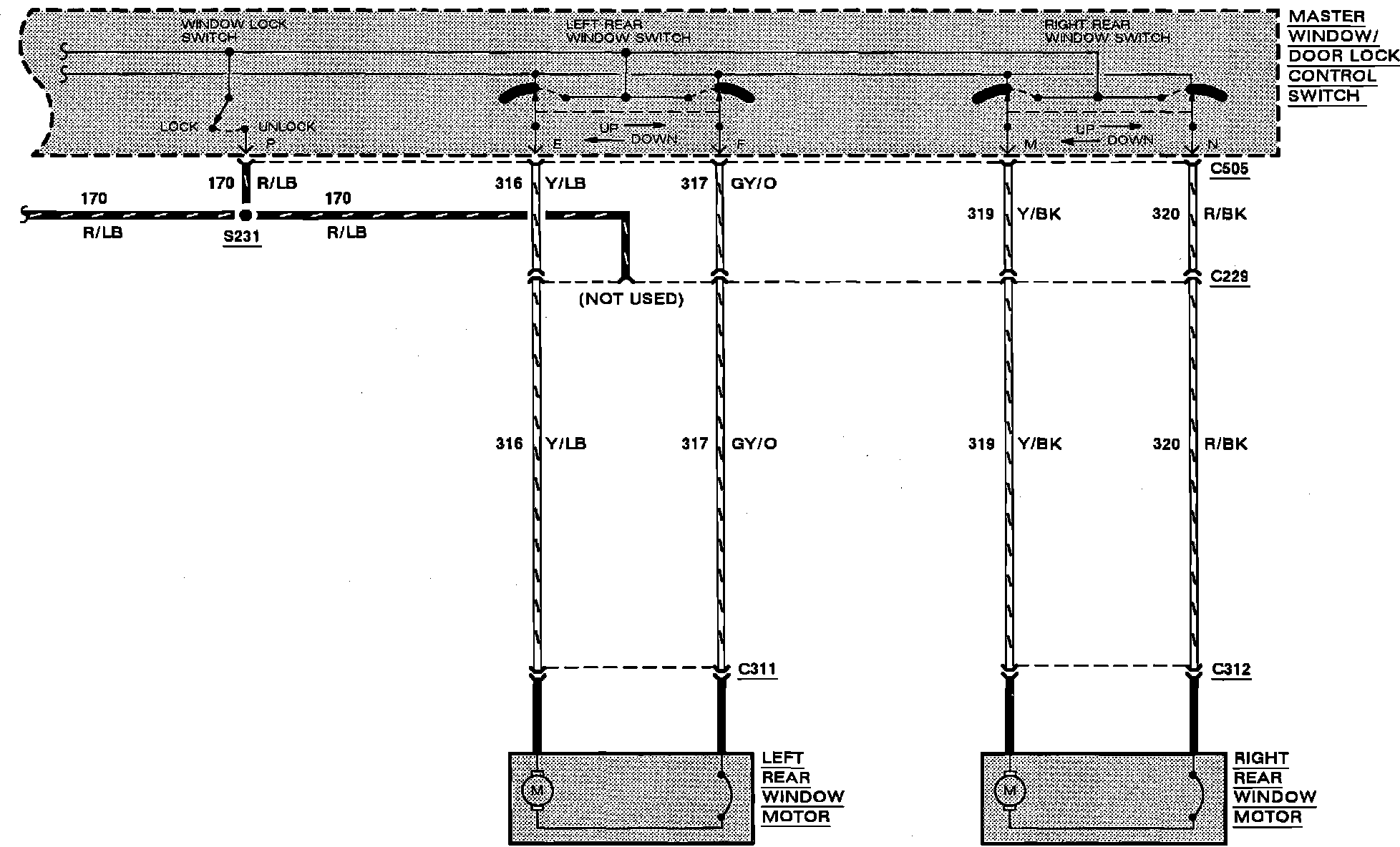

Power Window:

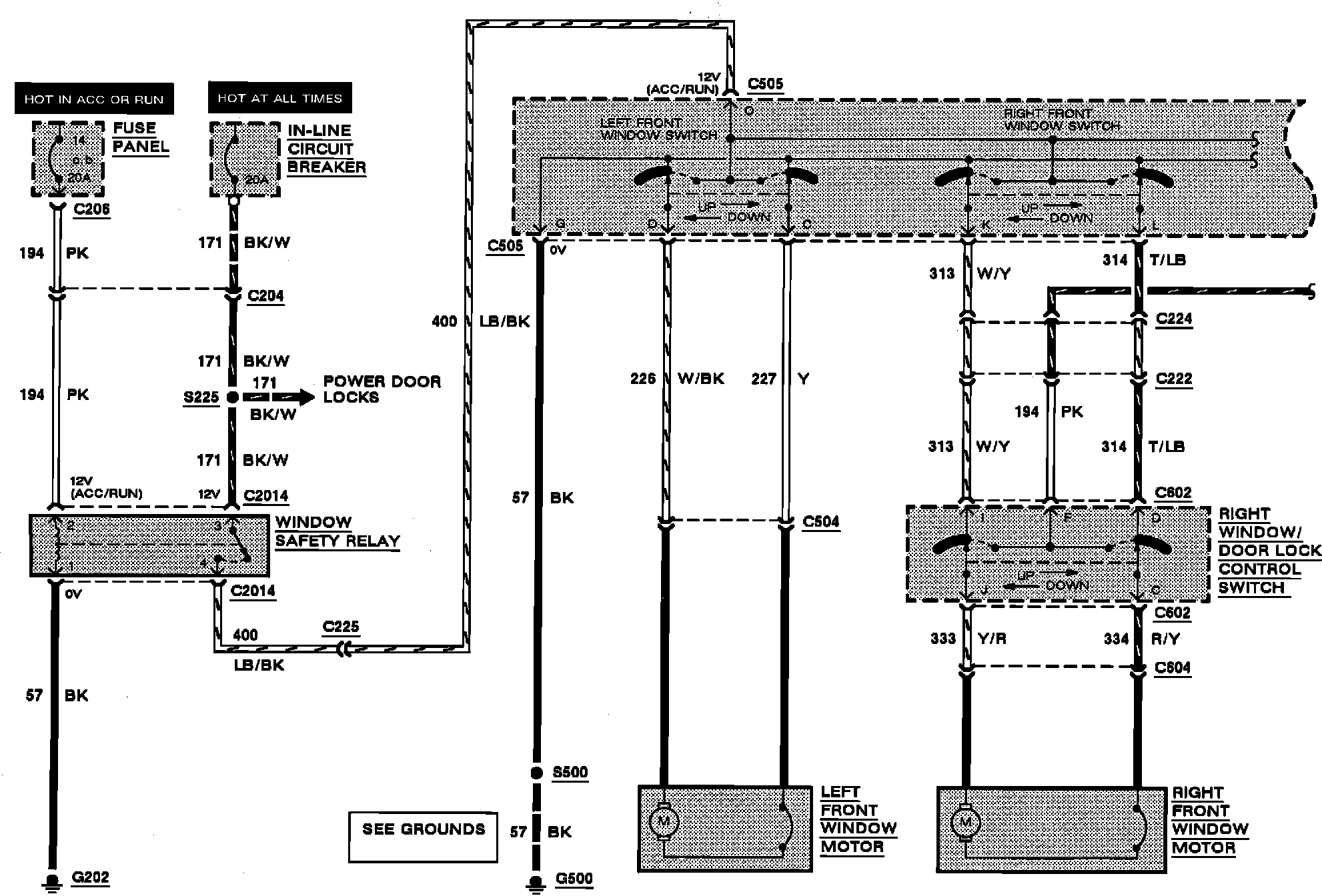

Power Windows:
