Home >> Ford >> 1993 >> Probe V6-152 2.5L DOHC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Powertrain Management >> System Diagram >> Block Diagrams >> With Automatic Transmission

With Automatic Transmission

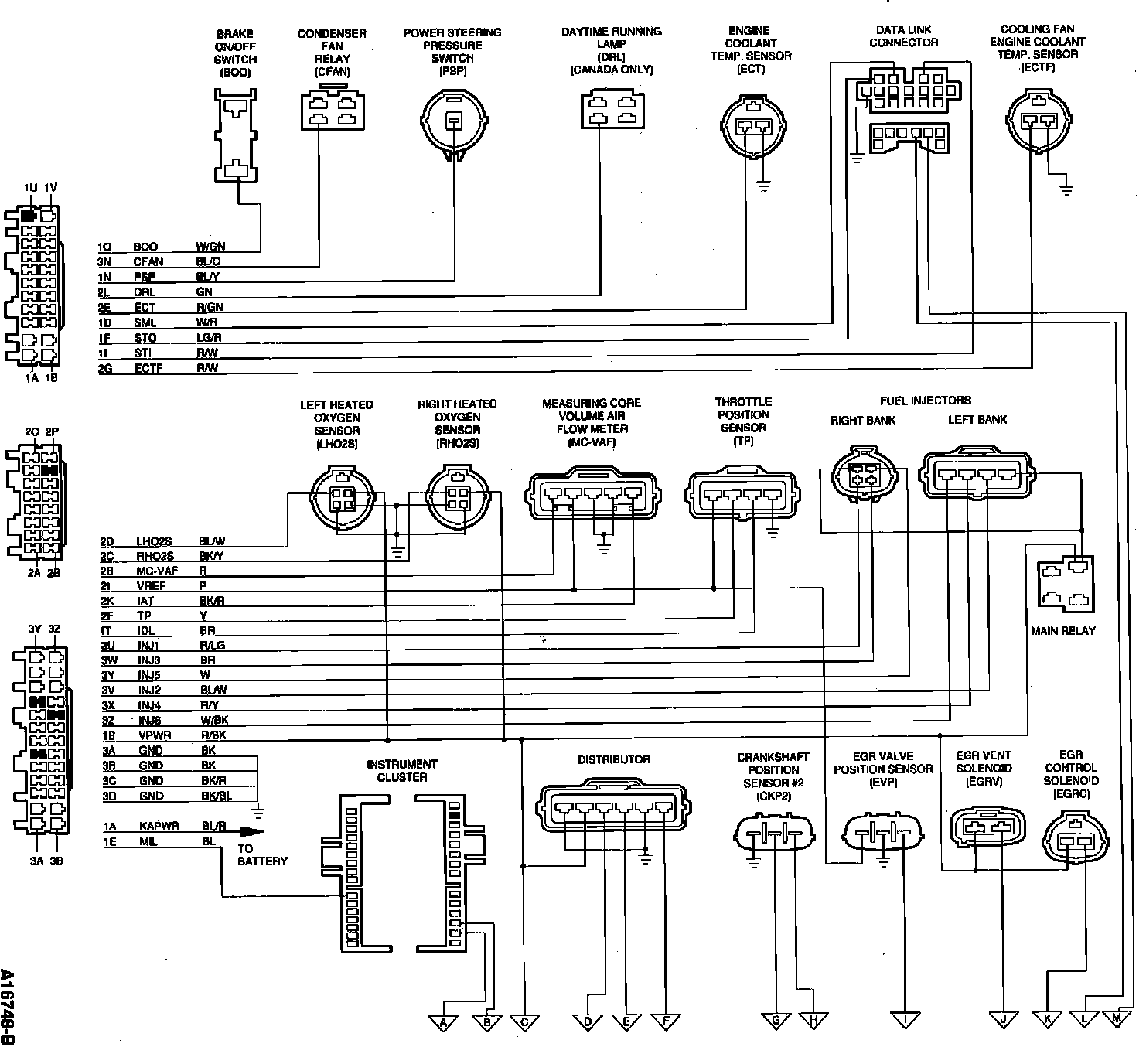

PCM Wiring Schematic (Part 1, A/T):

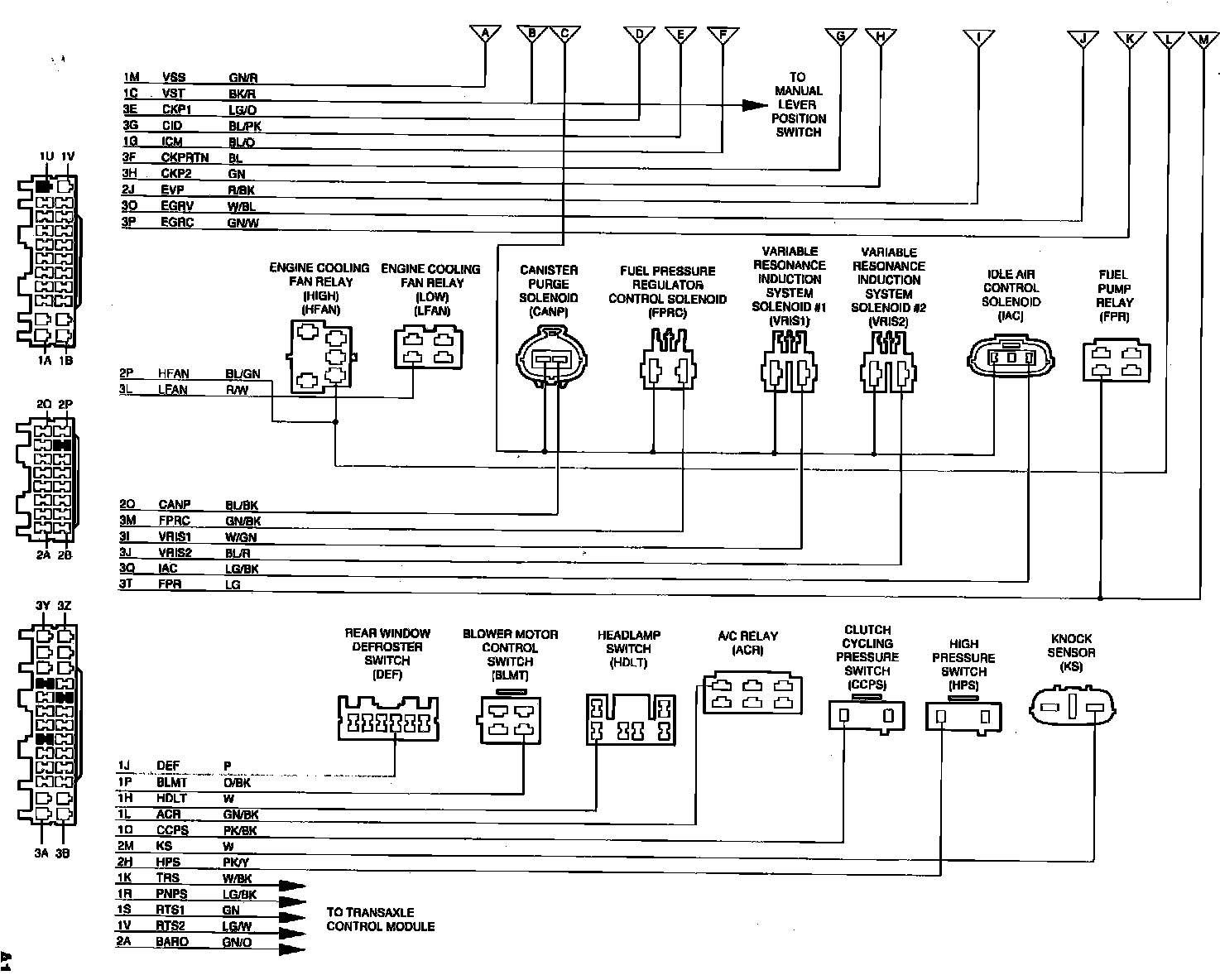

PCM Wiring Schematic (Part 2, A/T):
