Fuse DEFOG

Fuse (DEFOG) - protects the following circuits:
- Rear Window Defroster

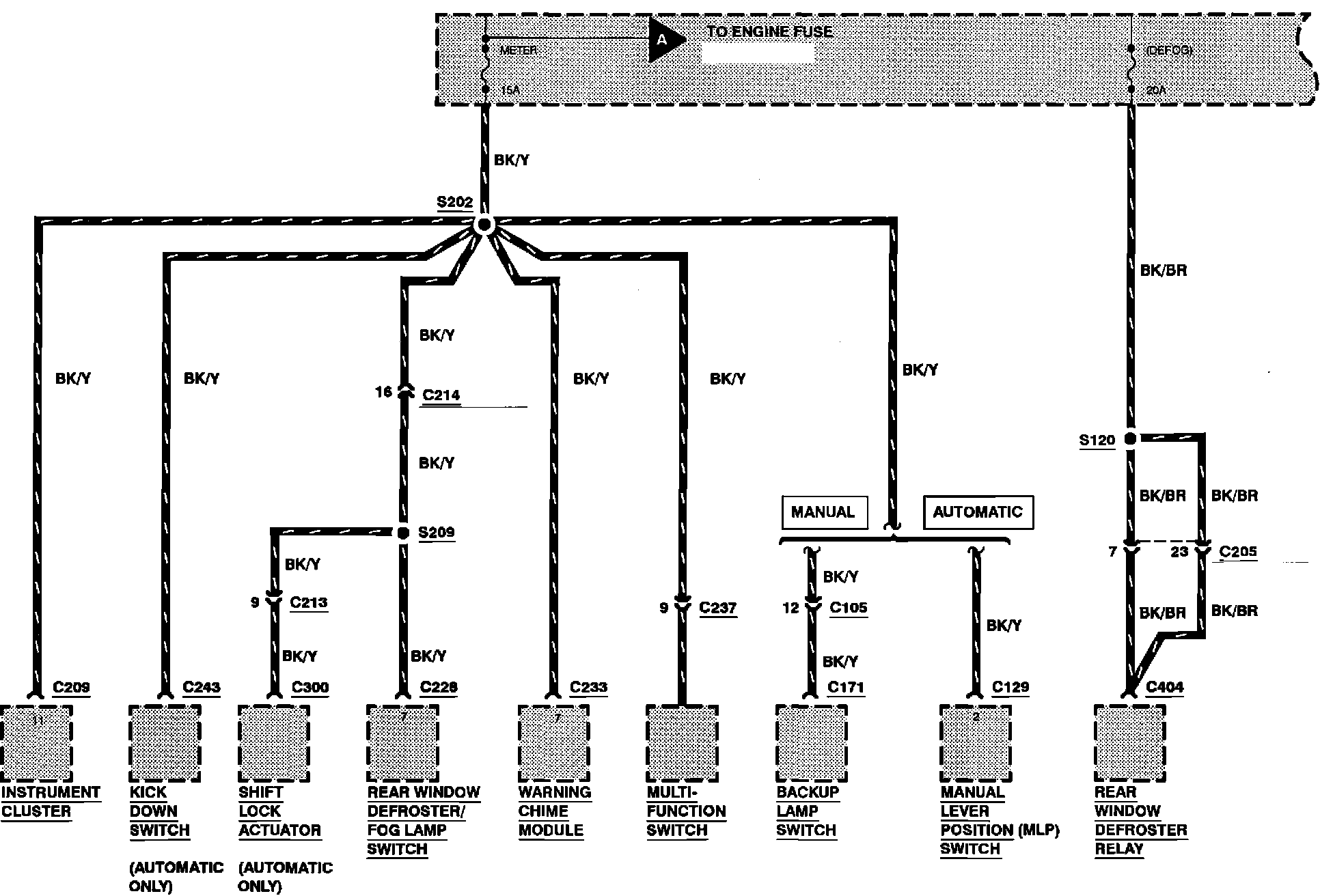

Power Distribution:

Power Distribution:
