Fuse INJ

Fuse INJ - protects the following circuits:
- Engine Controls
- Ignition System

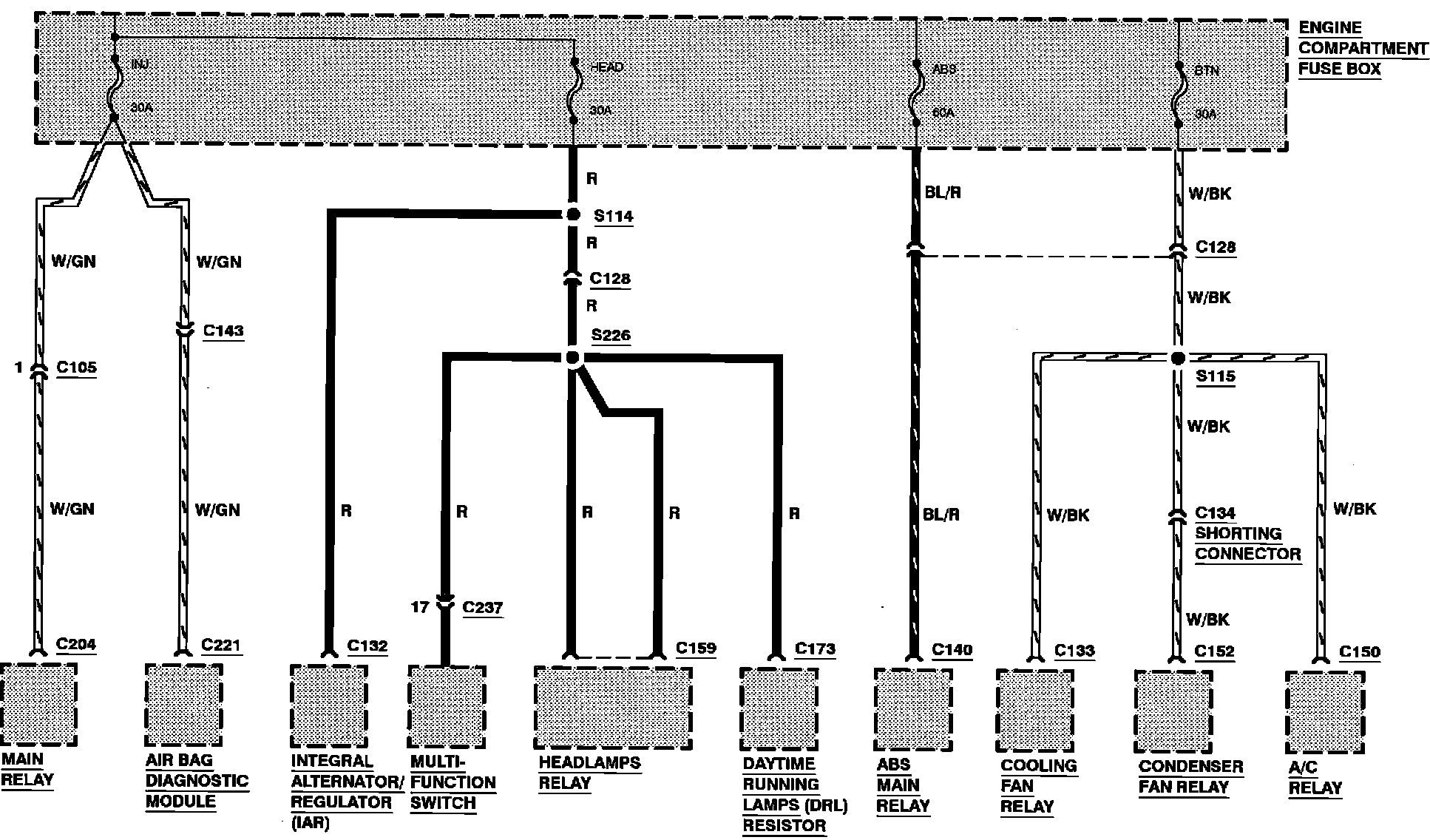

Power Distribution:

Power Distribution:
