Fuel Delivery and Air Induction: Locations

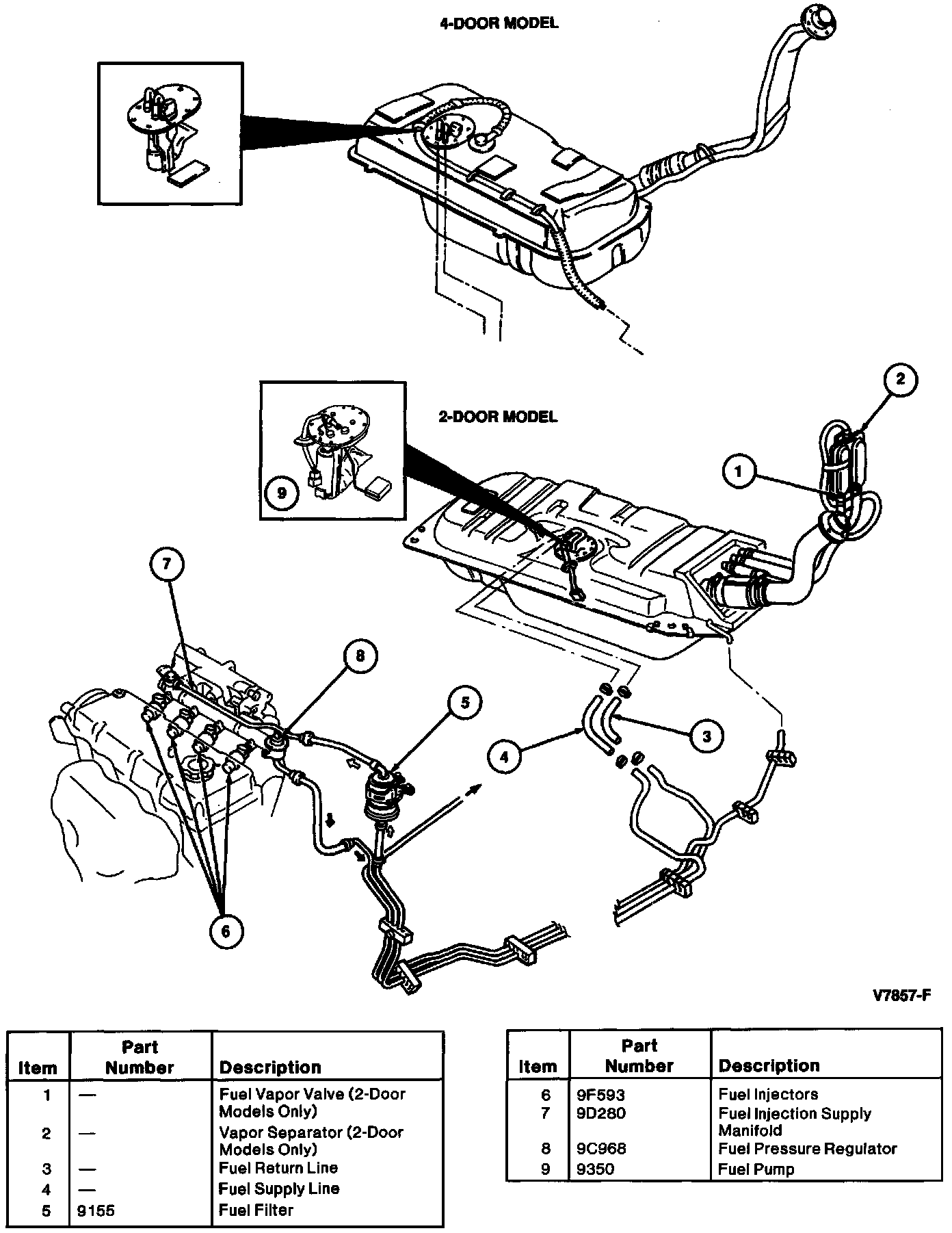

Fuel System Components:
FUEL DELIVERY SYSTEM

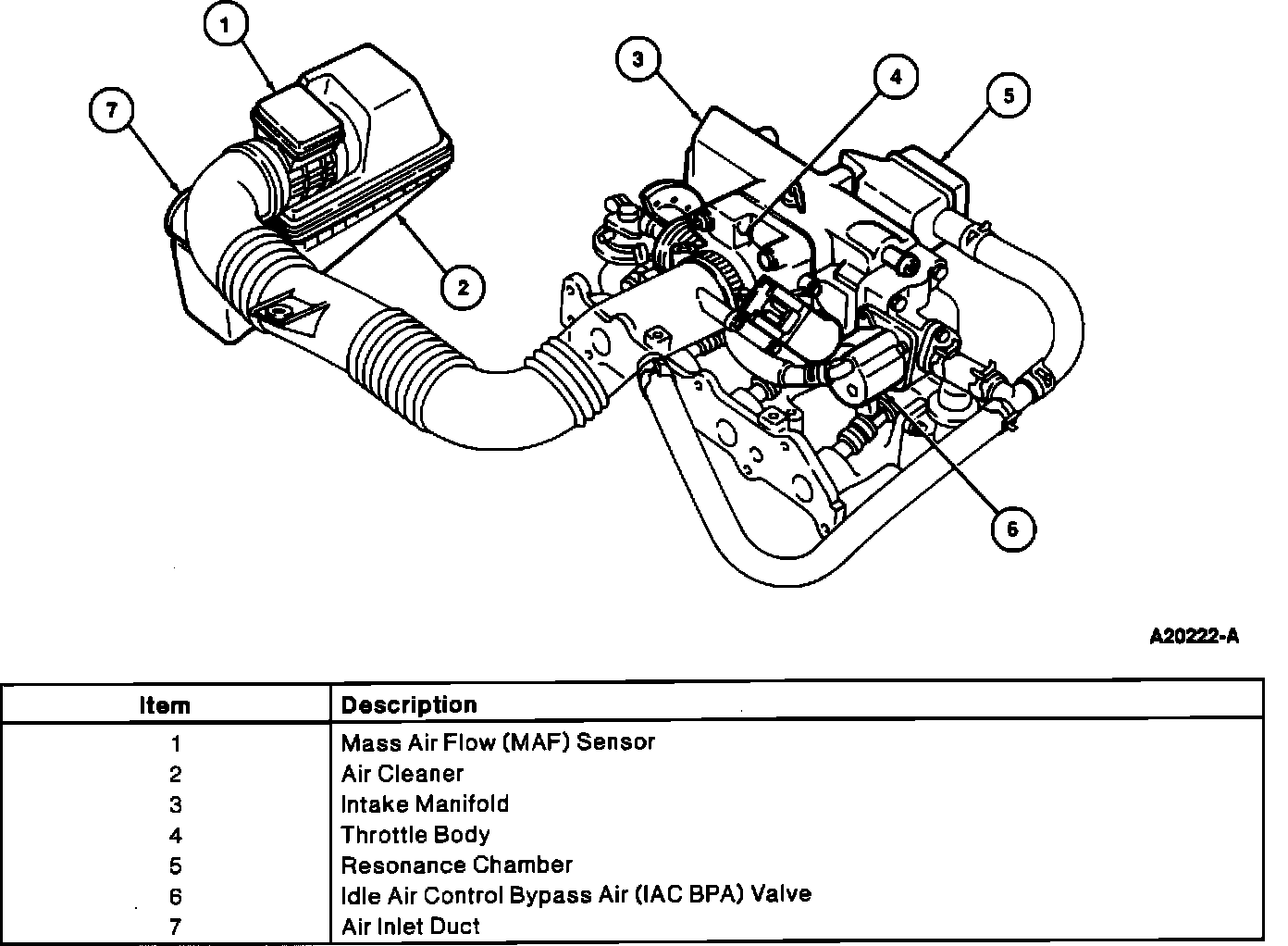

Air Induction System:
AIR INDUCTION SYSTEM
