Escort L4-110 1.8L DOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Lighting and Horns
>>
Backup Lamp Switch
Backup Lamp Switch

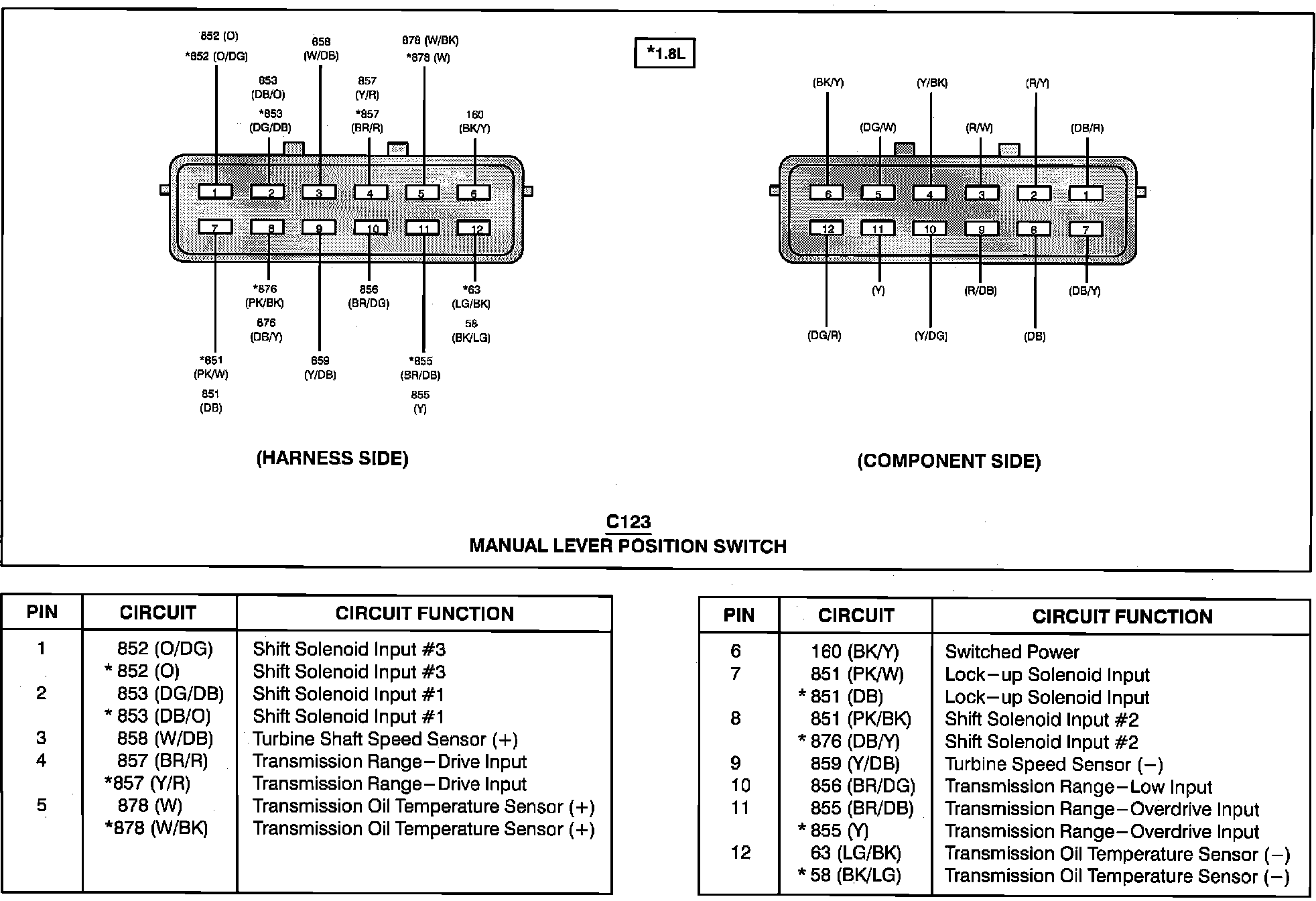

Manual Lever Position Switch:
Manual Lever Position Switch:
