Hydraulic Control Assembly - Antilock Brakes
Hydraulic Control Assembly - Antilock Brakes

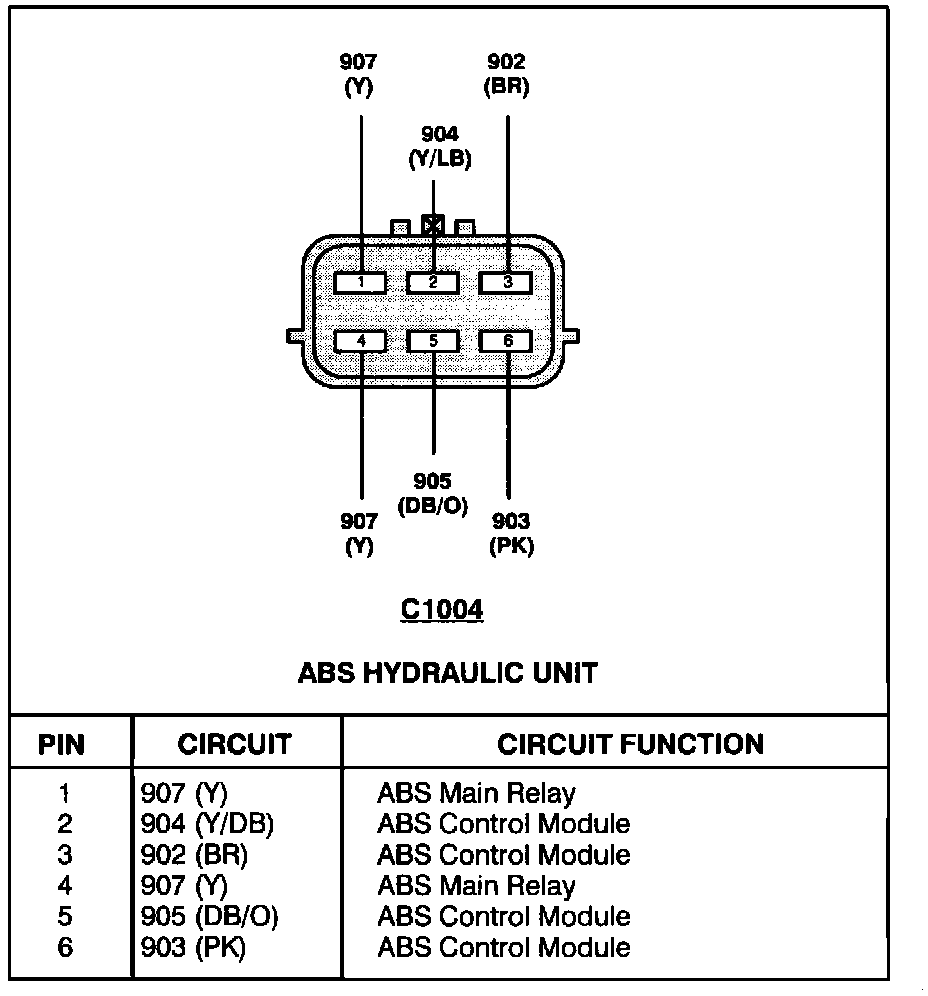

Anti_Lock Brake System Hydraulic Unit:
