Heated Oxygen Sensor(s) (HO2S) Locations

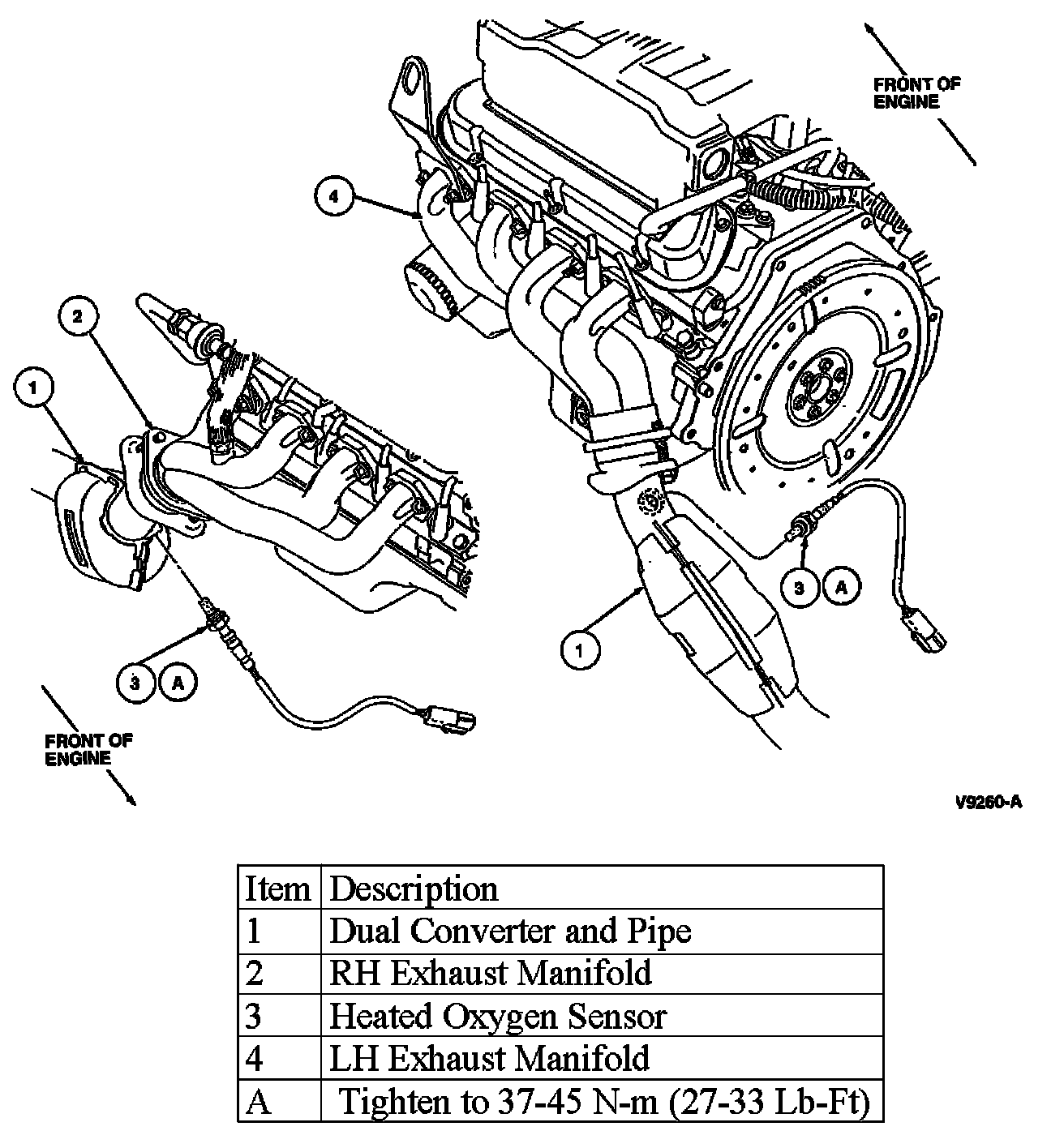

Forward Of Catalytic Converters:

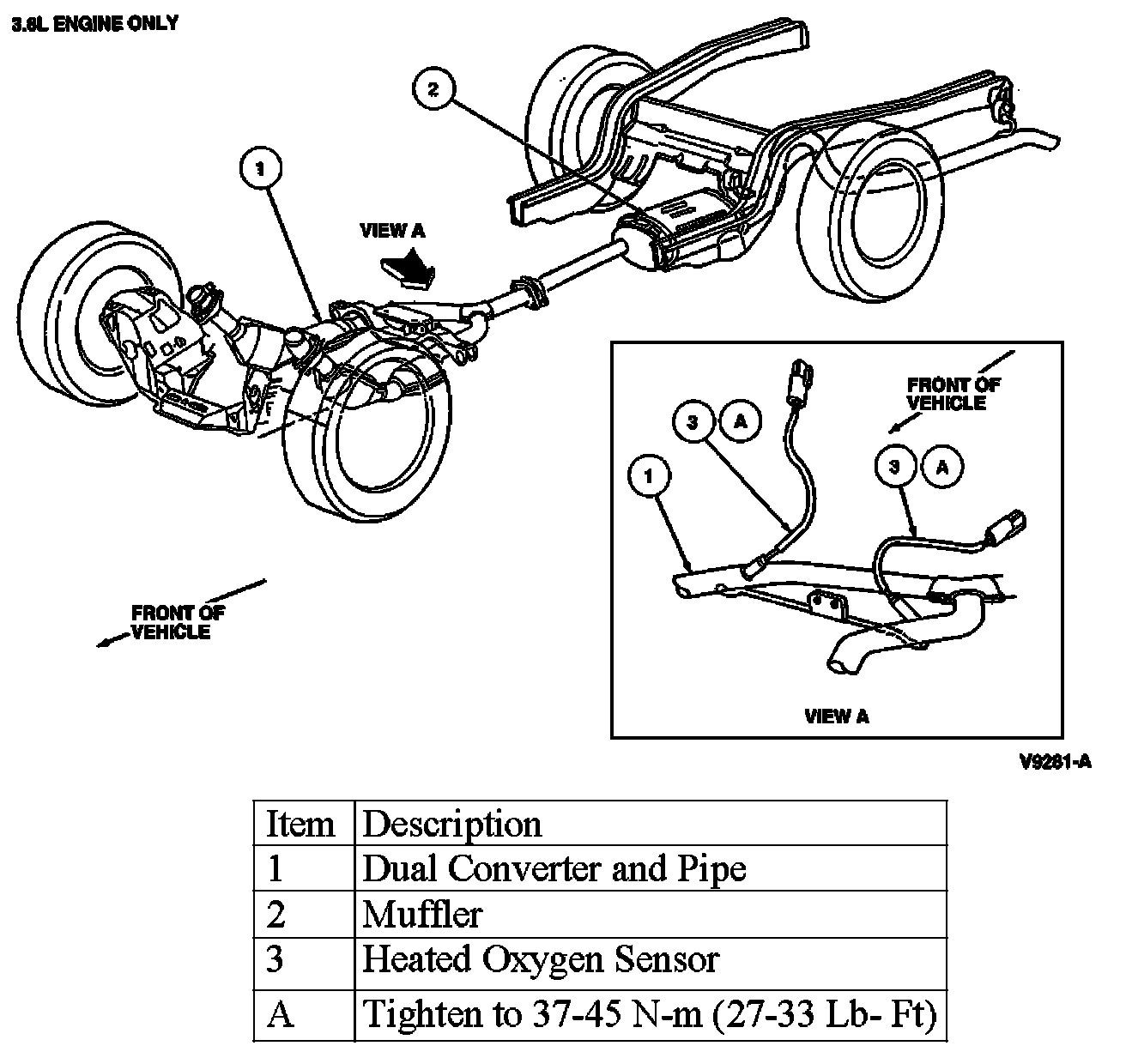

Rearward Of Catalytic Converters:

One Heated Oxygen Sensor (HO2S) is located in each exhaust manifold, and two Heated Oxygen Sensors are located in the dual converter Y pipe.
