With A/C
With A/C

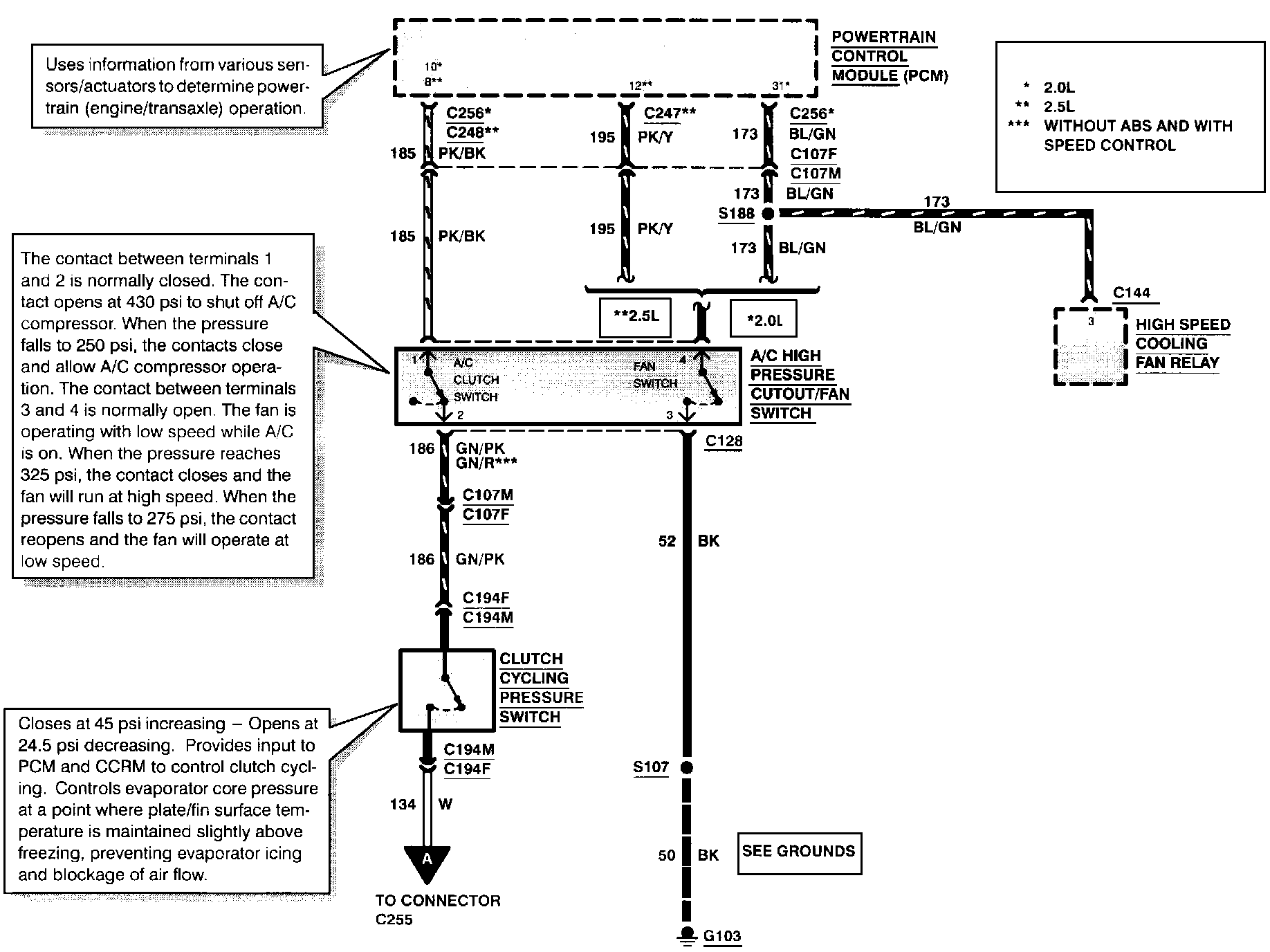

Air Conditioner/Heater (Part 1 Of 4):

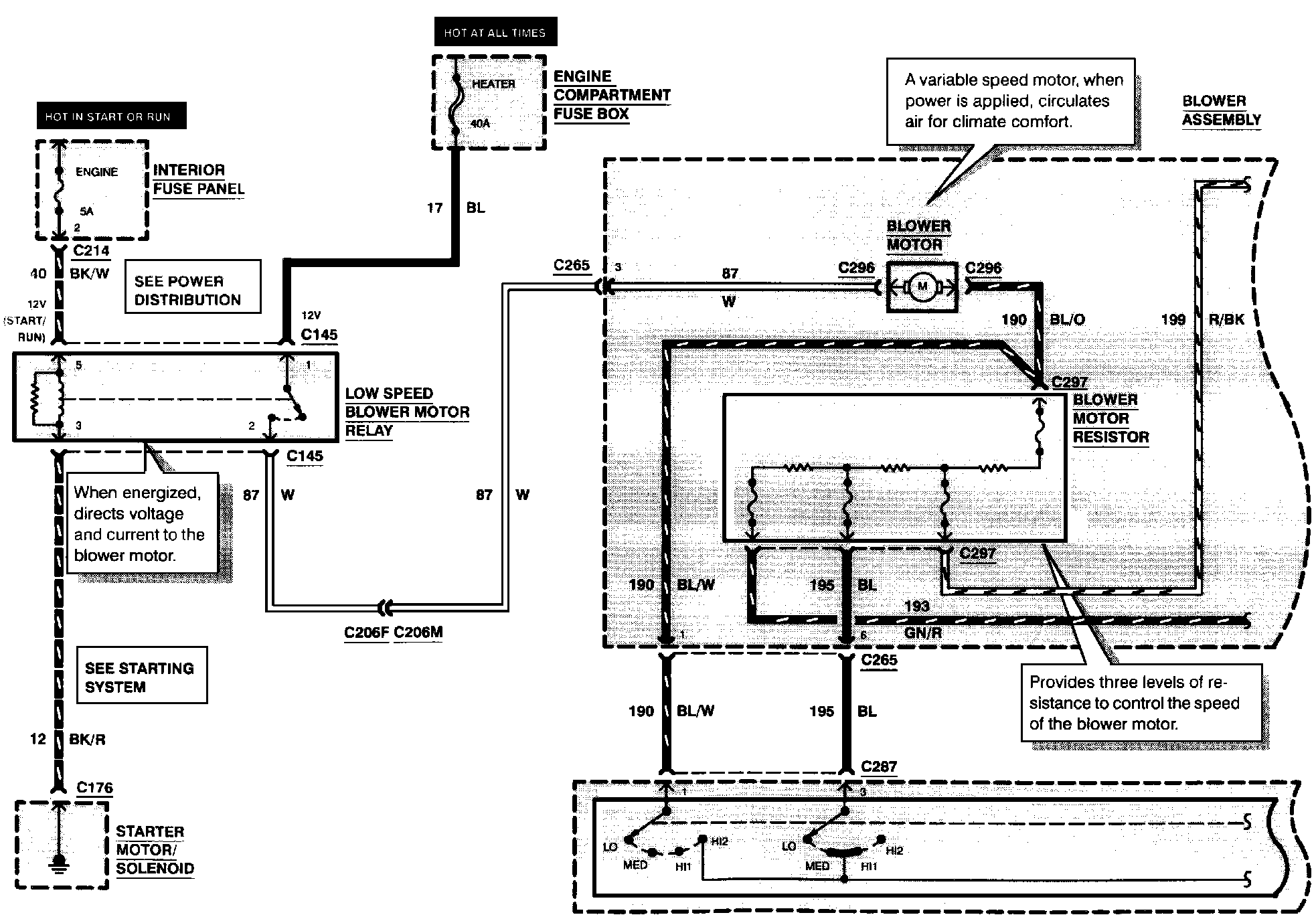

Air Conditioner/Heater (Part 2 Of 4):

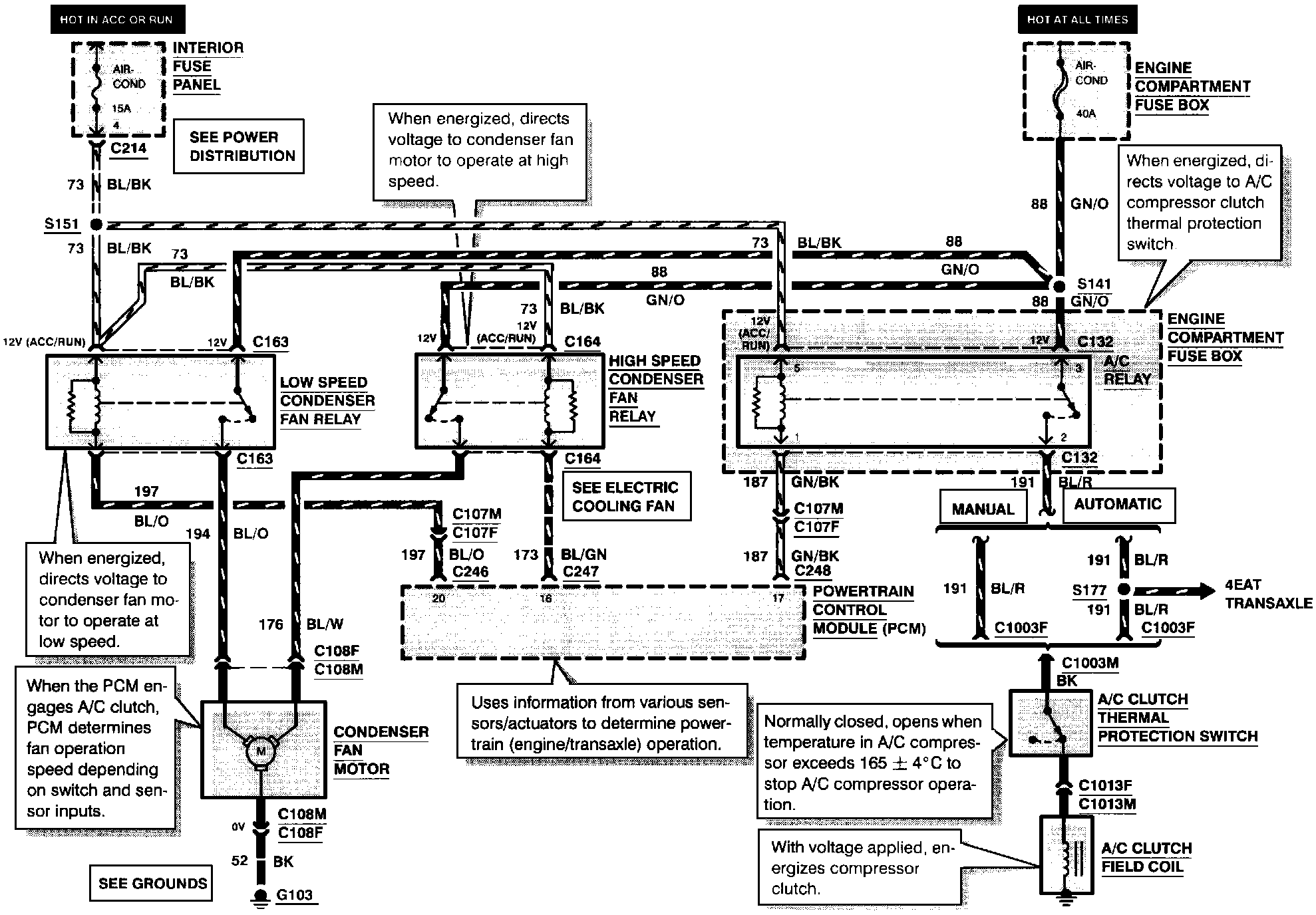

Air Conditioner/Heater (Part 3 Of 4):
Air Conditioner/Heater (Part 4 Of 4):
