With Automatic Transmission
With Automatic Transmission

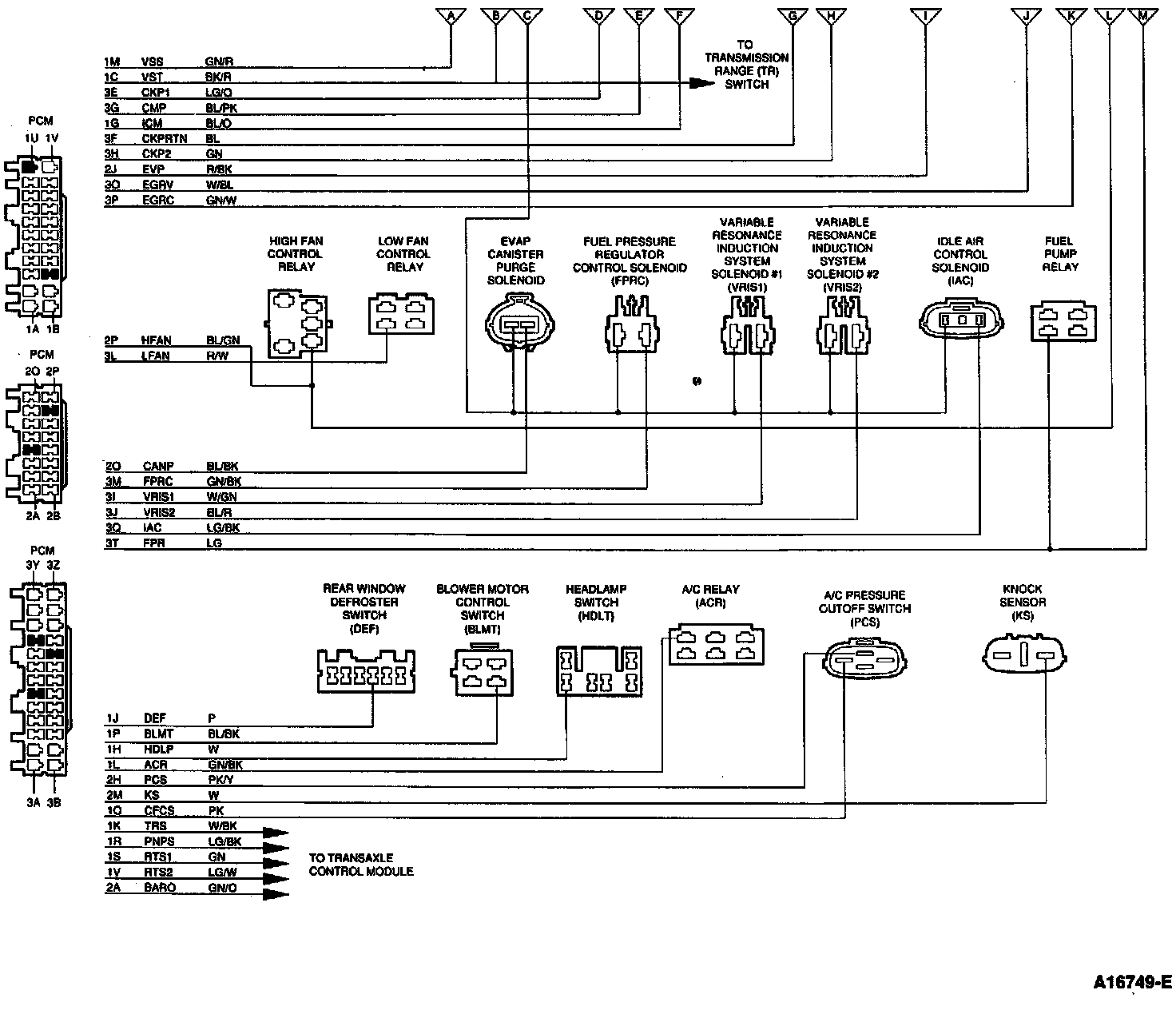

Engine Electrical Schematic:

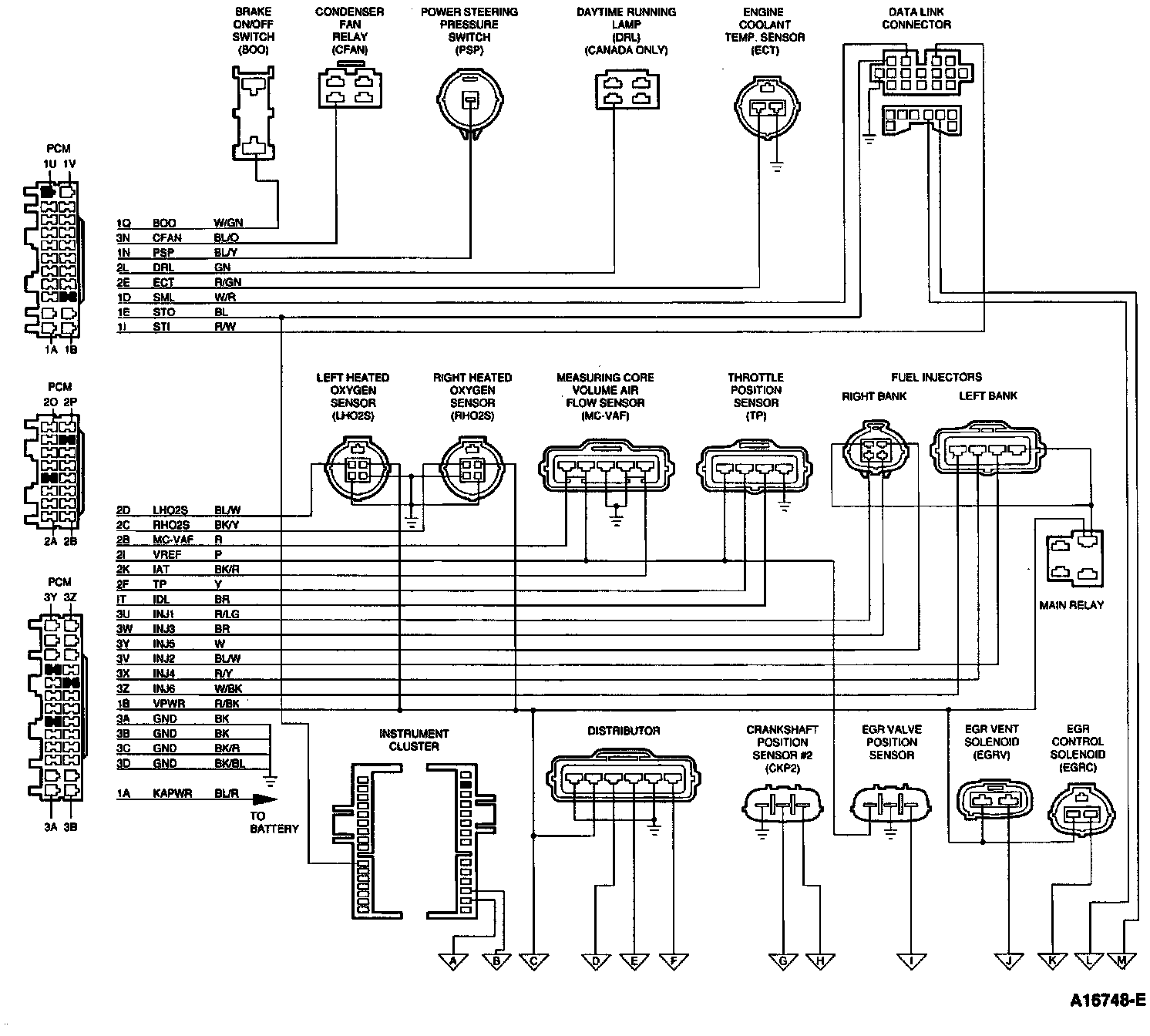

Engine Electrical Schematic:
