D - Hydraulic Control System With Time Lag Test
D - Hydraulic Control System With Time Lag Test

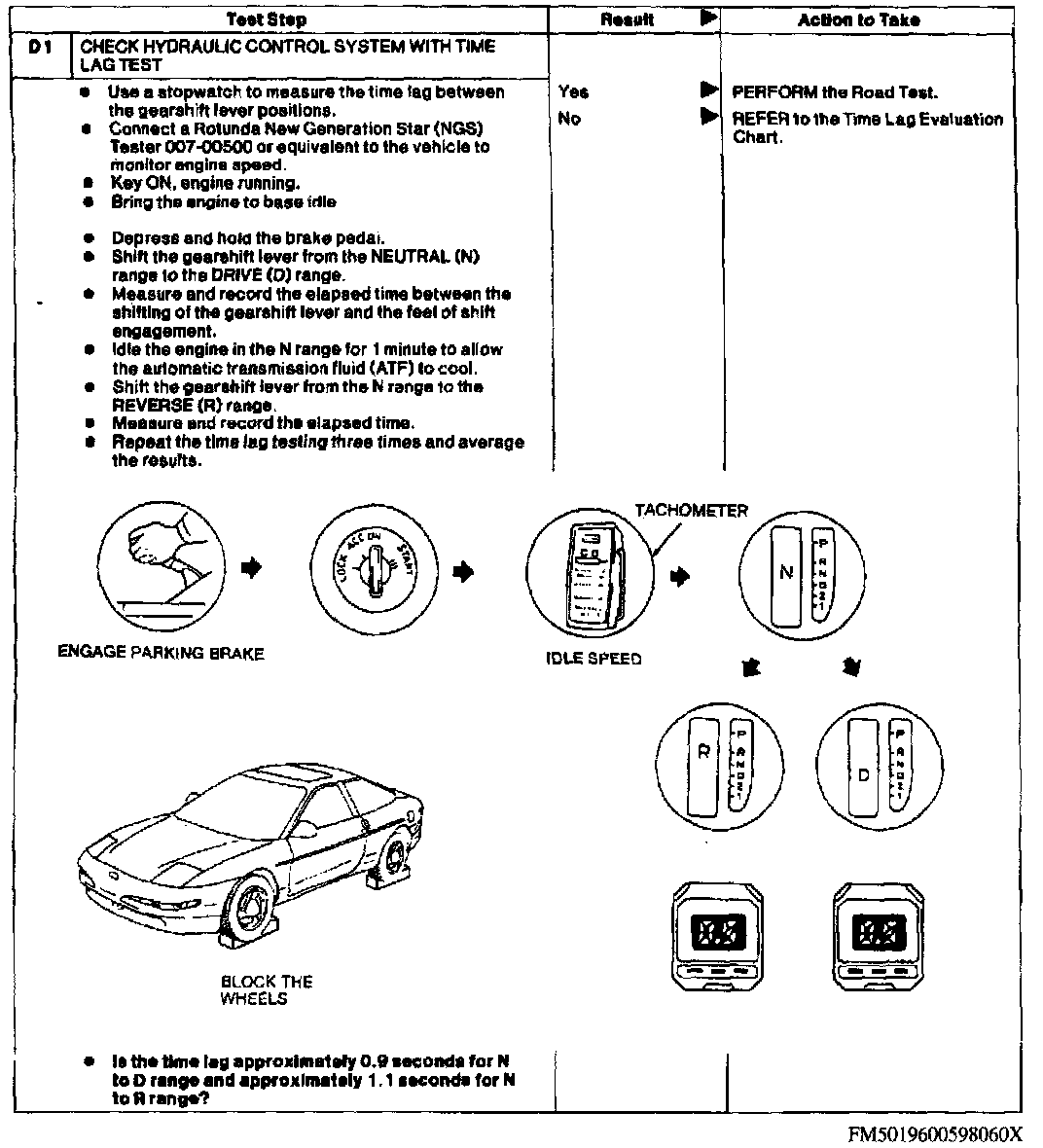

D1 - Hydraulic Control System With Time Lag Test:
Time Lag Evaluation Chart:
