Home
>>
Ford
>>
1996
>>
Escort L4-116 1.9L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Seat Belt Motor
>>
Right
Right

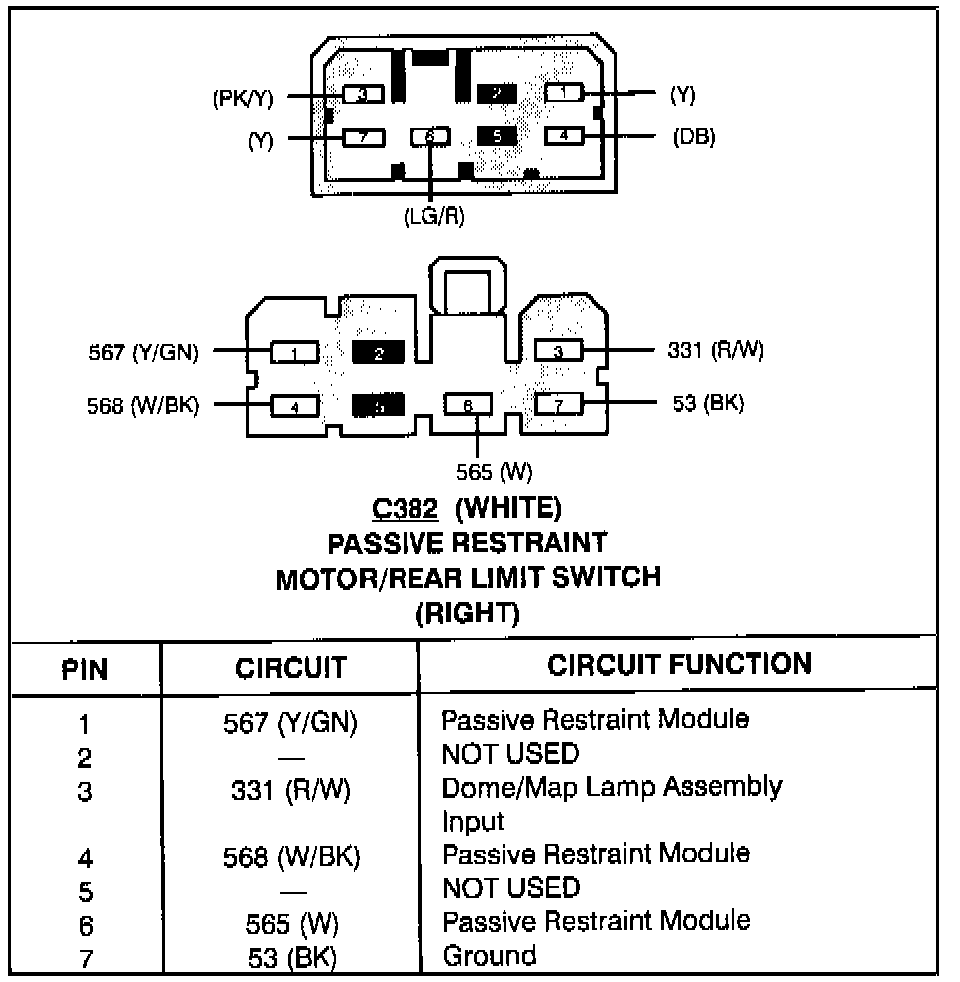

Passive Restraint Motor/Rear Limit Switch (Right):
