Amplifier, Sound System
>>
Speaker Subwoofer Amplifier
>>
Rear
Rear

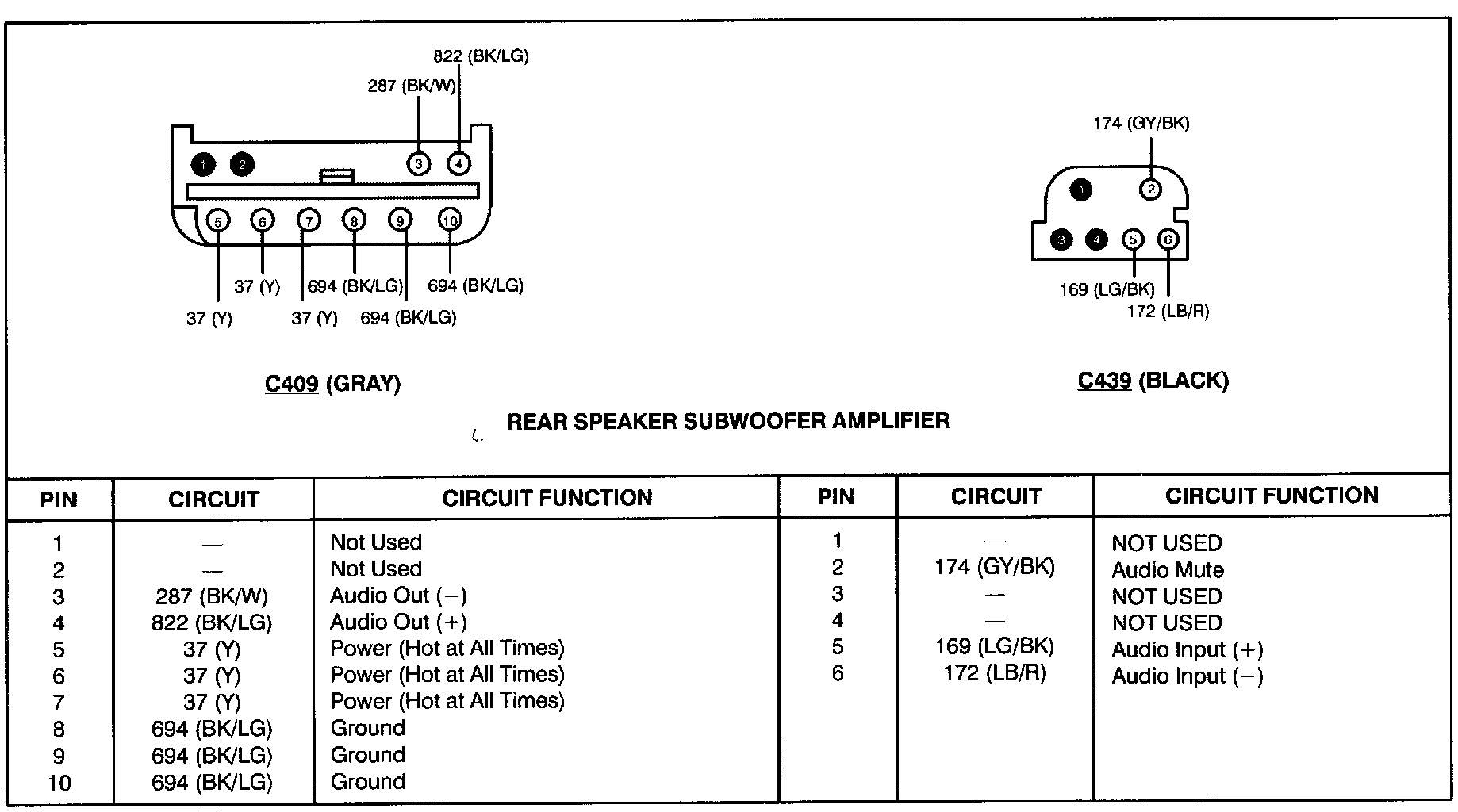

Rear Speaker Subwoofer Amplifier:
