Valves

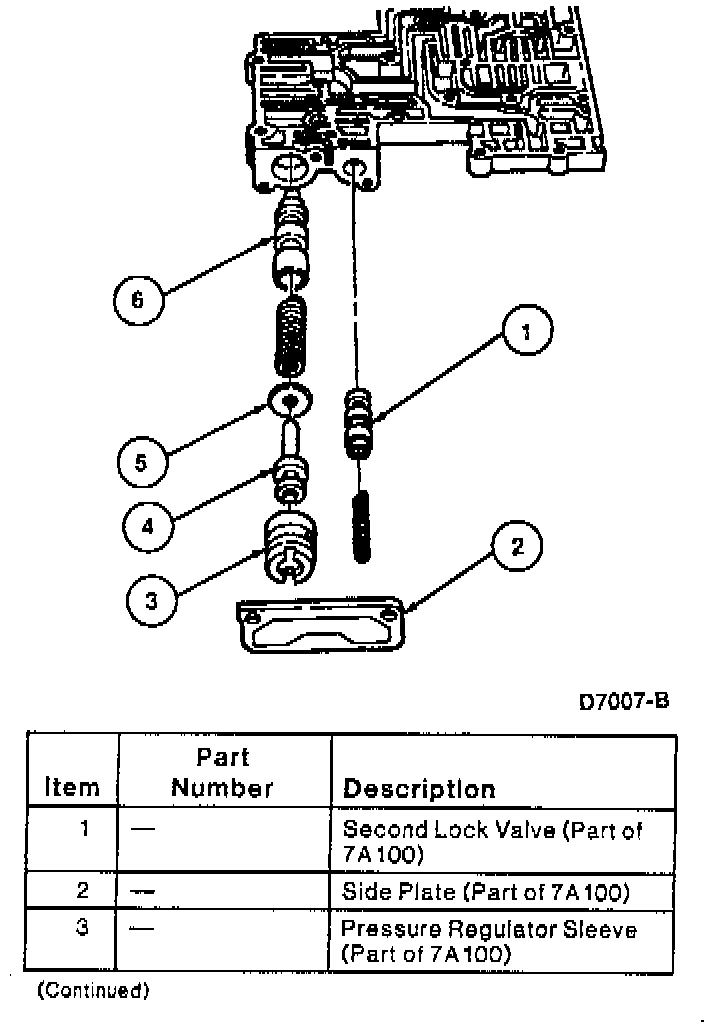

Second Lock Valve And Pressure Regulator Valve. Part 1 Of 2:

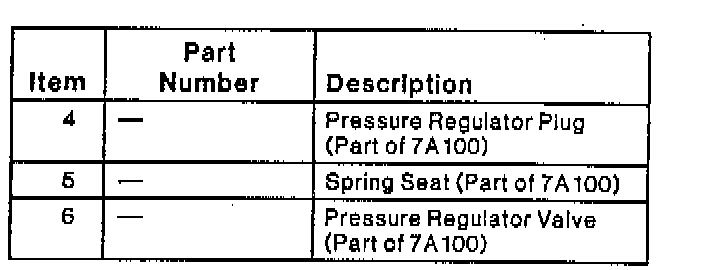

Second Lock Valve And Pressure Regulator Valve. Part 2 Of 2:

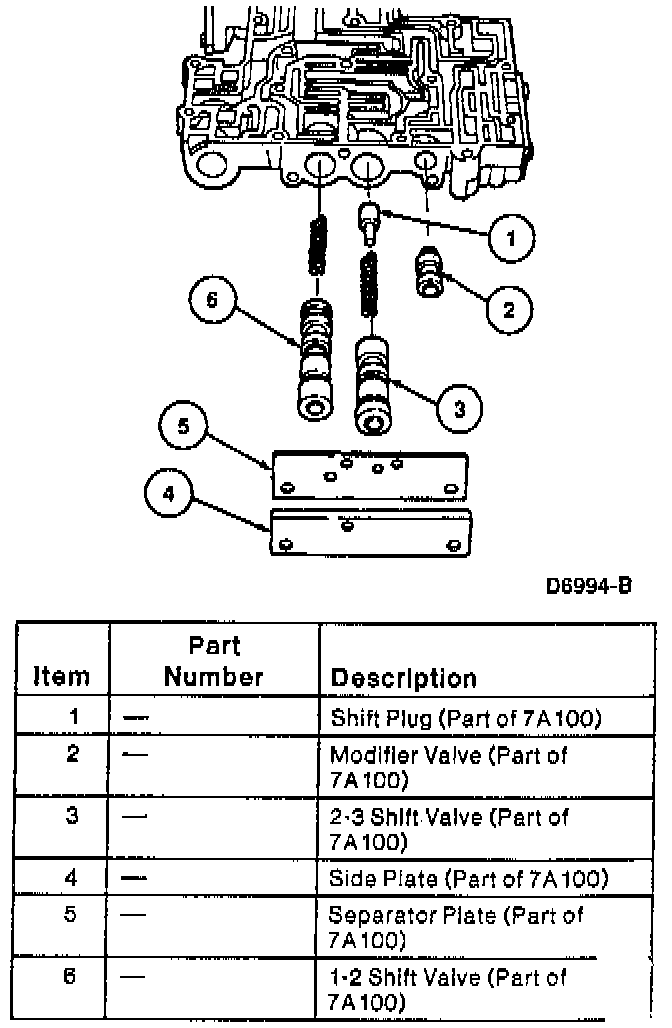

1-2 Shift, 2-3 Shift, And Modifier Valves:

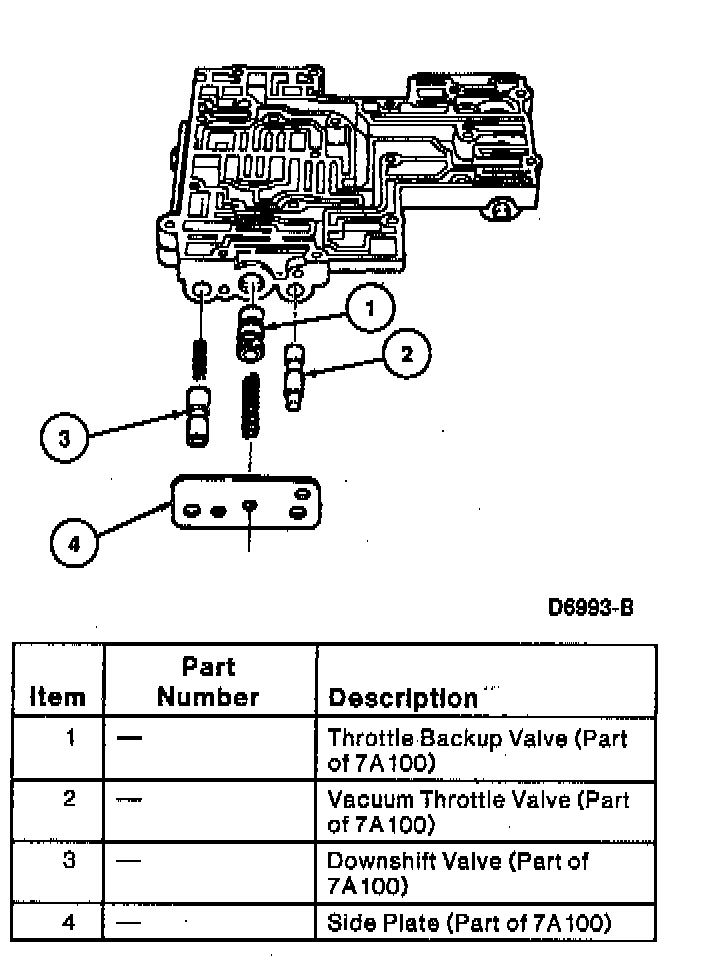

Downshift, Throttle Backup, And Vacuum Throttle Valves:
