Left

Register:

INSTRUMENT PANEL REGISTERS - LH
The image shows the locations of the A/C registers.




REMOVAL

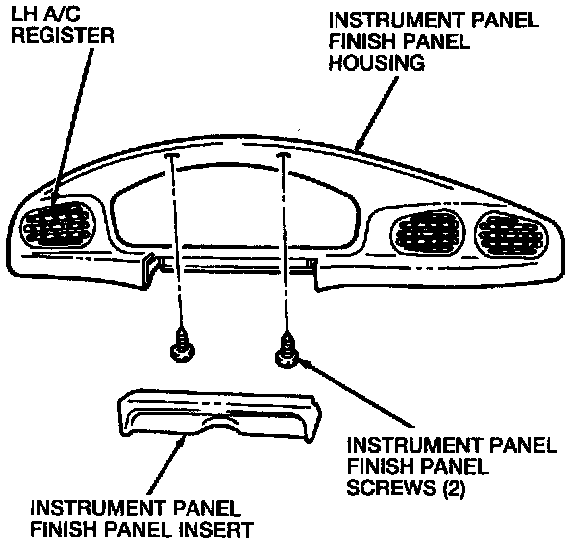

1. Remove the two instrument panel finish panel screws.
2. Remove the instrument panel finish panel insert.
3. Carefully pry the instrument panel finish panel away from the instrument panel.

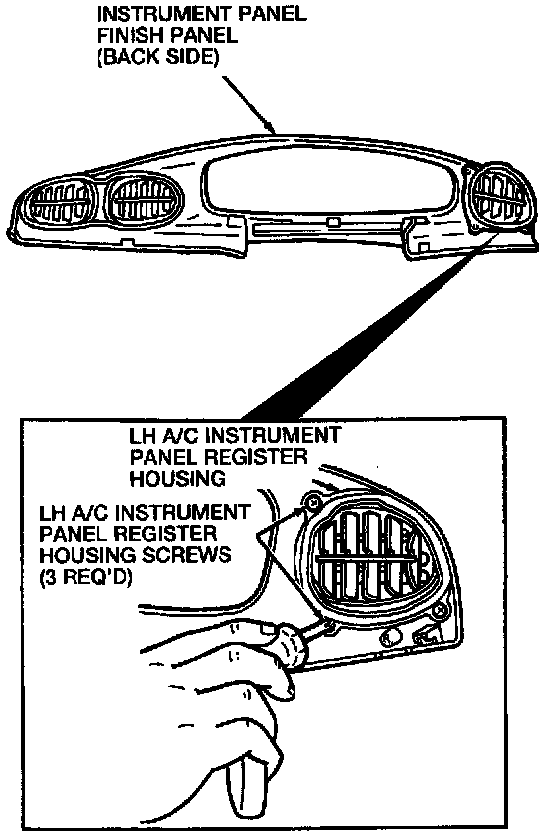

4. Remove three LH A/C instrument panel register housing screws from the back of the instrument panel finish panel. Remove the LH A/C instrument panel register housing and LH A/C register.
5. Use a screwdriver and pry on the tab on the LH A/C register, and remove the LH A/C register from the LH A/C instrument panel register housing.

INSTALLATION
To install, reverse the removal procedure.
