Blower Motor Switch: Service and Repair

REMOVAL
1. Disconnect the battery ground cable.
2. Remove the shift console panel.
3. Remove the three climate control assembly screws.
4. Disconnect the climate control electrical connector.
5. Depress the tabs on the air door shafts and remove the three climate control cable ends. Pull the climate control assembly from the vehicle.

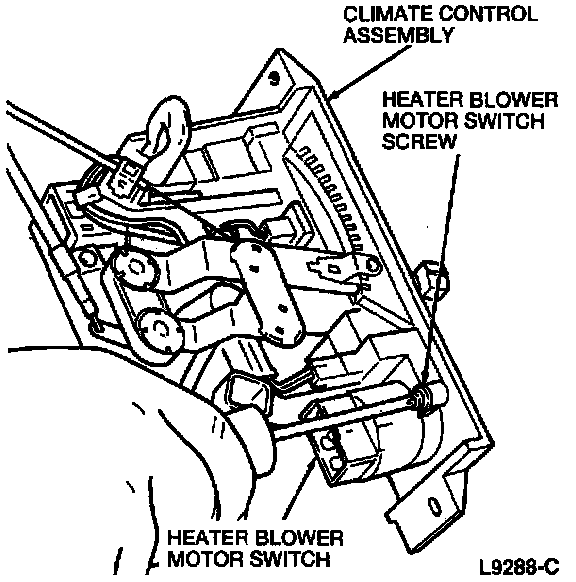

6. Remove the heater blower motor switch screw and the heater blower motor switch from the climate control assembly.

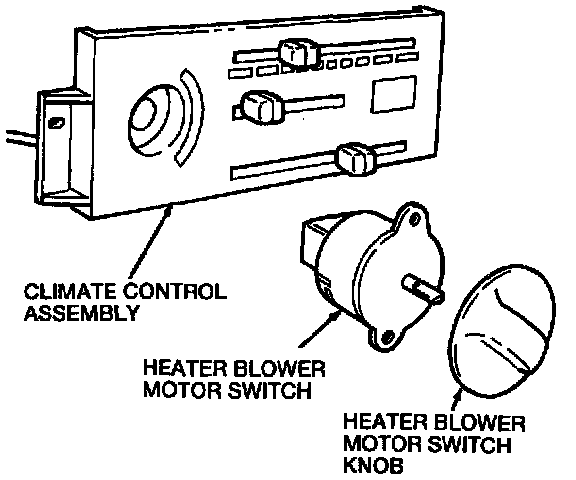

7. Pull the heater blower motor switch knob from the heater blower motor switch shaft.

INSTALLATION
To install, reverse the removal procedure.
