Compressor Clutch Coil: Service and Repair

REMOVAL
1. Remove the A/C clutch and A/C compressor clutch pulley.

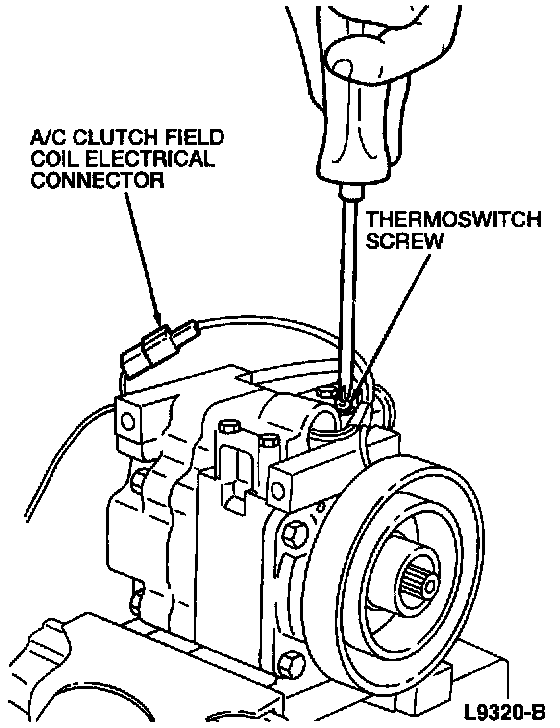

2. Place the A/C compressor in a vise and remove the thermoswitch screw from the A/C compressor. Disconnect the A/C clutch field coil electrical connector.

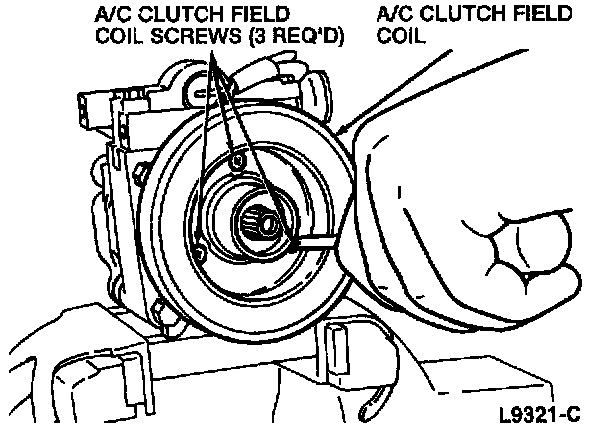

3. Remove the three A/C clutch field coil screws.
4. Remove the A/C compressor clutch field coil.

INSTALLATION
To install, reverse the removal procedure.
