Compressor Clutch: Service and Repair

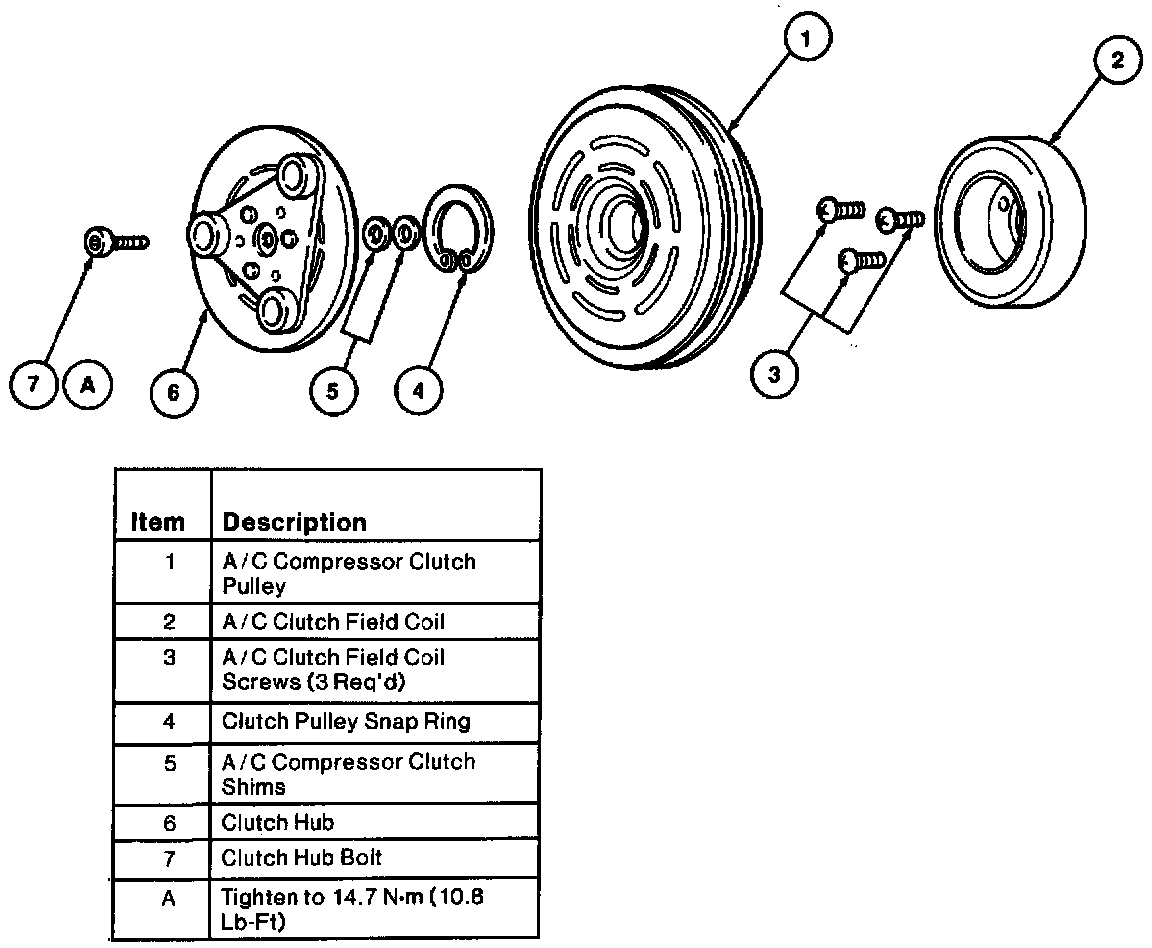

REMOVAL




1. Remove the A/C compressor from the vehicle.

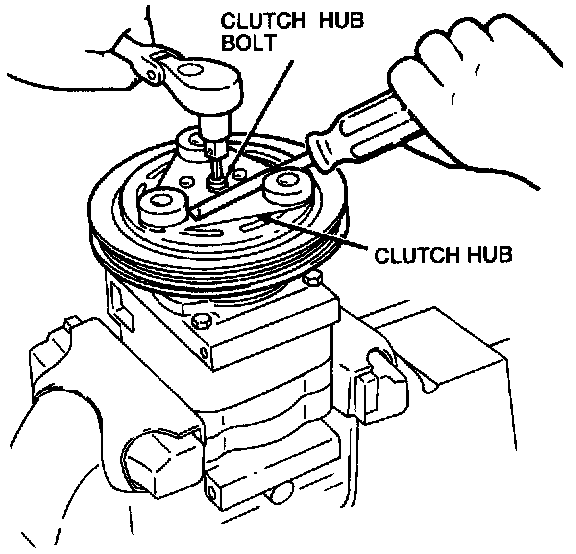

2. Place A/C compressor in a vise and remove the clutch hub bolt.

NOTE: Use a suitable tool to hold the clutch hub while removing the clutch hub bolt.




3. Remove the clutch hub.

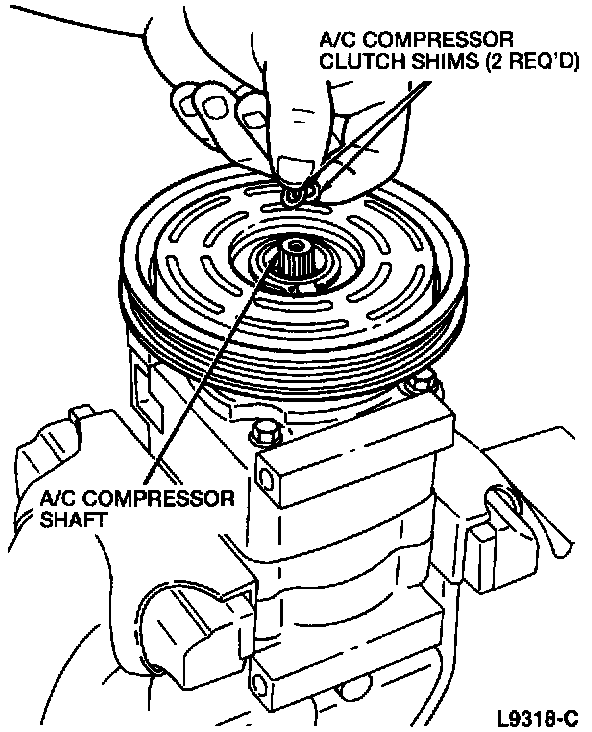

4. Remove the two A/C compressor clutch shims from the A/C compressor shaft.

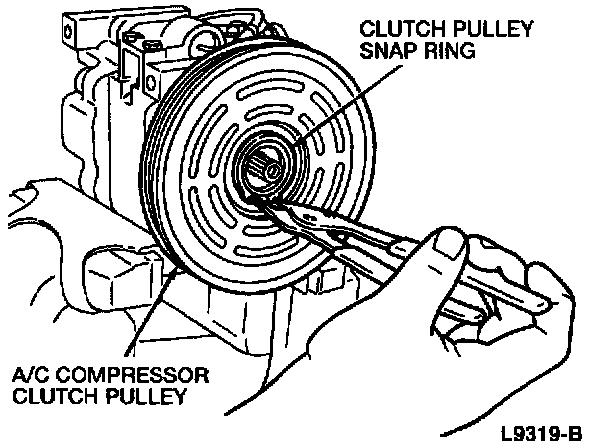

5. Remove the clutch pulley snap ring.
6. Lift the A/C compressor clutch pulley from the A/C compressor.

INSTALLATION
To install, reverse the removal procedure. Tighten the clutch hub bolt to 14.7 N.m (10.8 lb-ft).
