Evaporator Temperature Sensor / Switch: Service and Repair
Evaporator Temperature Control ThermostatREMOVAL
1. Remove the A/C evaporator housing assembly.

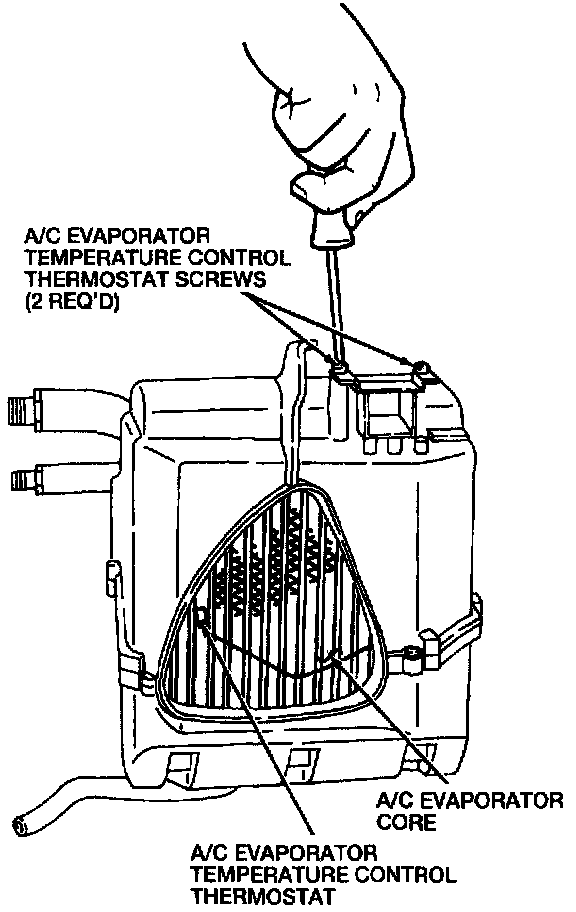

2 Remove the two A/C evaporator temperature control thermostat screws and the A/C evaporator temperature control thermostat from the A/C evaporator upper case.
NOTE: Note the position of the A/C evaporator temperature control thermostat capillary tube prior to removal to aid in installation.
3. Carefully pull the A/C evaporator temperature control thermostat end from the A/C evaporator core.
INSTALLATION
To install, reverse the removal procedure. Test the system for proper operation.
NOTE: Ensure that the A/C evaporator temperature control thermostat capillary tube is installed correctly in the A/C evaporator core as noted during removal.
