Heater Core: Service and Repair

REMOVAL
1. Remove the heater core case.

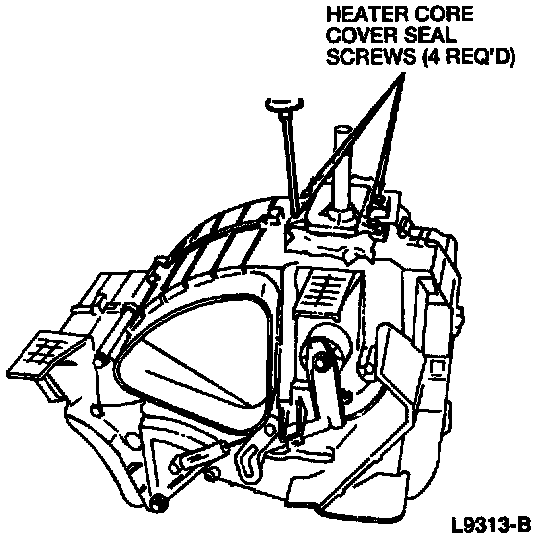

2. Remove four heater core cover seal screws.

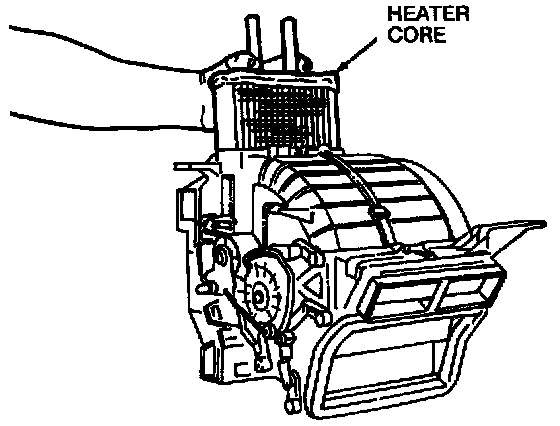

Fig. 11 Heater Core Replacement:

3. Remove the heater core cover seal.




4. Remove the heater core.

INSTALLATION
To install, reverse the removal procedure.
