Refrigerant Pressure Sensor / Switch: Service and Repair

REMOVAL




1. Discharge the refrigerant system.
2. Disconnect the A/C pressure cut-off switch electrical connector.

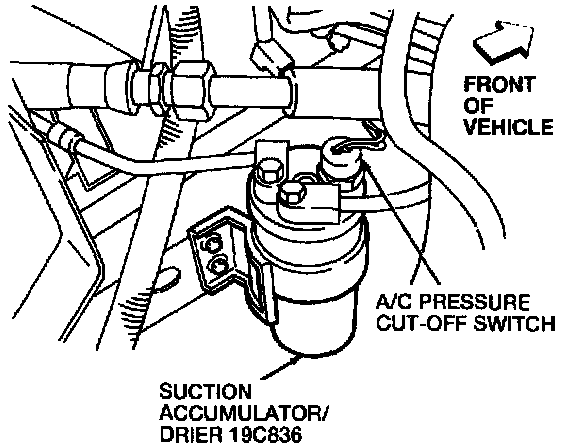

3. Remove the A/C pressure cut-off switch.
4. Remove and discard the O-ring.

INSTALLATION
To install, reverse the removal procedure. Test the system for proper operation.
