Lighting and Horns: Service and Repair

REMOVAL

NOTE: All the exterior miniature bulbs can be removed using this procedure except when a unique procedure exists:

1. Remove the lamp if necessary to access the miniature bulb.

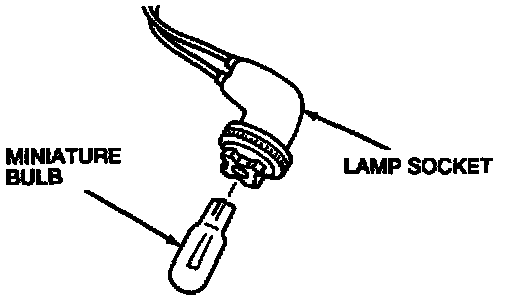

Press In and Rotate To Remove:

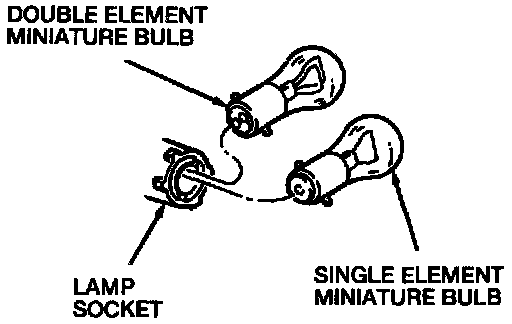

Pull Straight Out To Remove:

2. Remove the miniature bulb from the lamp socket. This can be done one of two ways depending on the type of miniature bulb used for each application.


INSTALLATION
1. To install, reverse the removal procedure.
